Diesel Engine

The PCV system on diesel engines consists of a hose to the air intake from the cylinder head cover. All blow-by gases are introduced into the air intake and prevented from entering the atmosphere. There is no testing the PCV system on the diesel engines. Hoses should be kept free of obstructions.

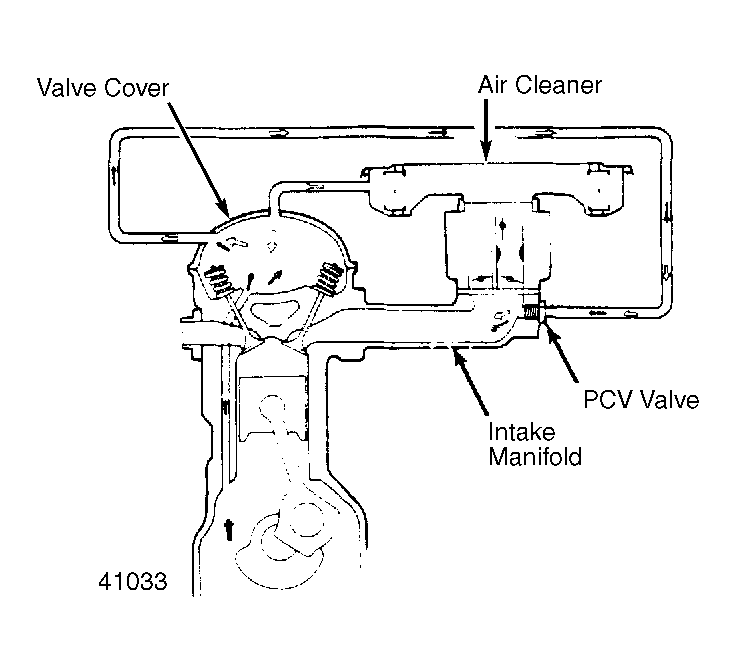

Fig 1: Crankcase Ventilation System (B2000 Pickup)
G41033
