Inspection & Reassembly

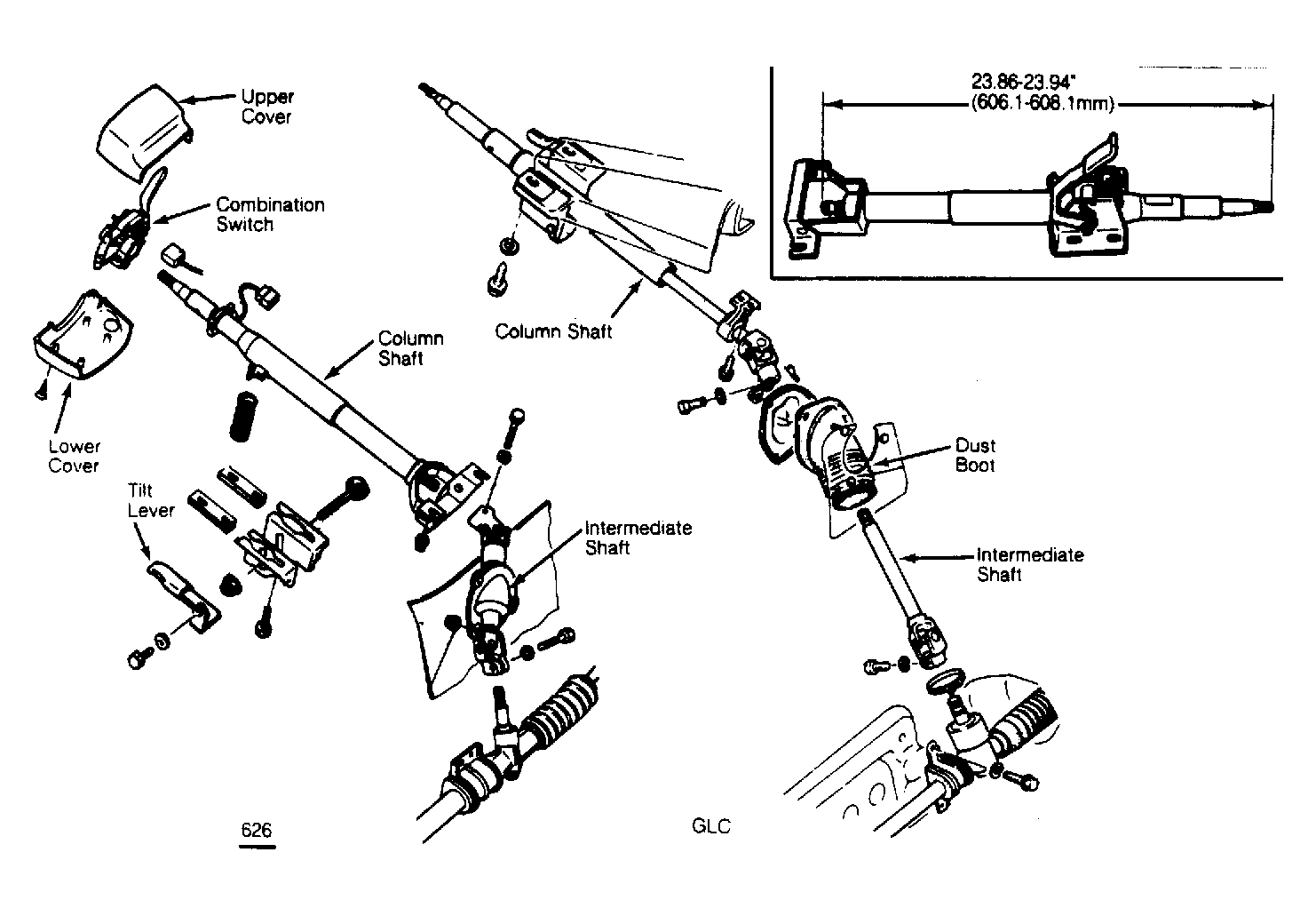

Check all components for damage or wear. Check steering shaft for bends, damage or sheared plastic pins. On 626, check shaft length for 23.86-23.94" (606.1-608.1mm). See inset in Fig. Figure . To reassemble, reverse disassembly procedures. Grease steering shaft, bushings and bearings.
