Idle COMPENSATOR

The idle compensator is a bimetal valve installed in the air cleaner. The bimetal valve opens at approximately 149°F (65°C) to supply additional air to intake manifold to lean the air/fuel mixture for more complete burning.

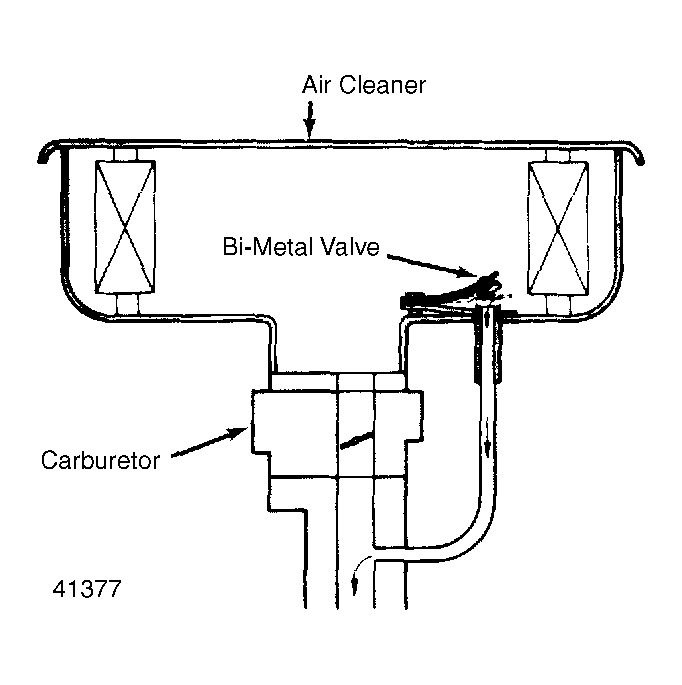

Fig 1: Idle Compensator
G41377
