EGR Solenoid Valve

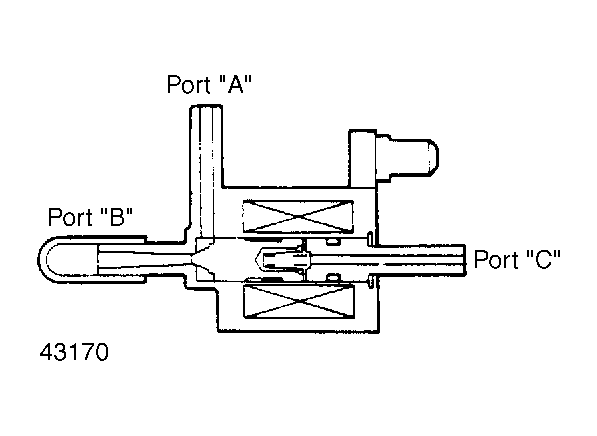

- The EGR solenoid valve is located on the firewall behind the carburetor. Remove rubber plug from port "B" and disconnect vacuum hose leading to part "A". See Fig 1 . Blow through hose; air should be expelled from port "B".
- Disconnect vacuum hose from port "C". Unplug electrical connector, apply 12V to Yellow/Black terminal and ground Yellow/Green terminal. Blow air through port "A"; air should be expelled out port "C".
