Vacuum Sensor

  1. Start engine and run at idle. Connect 1 voltmeter lead to Blue wire terminal of sensor connector and other lead to ground.
  2. Voltmeter should read approximately 1 volt. Disconnect vacuum hose from sensor. Reading should change to 4 volts. See Fig 1 .

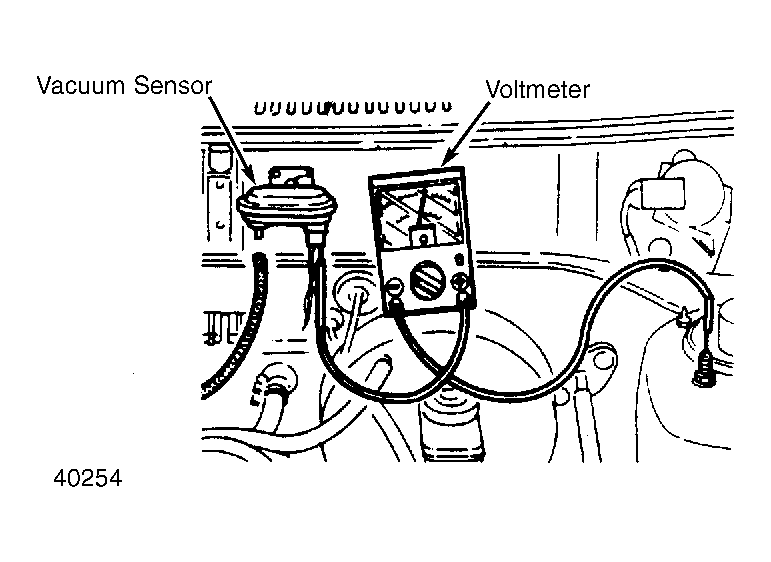

Fig 1: Testing Vacuum Sensor Engine should be idling at operating temperature.
G40254
