Fuel Evaporation System: Description
Fuel evaporation system prevents escape of raw fuel vapors to atmosphere. A fuel tank with integral vapor separator is installed on GLC models.

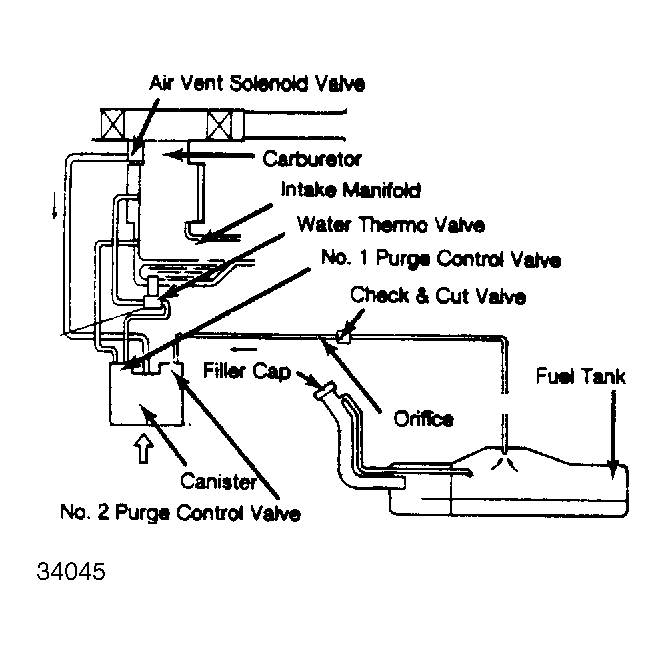

Additional components of system include a check and cut valve, an air vent solenoid valve, 2 purge control valves, a charcoal canister, a fuel filler cap, a water thermo valve, and connecting lines and hoses.
