No. 2 Anti-AFTERBURN Valve

  1. Warm engine and run at idling speed. Disconnect the air hose running from air cleaner to number 2 anti-afterburn valve and make sure that air is not sucked into the air hose at idling speed.
  2. Increase the engine speed more than 3000 RPM and then decrease the speed rapidly. Make sure the air is sucked into the air hose for a few seconds while decelerating. Replace air control valve if it does not operate properly.

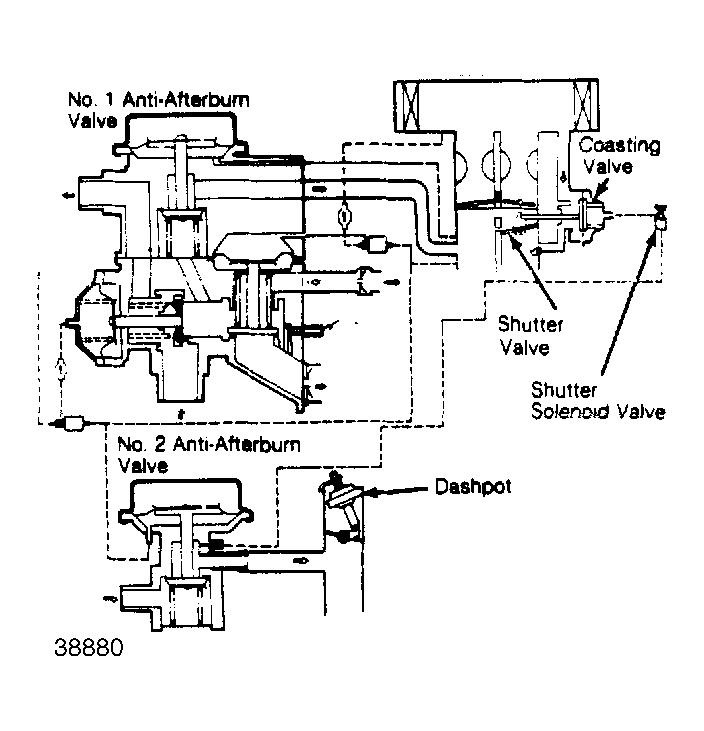

Fig 1: Deceleration Control System
G38880
