Atmospheric Pressure Sensor Test

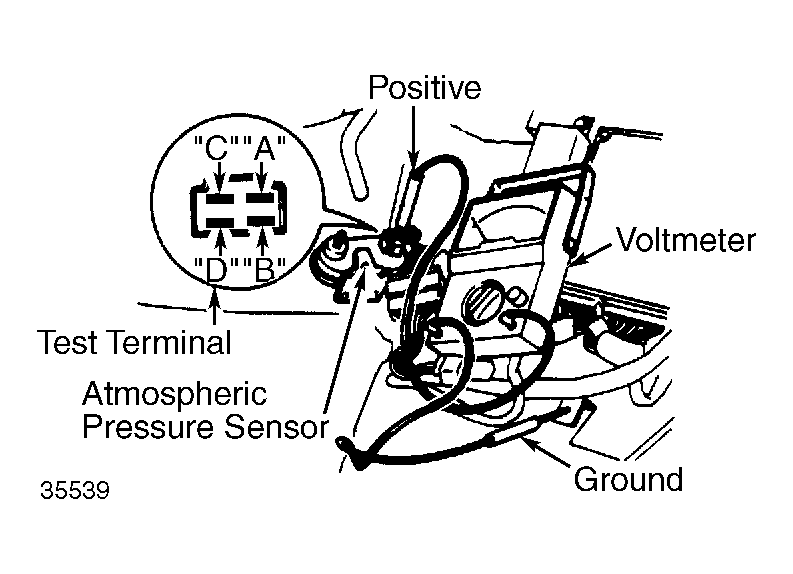

Turn ignition on. Using a voltmeter connected to the atmospheric pressure sensor terminal "D", measure voltage. See Fig 1 . Voltage should be 3.5-4.5 volts at sea level, or 2.5-3.5 volts above an altitude of 6500 ft. (2000 m).
