Rotary Engine Models

  1. Disconnect purge valve-to-oil filler tube hose from purge valve. Start engine and run at idle speed. Place finger over open purge valve port and feel that no vacuum is present. See Fig 1 .
  2. Increase engine speed to 2000 RPM and feel that vacuum is present at purge valve port. If valve does not operate as outlined, replace purge valve.

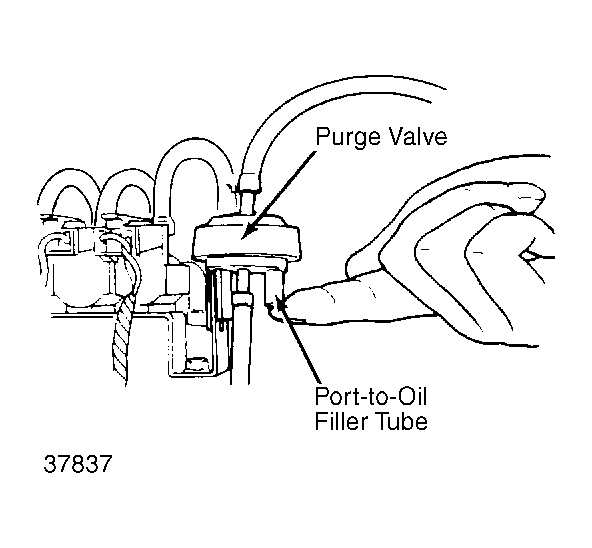

Fig 1: Testing Rotary Engine Purge Valve Check airflow at port leading to oil filler tube.
G37837
