Control Units

CONTROL UNITS LOCATION

Component Location

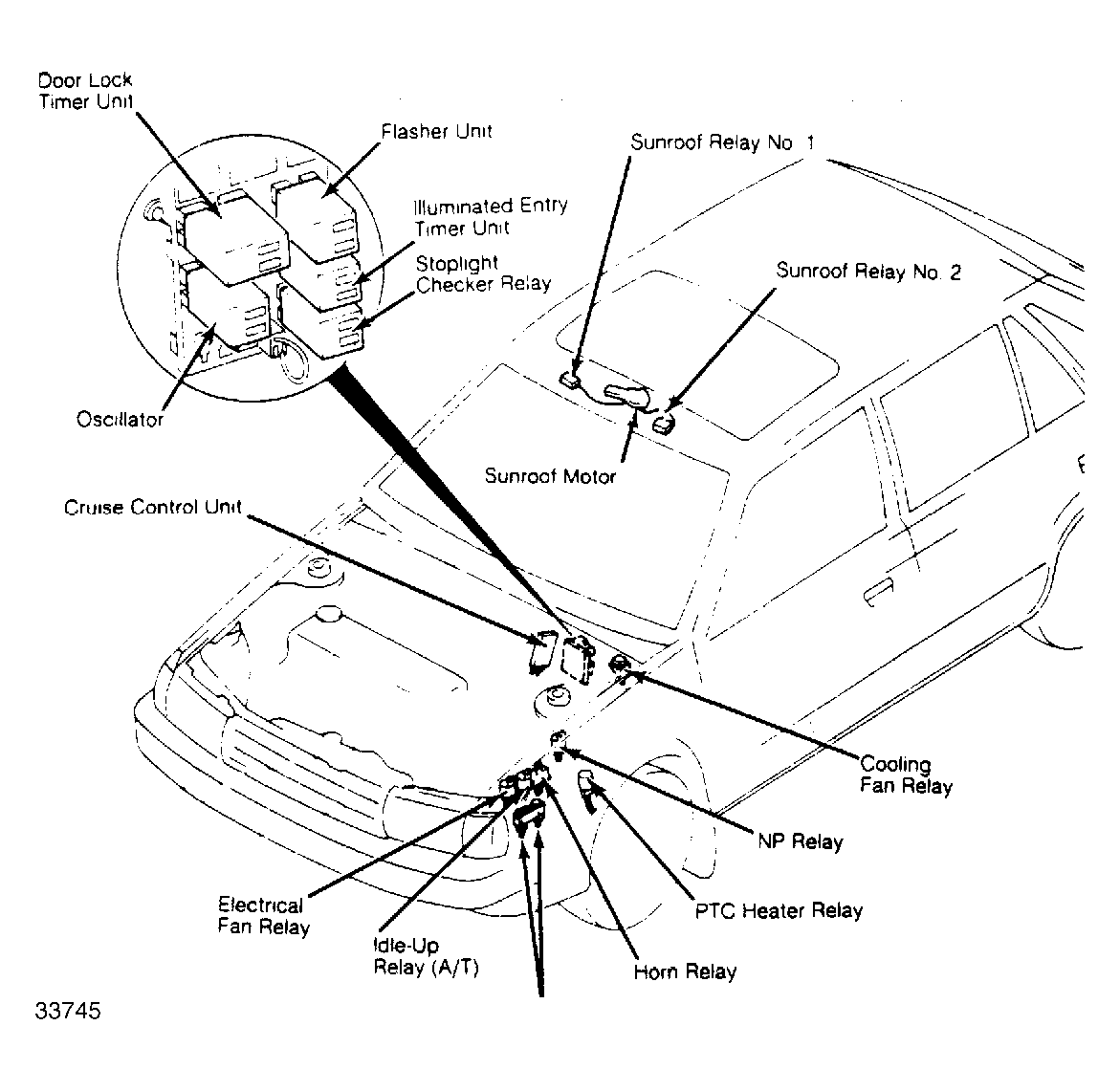

Cruise Control Unit Under left side of instrument panel, near instrument panel relay box. See Figure .

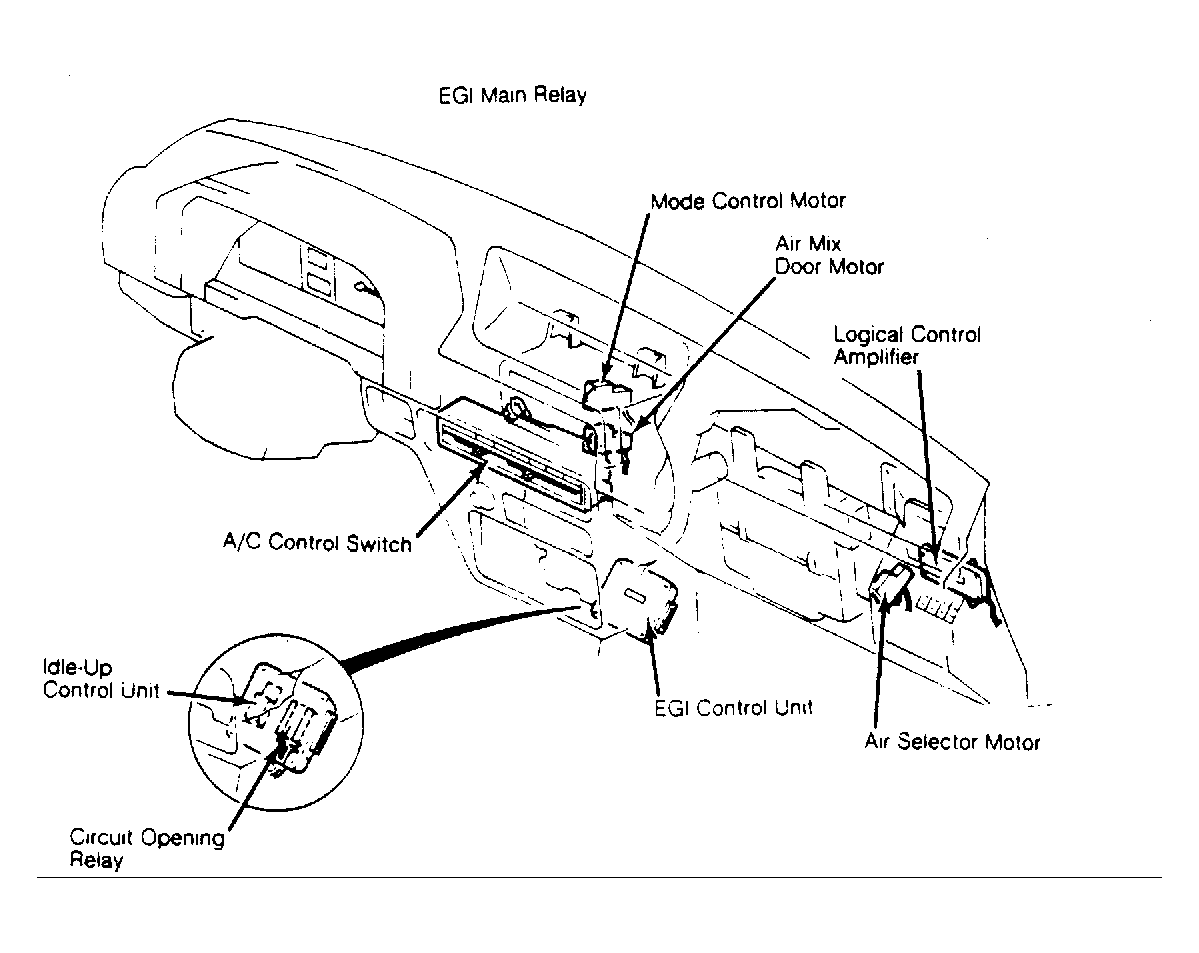

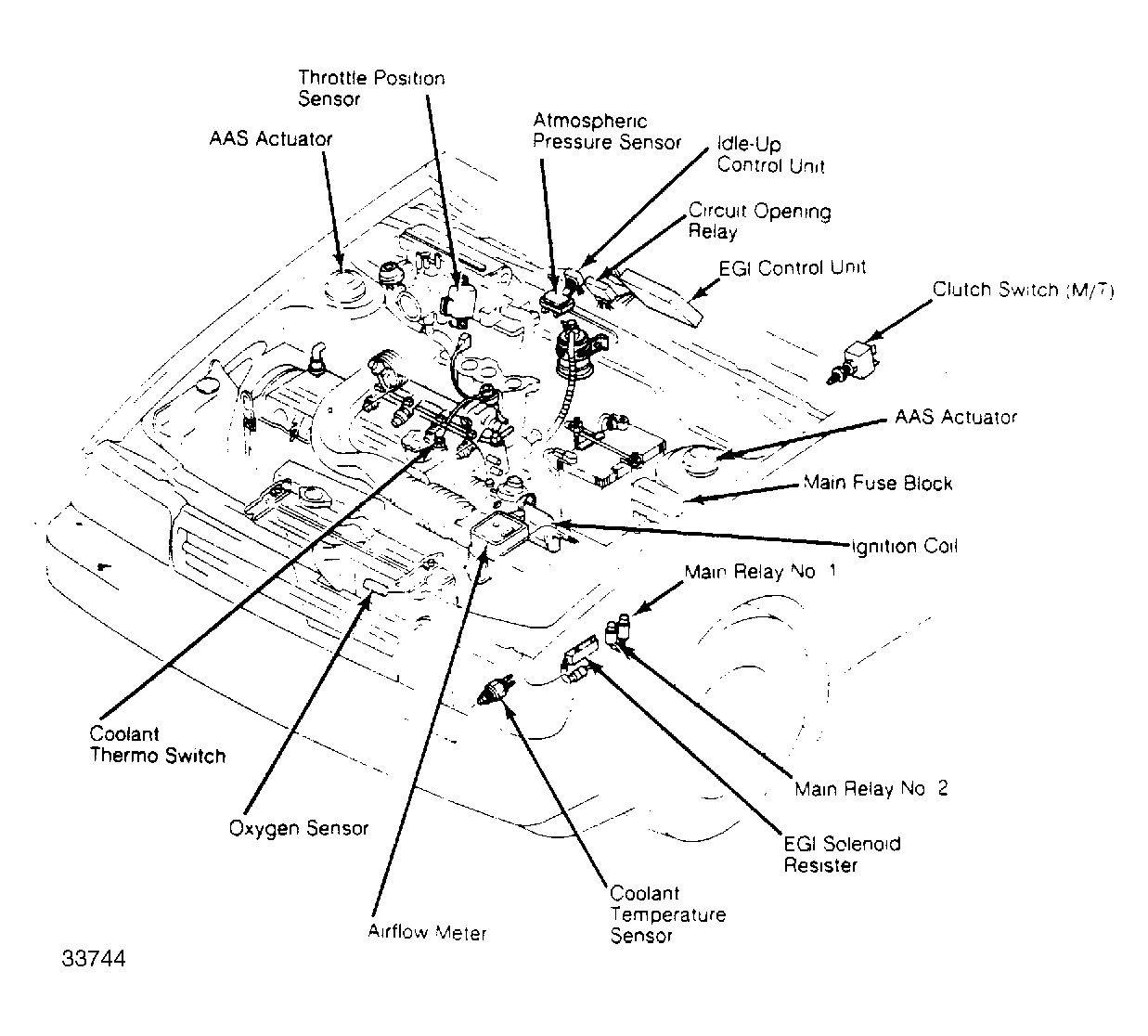

EGI Control Unit Behind center of dash. See Figure & Figure .
Engine RPM Control Unit Center of dash, near EGI control unit.
Idle-Up Control Unit Under center of dash, near EGI control unit. See Figure & Figure .
