Fuel Evaporation System: Description

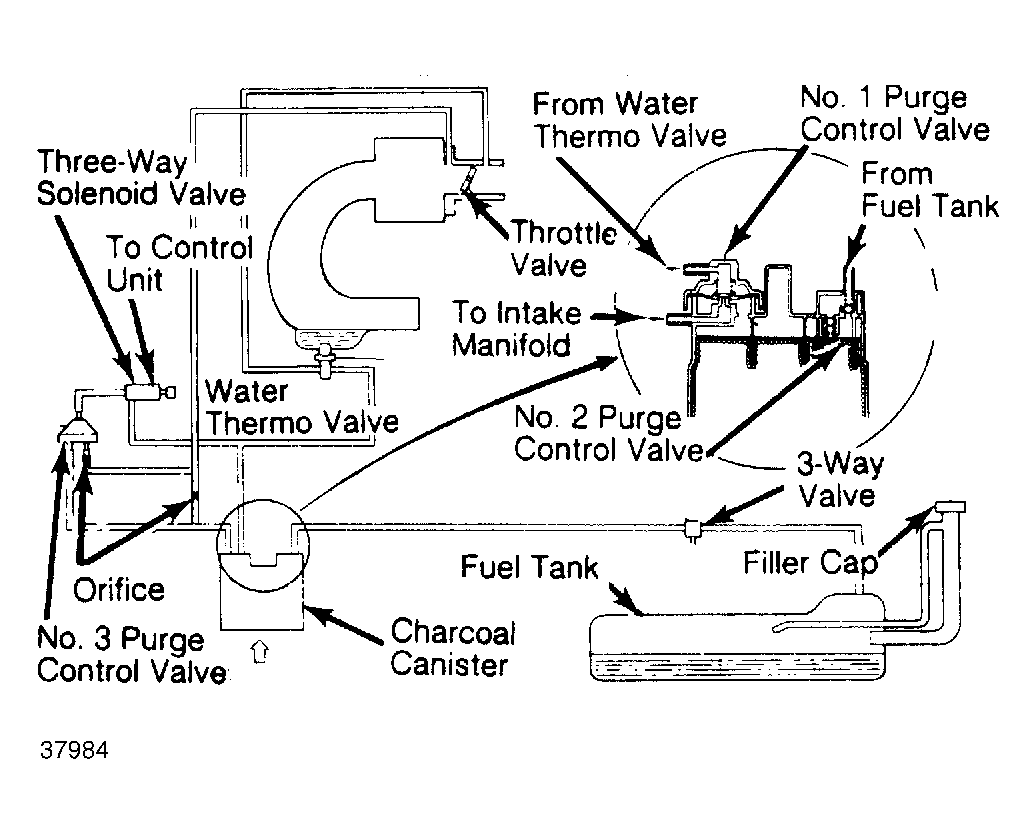

Fuel evaporation system prevents escape of raw fuel vapor to atmosphere. Components of system include a fuel tank with integral vapor separator, a check and cut valve, 3 purge control valves, a charcoal canister, a fuel filler cap, and connecting lines and hoses.
Additional components include, 2 three-way solenoid valves and control unit.
