626 Turbo

Remove rubber boot from distributor connector. Turn ignition on and measure voltage at terminal "D". See Fig 1 . Start engine and increase engine speed. Voltmeter should indicate 2-3 volts.

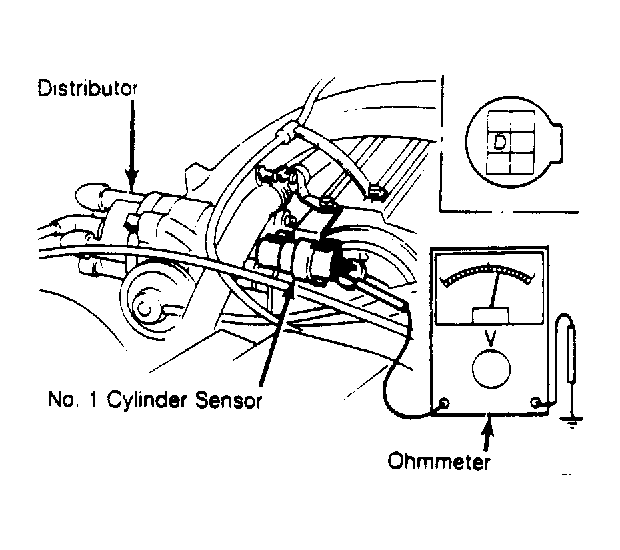

Fig 1: Measuring No. 1 Cylinder Sensor Resistance
