3-Way Valve

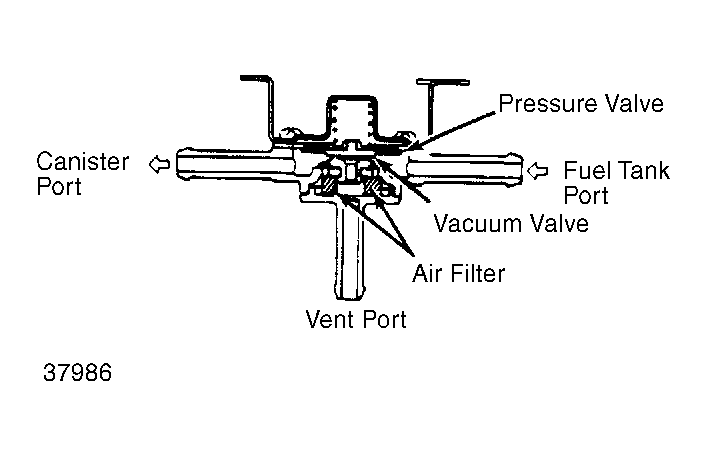

Remove 3-way valve. Blow through valve from fuel tank port and make sure that air comes out of canister port. Block canister port. Air should come out of vent port. Block canister port and blow through vent port. If air comes from fuel tank port, valve is functioning properly. See Figure .
