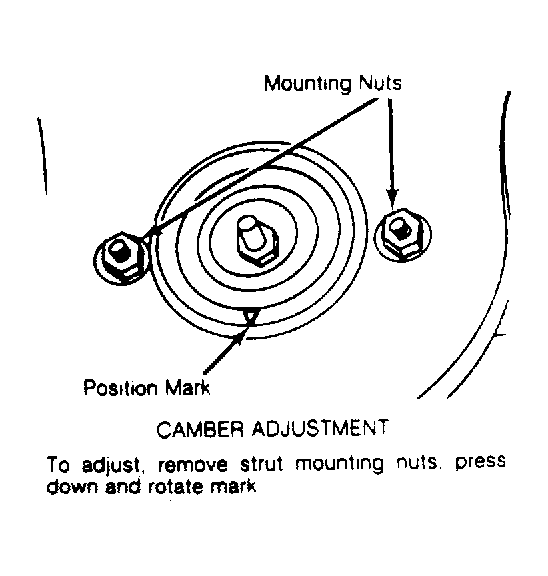

Fig 1: Camber adjustment. To adjust, remove strut mounting nuts, press down and rotate mark.

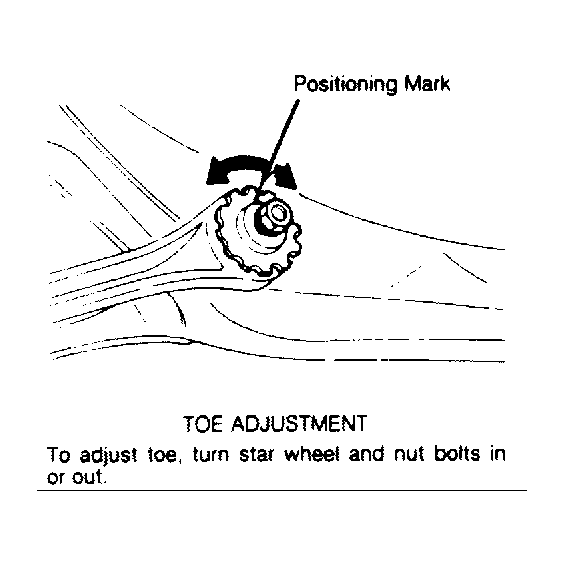

Fig 2: Toe adjustment. To adjust toe, turn star wheel and nut bolts in or out.

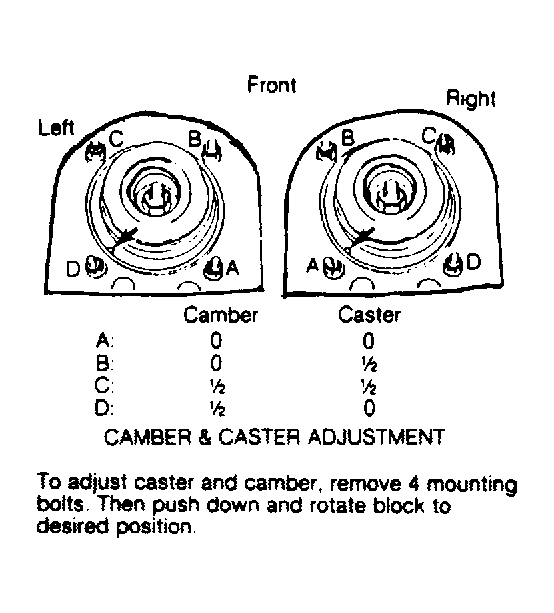

Fig 3: Camber and Caster adjustment. To adjust camber and caster, remove 4 mounting bolts. Then push down and rotate block to desired position.

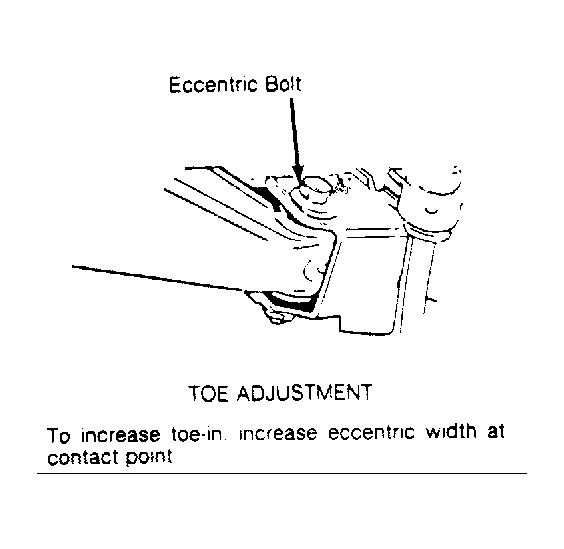

Fig 4: Toe adjustment. To increase toe-in, increase eccentric width at contact point.

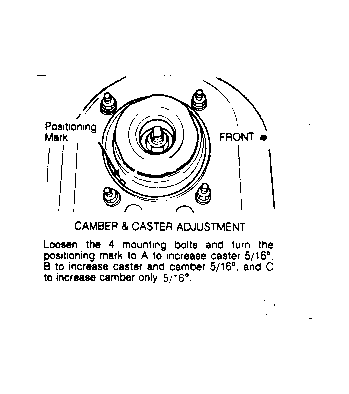

Fig 5: Camber and Caster adjustment. Loosen the 4 mounting bolts and turn the positioning mark to A to increase caster 5/16°, B to increase caster and camber 5/16°, and C to increase camber only 5/16°.
