Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

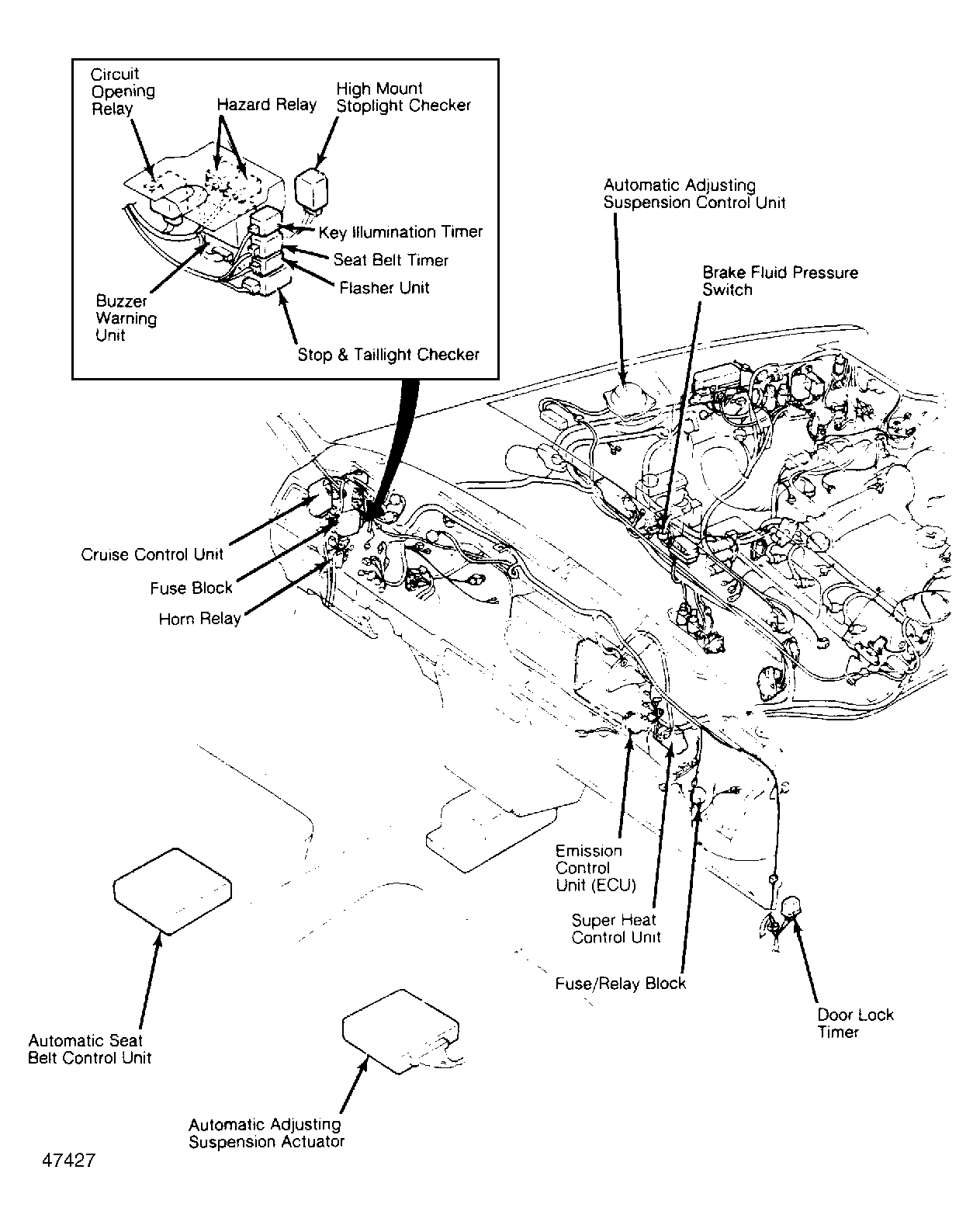

| Automatic Adjusting Suspension (AAS) Control Unit | Under passenger's seat. See Figure . |
| Automatic Seat Belt Control Unit | Under driver's seat. See Figure . |

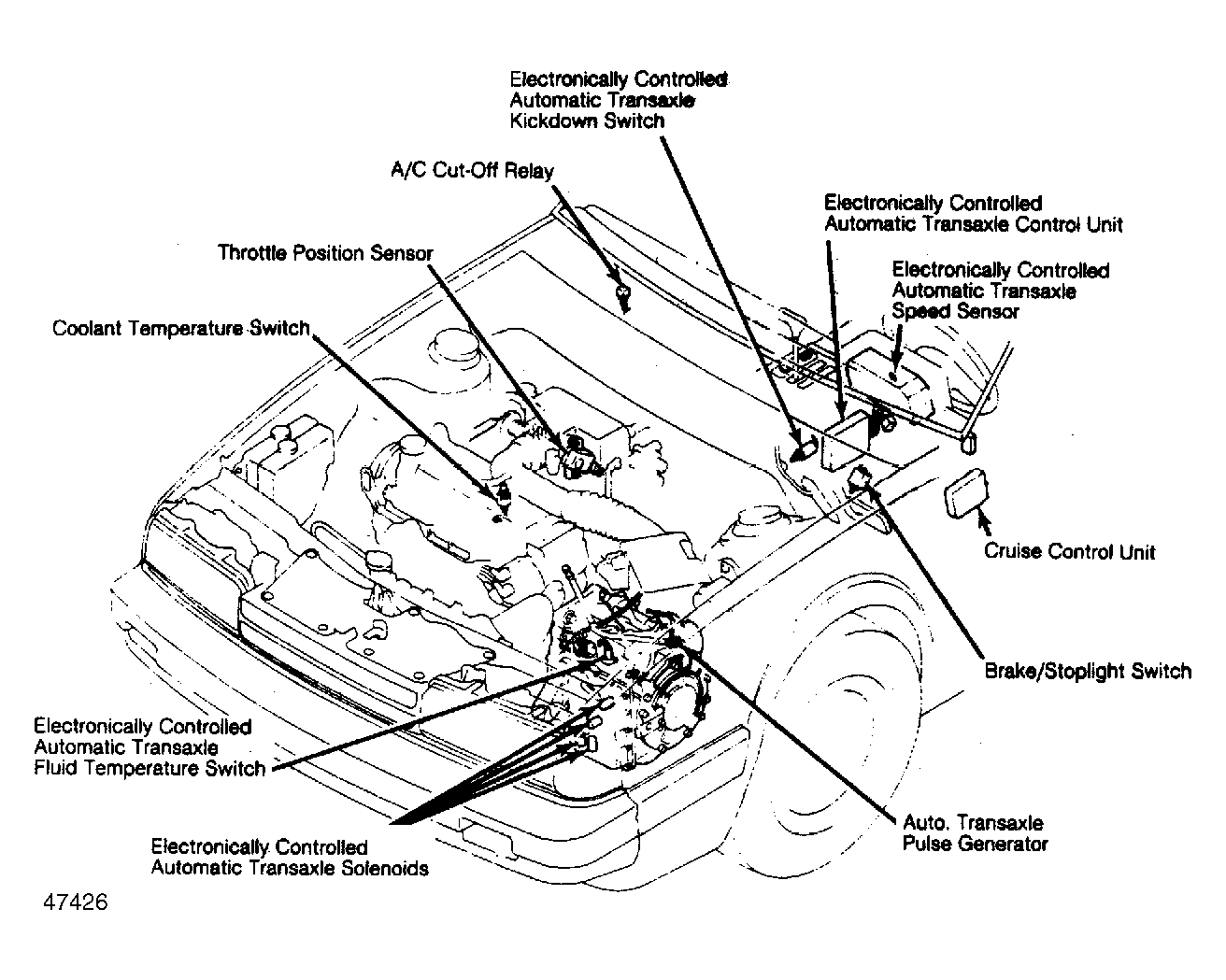

| Cruise Control Unit | On left side behind kick panel. See Figure . |
| Electronically Controlled Automatic Transaxle Control Unit | Under left side of dash. See Figure . |

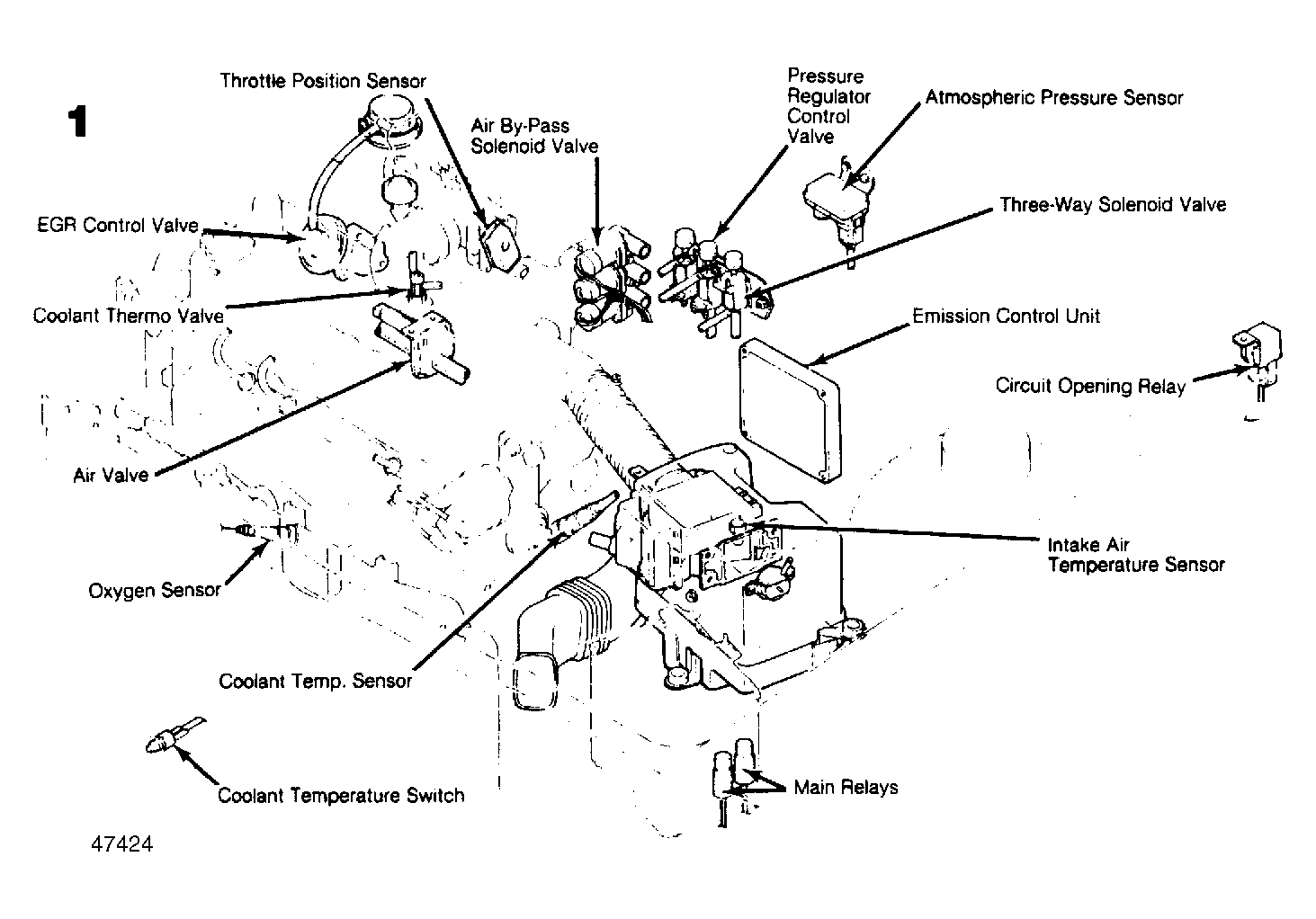

| Emission Control Unit (ECU) | Under center of dash. See Figure & Figure . |

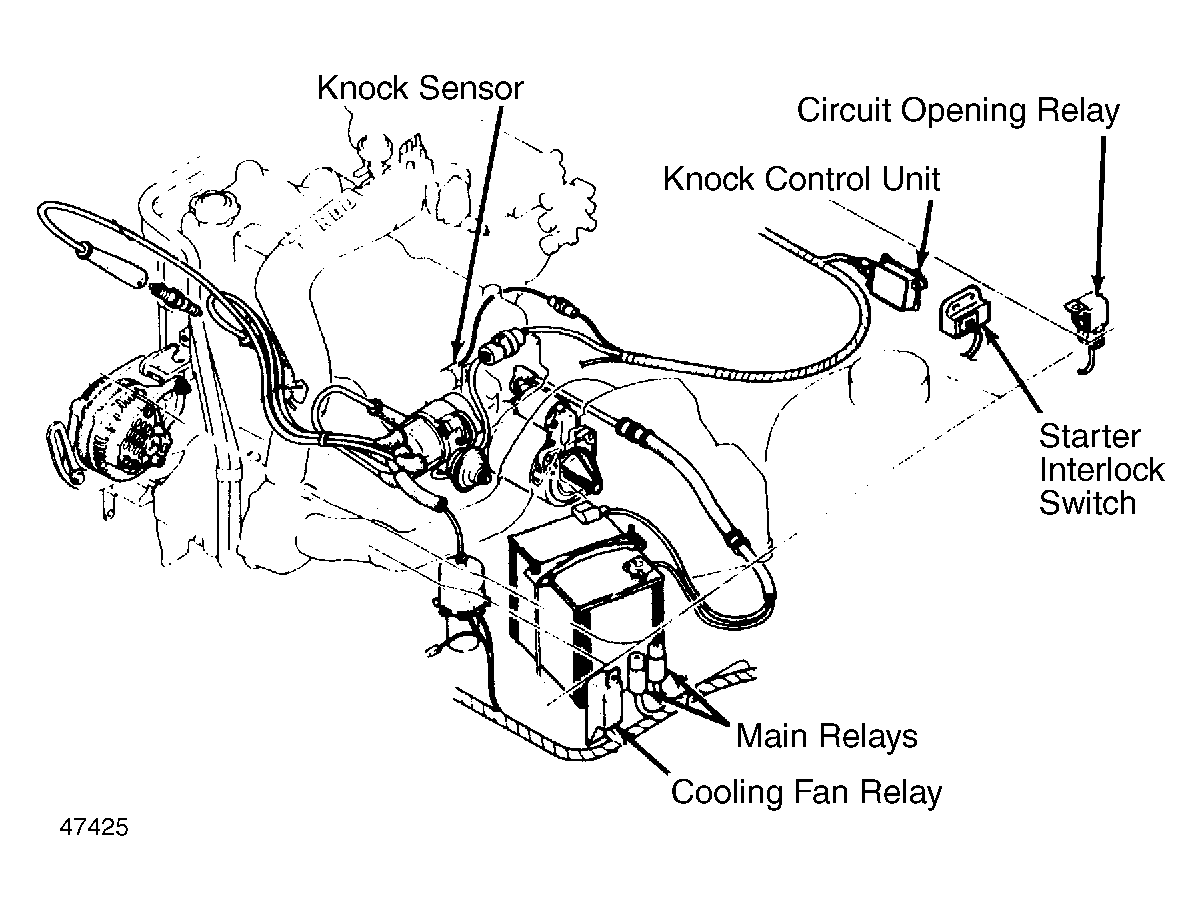

| Knock Control Unit | On left side of firewall. See Figure . |
| Super Heat Control Unit | Under right side of dash. See Figure . |
