5th Gear Switch

This switch detects engagement of 5th gear and sends this information to ECU. The 5th gear switch is used in vehicles equipped with manual transmissions.

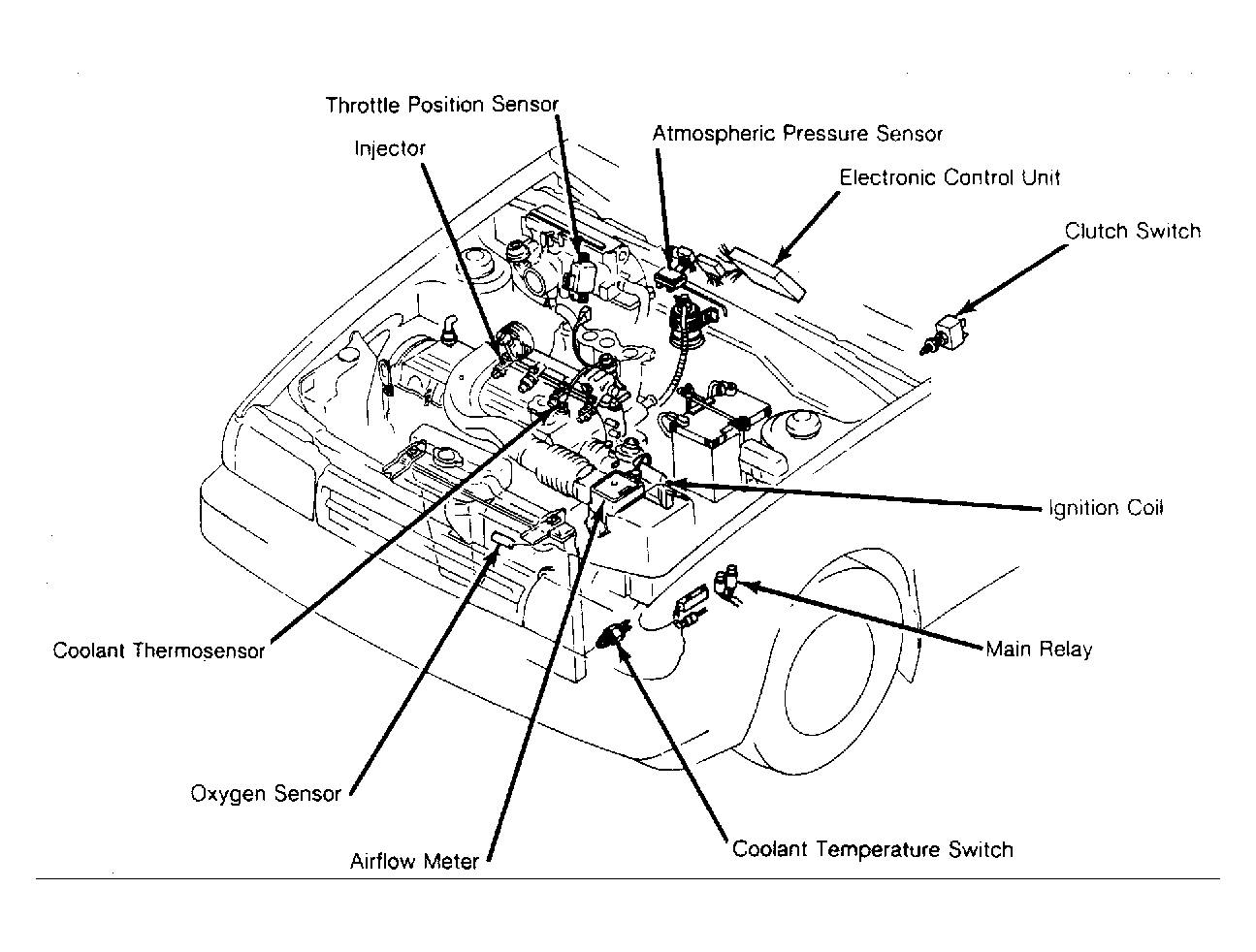

Fig 1: 323 Computer Control System Component Locations
G61469Courtesy of MAZDA MOTORS CORP.
