Inhibitor Switch: 626

Disconnect wiring harness from switch. Using an ohmmeter, check continuity between terminals "A" and "B". Continuity should be indicated when transmission is in "P" or "N". No continuity should exist when transmission is placed in any other range. If readings are incorrect, replace switch.

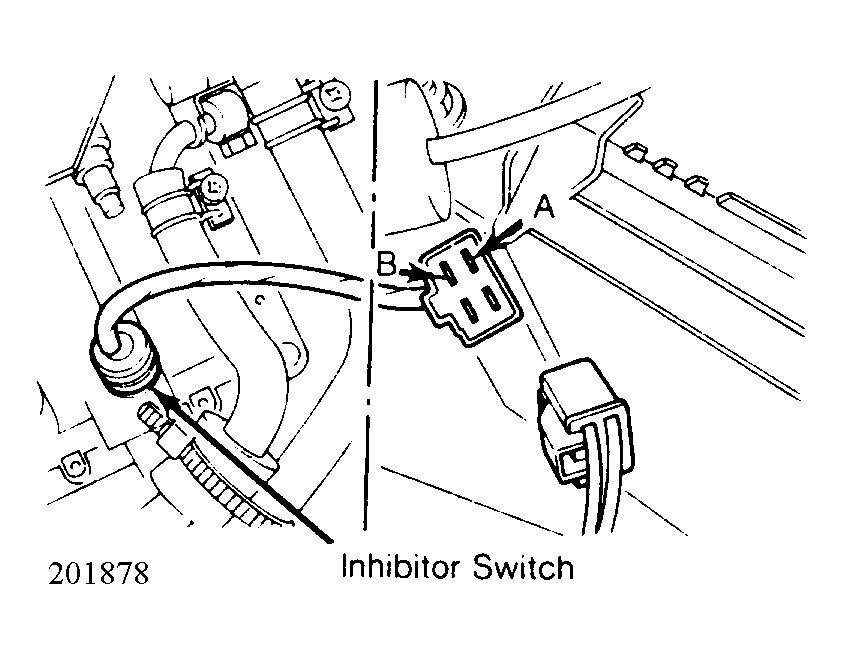

Fig 1: Testing Inhibitor Switch Continuity
G201878Courtesy of MAZDA MOTORS CO.
