Control Units

CONTROL UNITS LOCATION

Component Location
Automatic Transmission Control Unit In left kick panel.
Emission Control Unit (ECU)

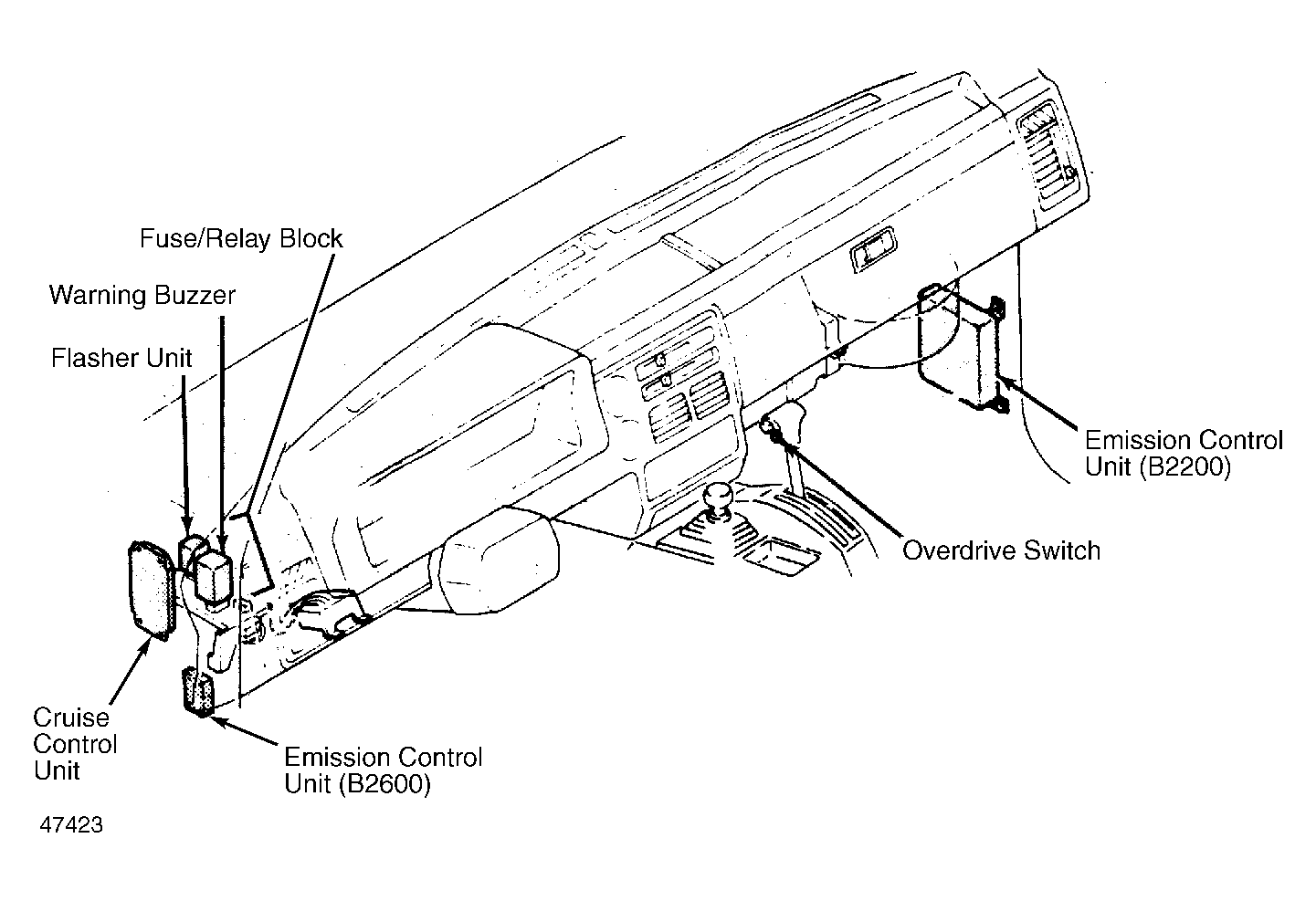

B2200 Behind right kick panel. See Figure .
B2600 Behind left kick panel. See Figure .
Cruise Control Unit Under left side of dash. See Figure .
Feedback Control Unit Behind right kick panel.
Flasher Unit Under left side of dash. See Figure .
