Code 1 - Ignition Pulse

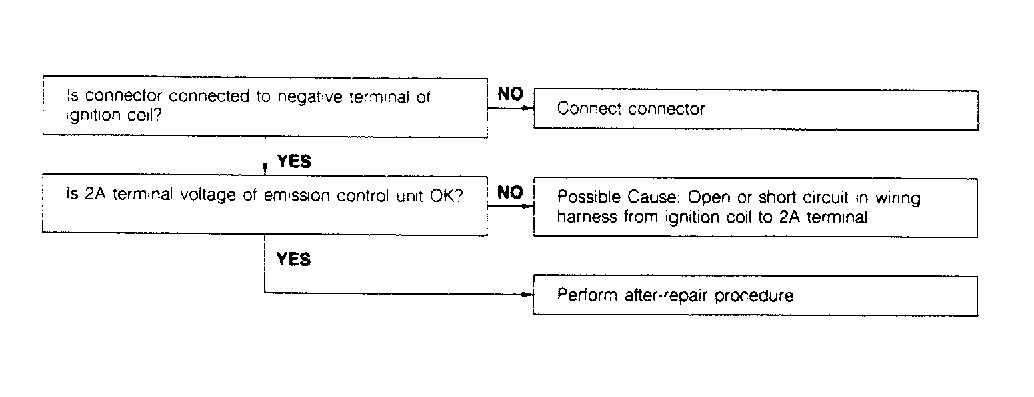

Fig 1: Code 1, Ignition Pulse
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
