Code 17 - Feedback System

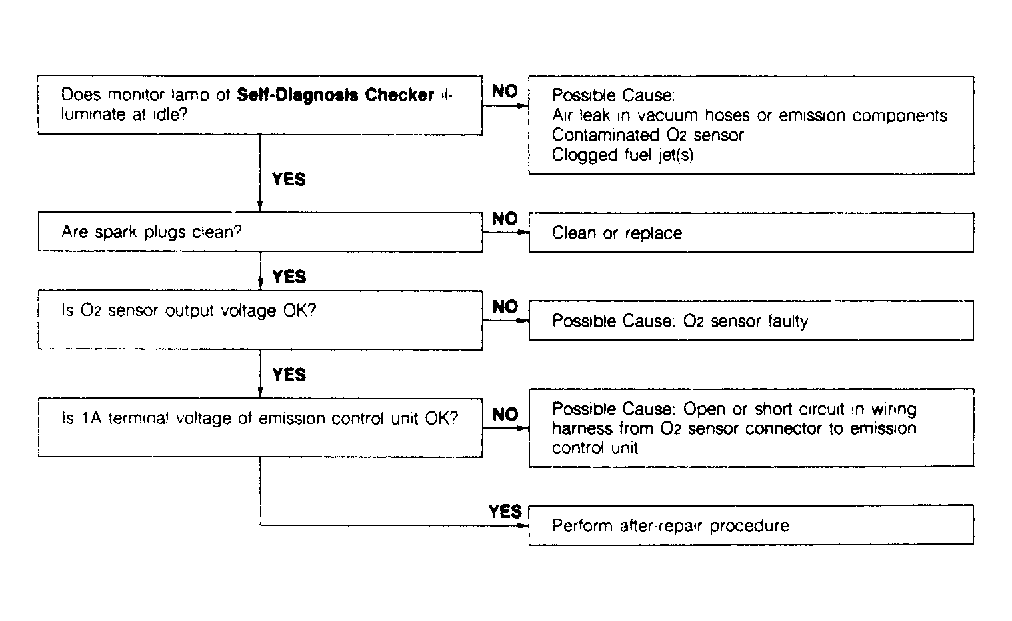

Fig 1: Code 17, Feedback System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
