Relief Solenoid Valve (Turbo)

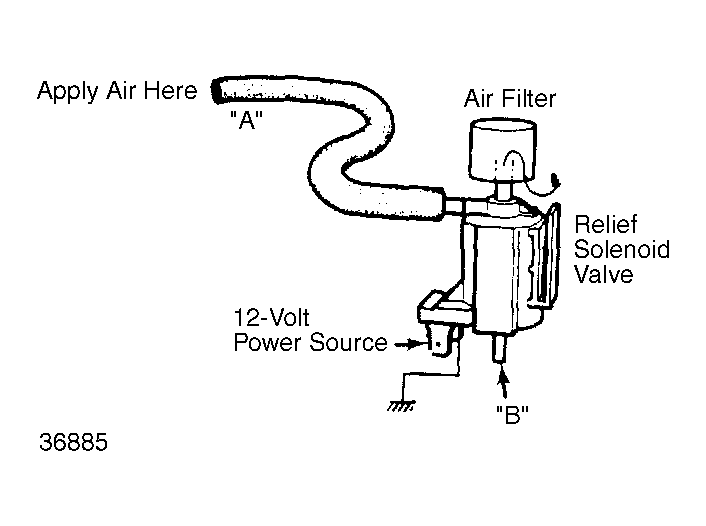

- Disconnect vacuum hoses from relief solenoid valve. Blow through solenoid port "A". See Fig 1 . Check that air flows from port "B". Disconnect relief solenoid valve connector from relief solenoid valve.
- Apply battery voltage and ground to the terminals. Blow through port "A" and check that air flows from relief solenoid valve air filter.
