Neutral Switch (Man. Trans.)

Disconnect neutral switch connector. Connect volt/ohmmeter to neutral switch, and then check continuity between switch. When transmission is in neutral, switch should be closed. When transmission is in gear, switch should be open. See Fig 1 .

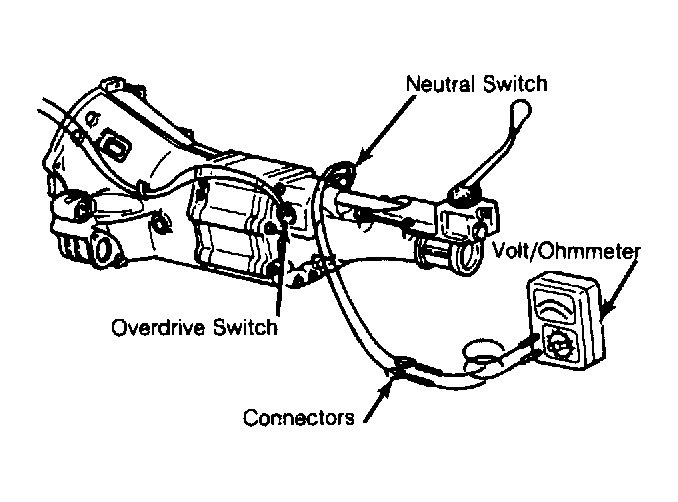

Fig 1: Testing Neutral Switch
G65811Courtesy of MAZDA MOTORS CORP.
