Trouble Codes (Non-Turbo)

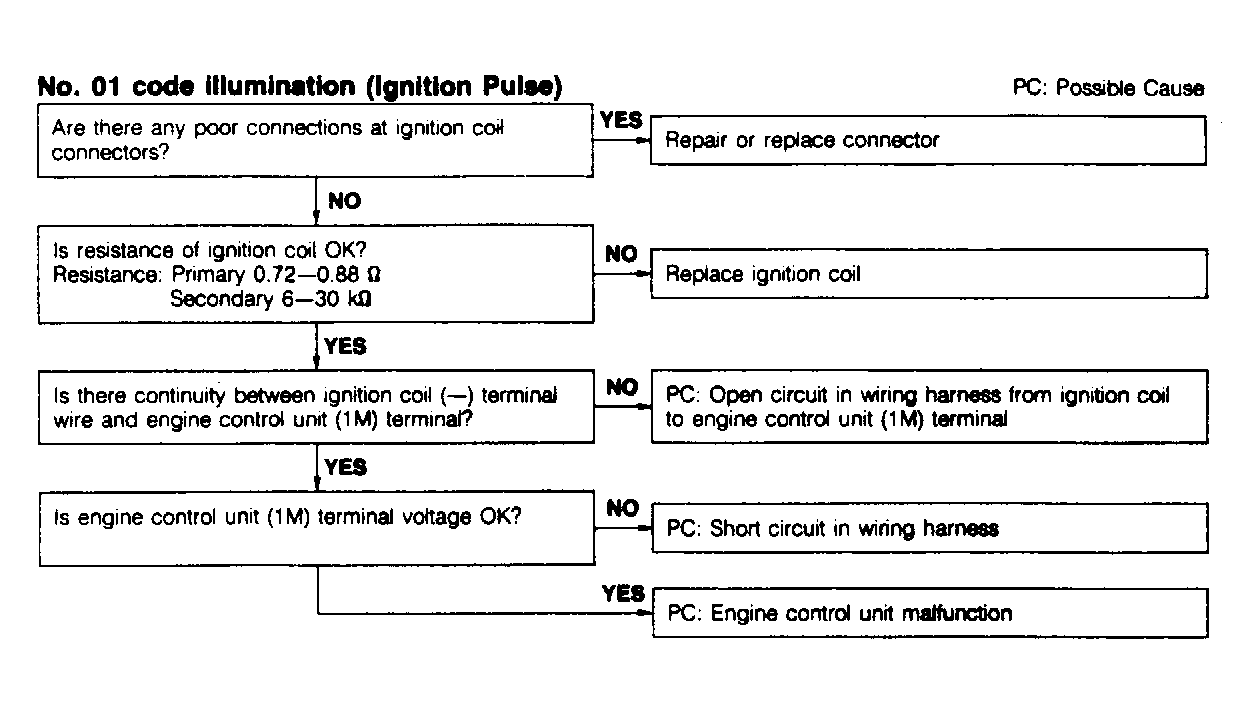

Fig 1: Code 01, Ignition Pulse

Fig 2: Code 08, Air Flow Meter

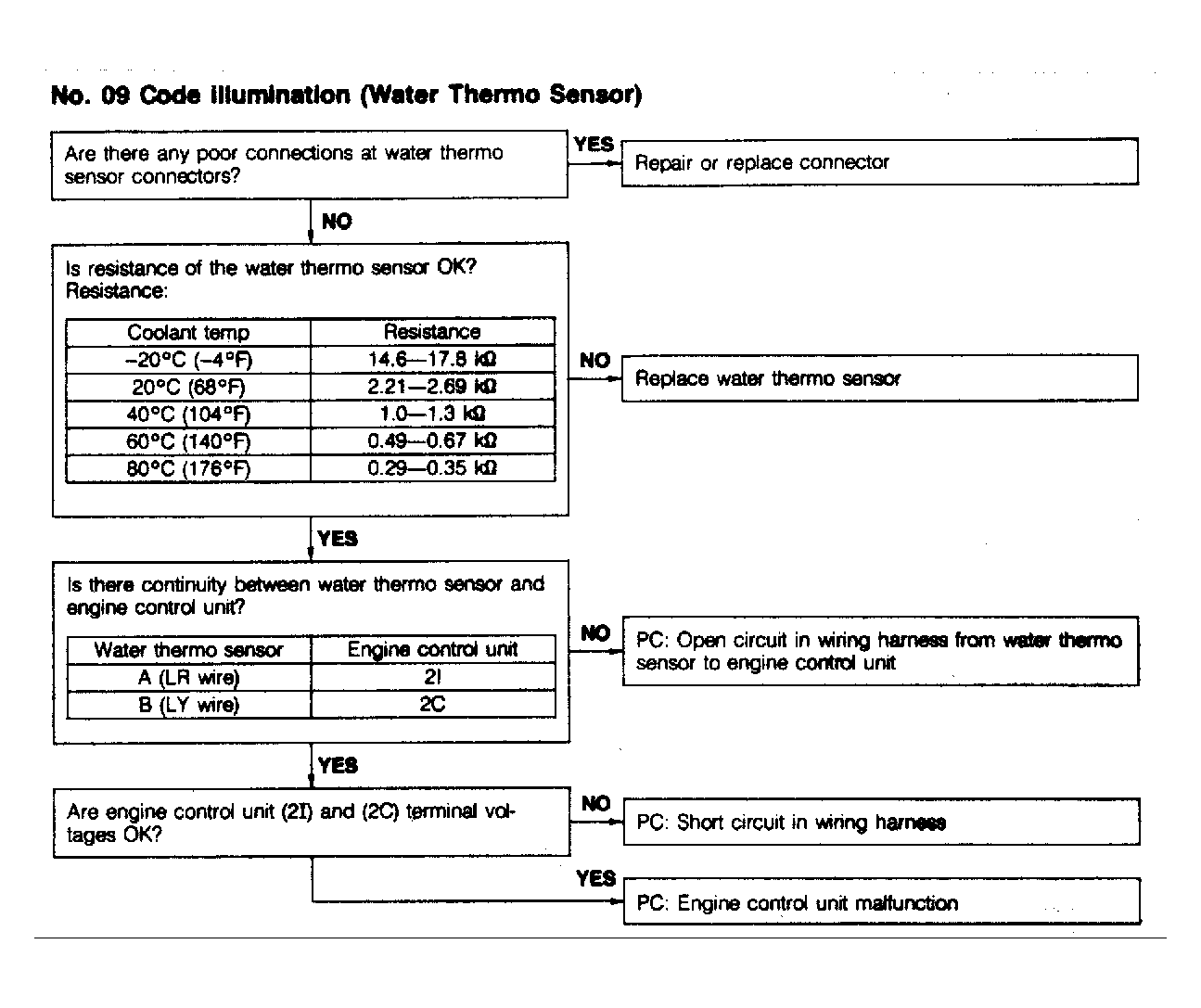

Fig 3: Code 09, Water Thermo Sensor

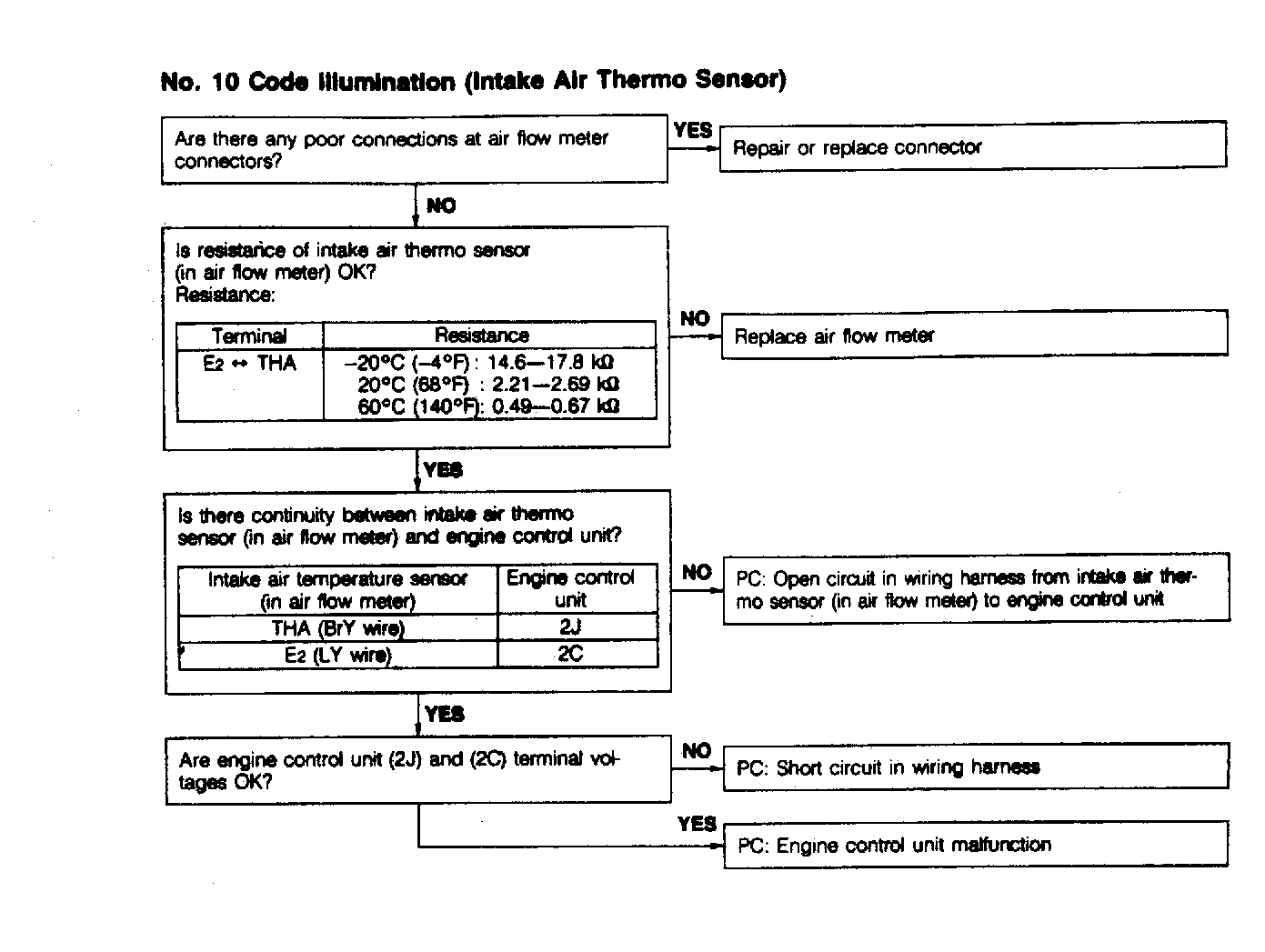

Fig 4: Code 10, Intake Air Thermo Sensor

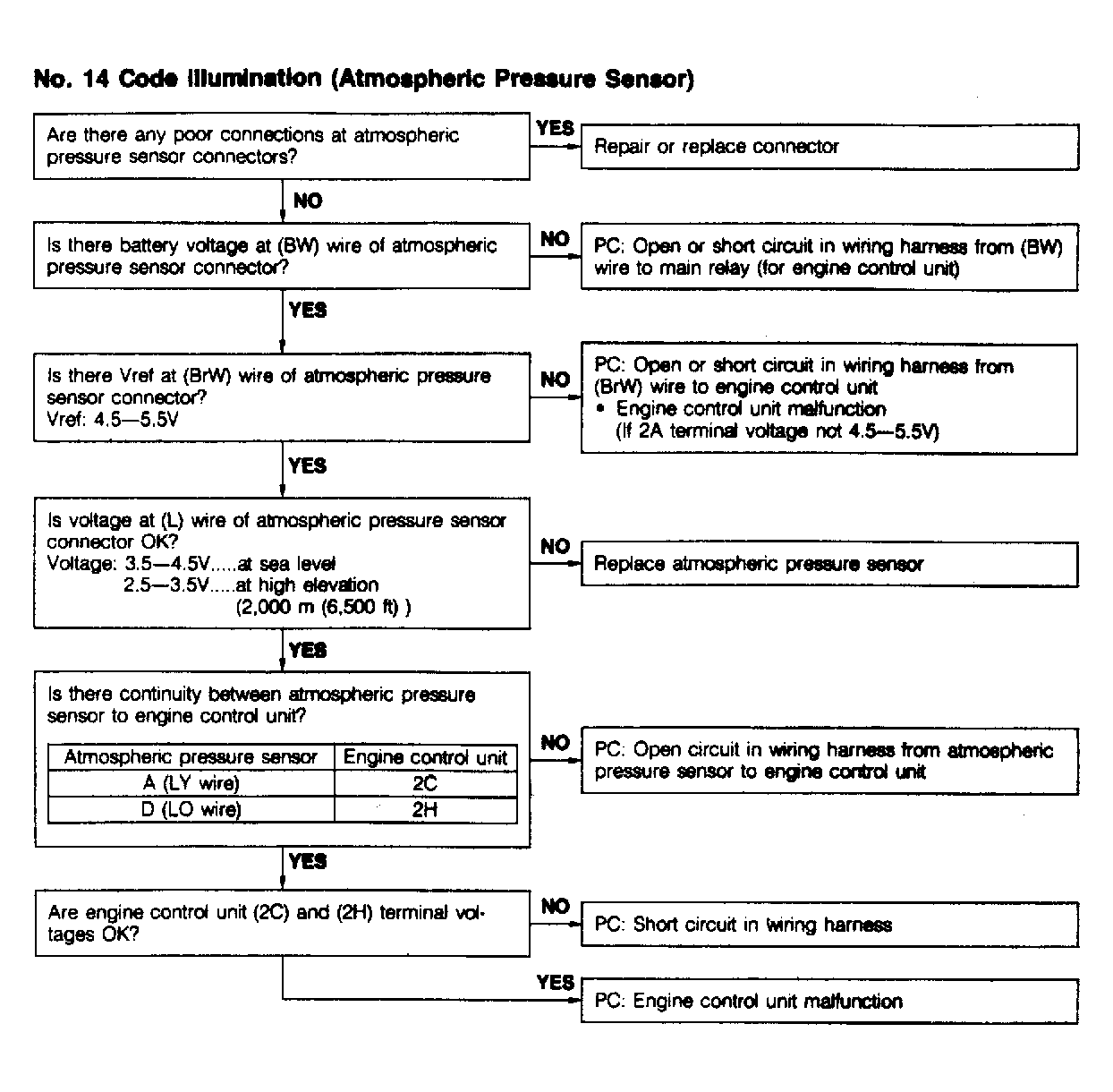

Fig 5: Code 14, Atmospheric Pressure Sensor

Fig 6: Code 15, Oxygen Sensor

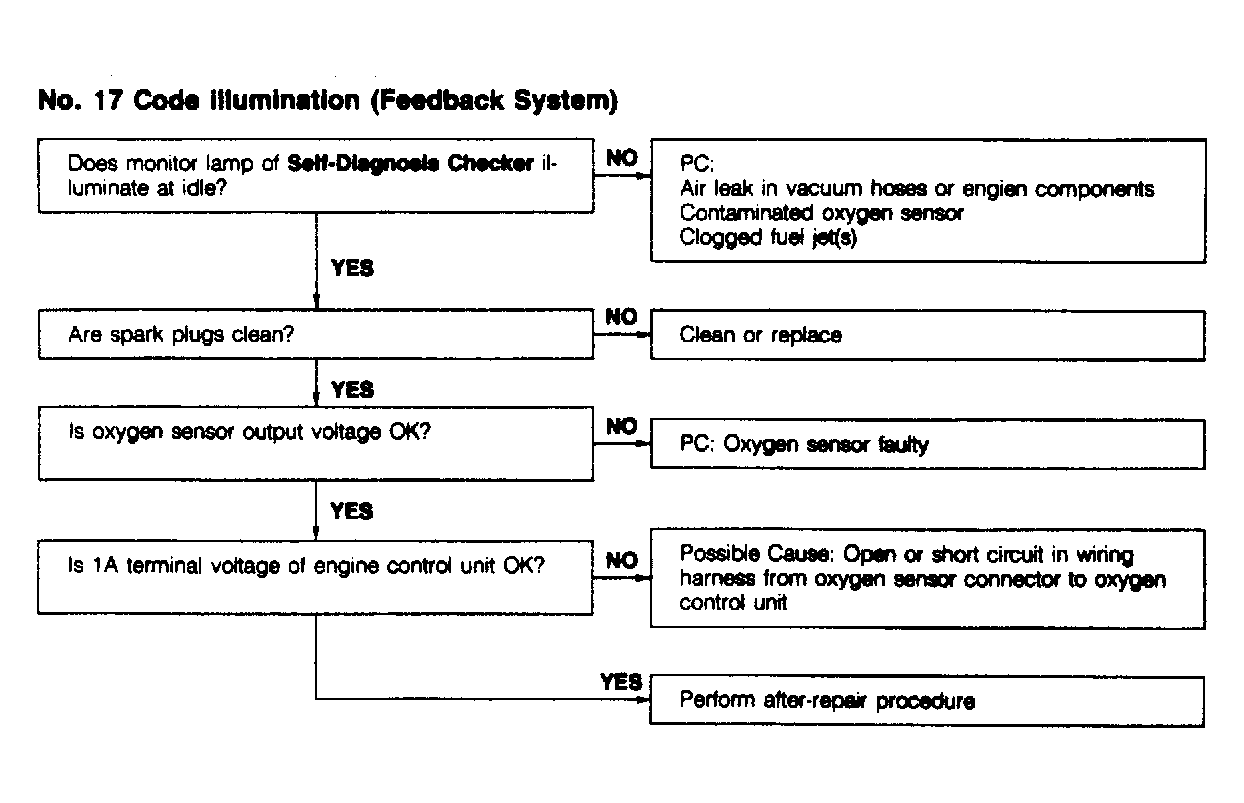

Fig 7: Code 17, Feedback System

Fig 8: Code 26 & 27, Solenoid Valve

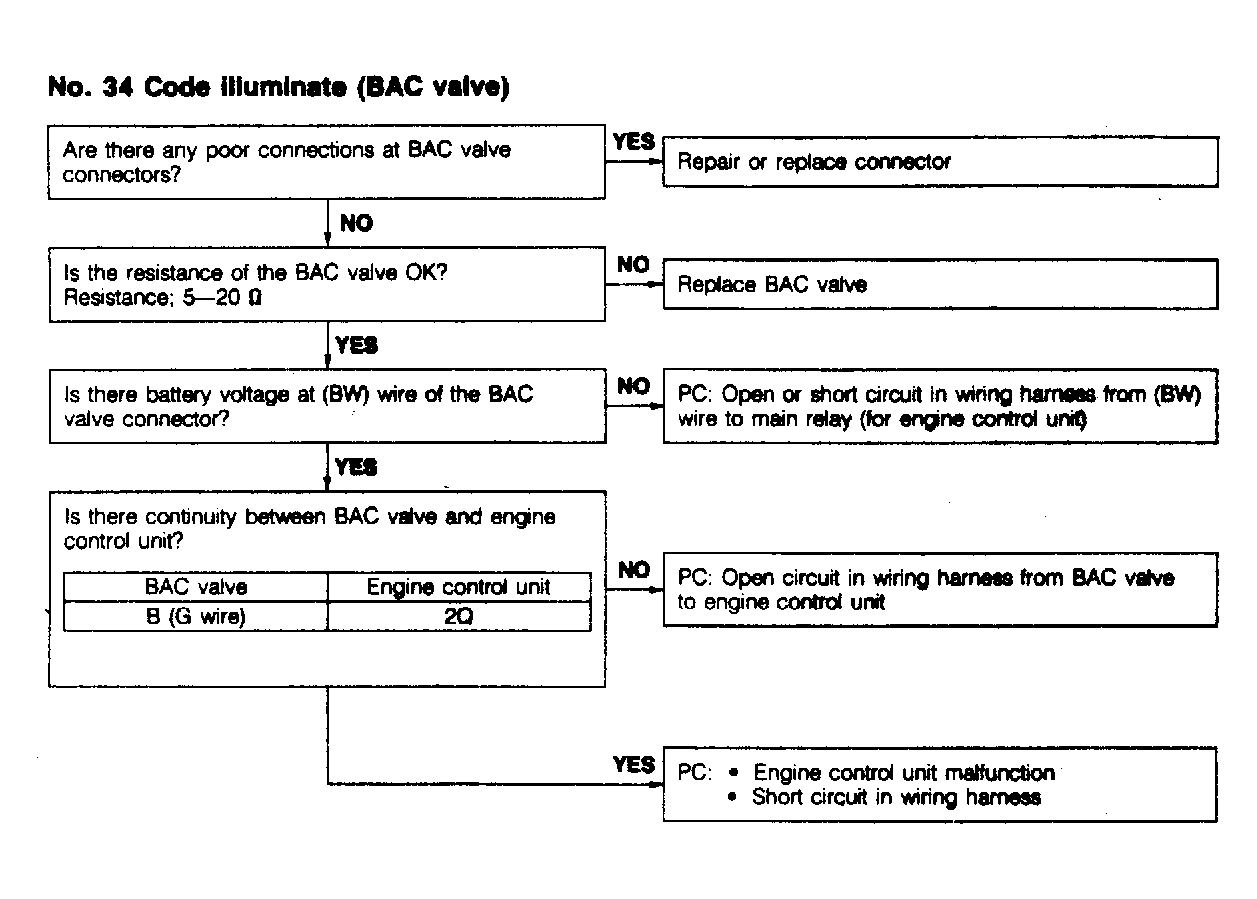

Fig 9: Code 34, BAC Valve
