Trouble Codes (Turbo)

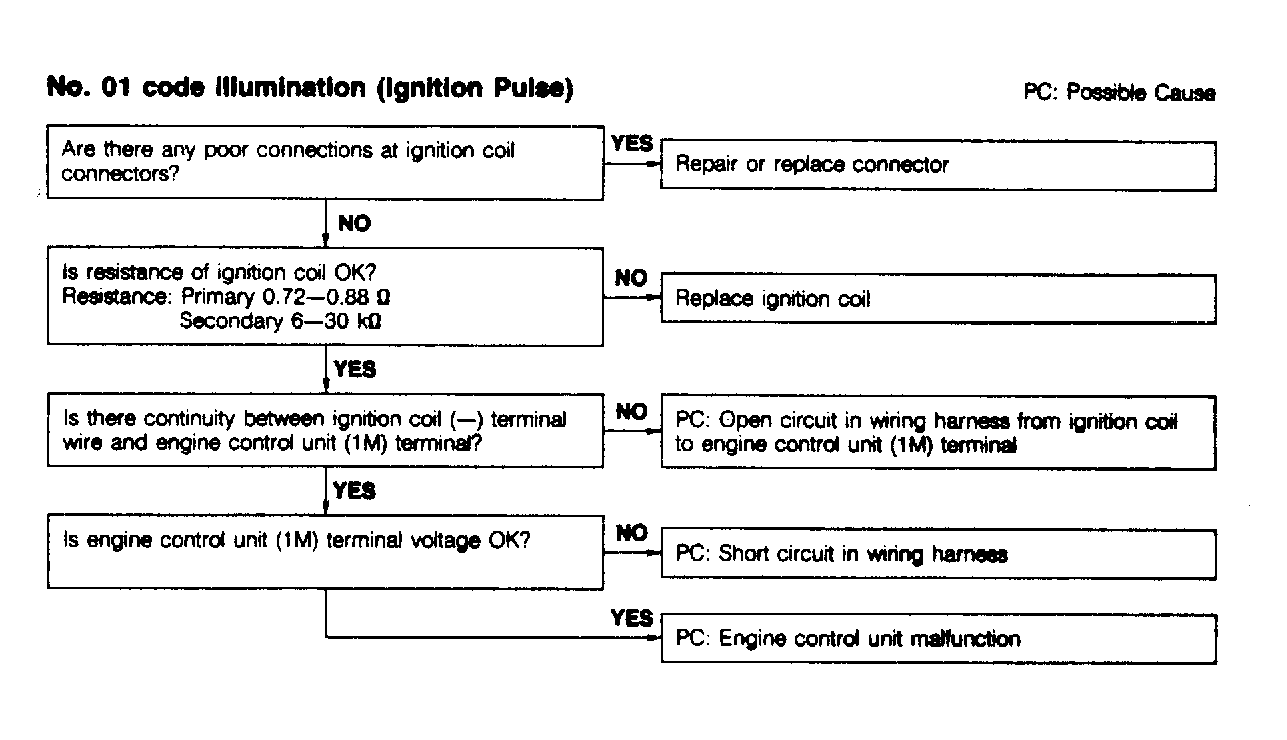

Fig 1: Code 01, Ignition Pulse

G103906

Fig 2: Code 03, G Signal

G103907

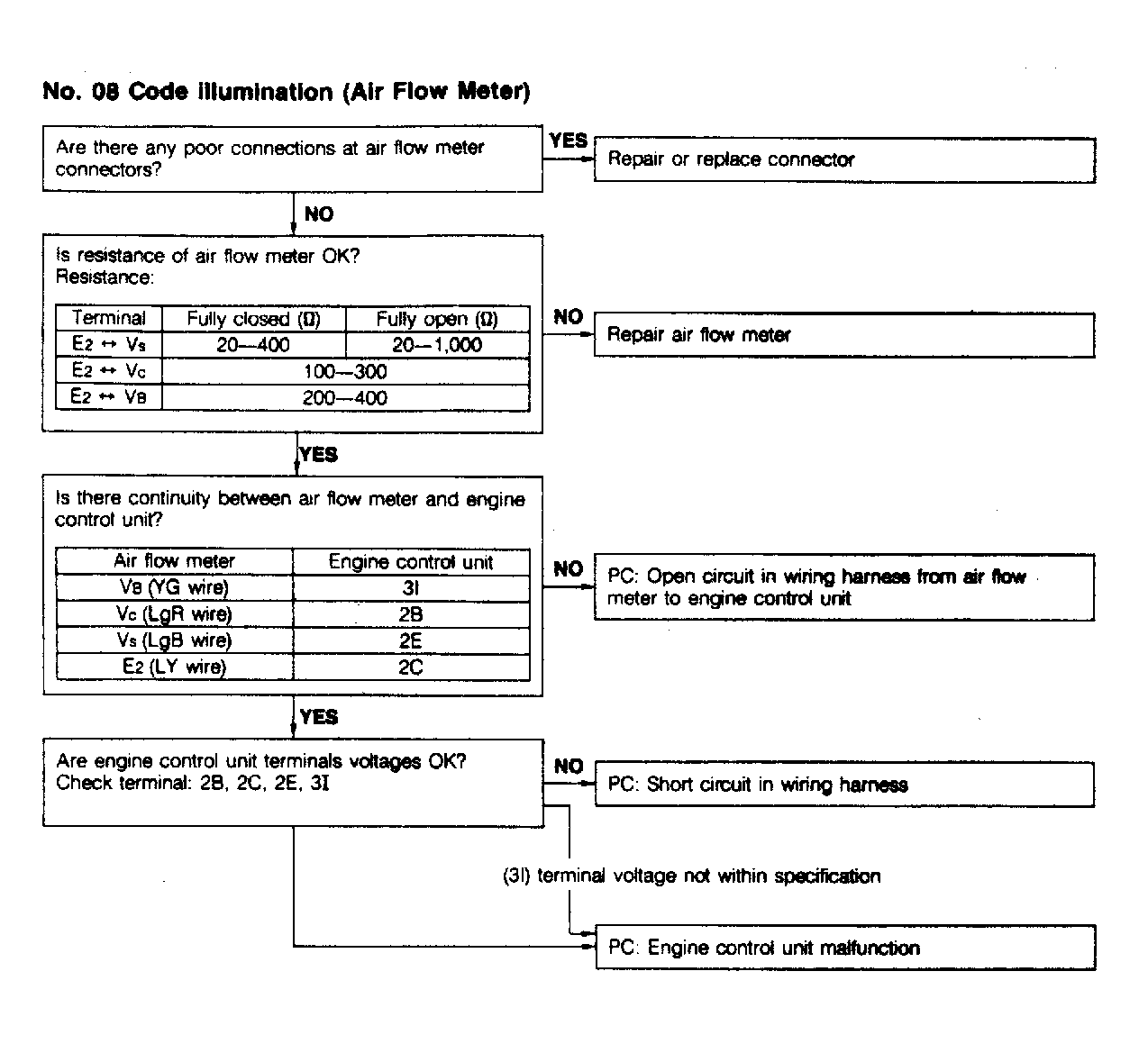

Fig 3: Code 08, Air Flow Meter

G103908

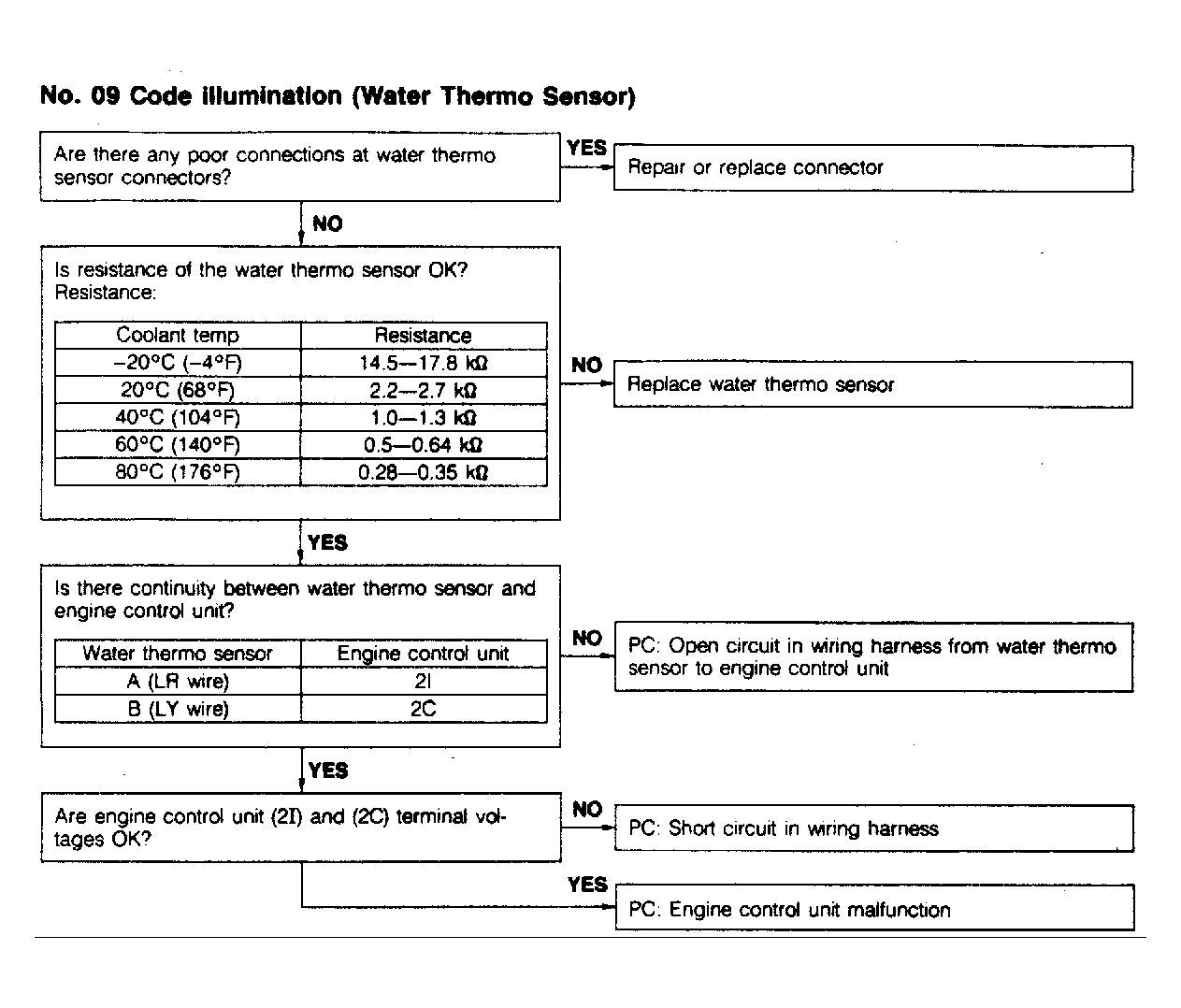

Fig 4: Code 09, Water Thermo Sensor

G103909

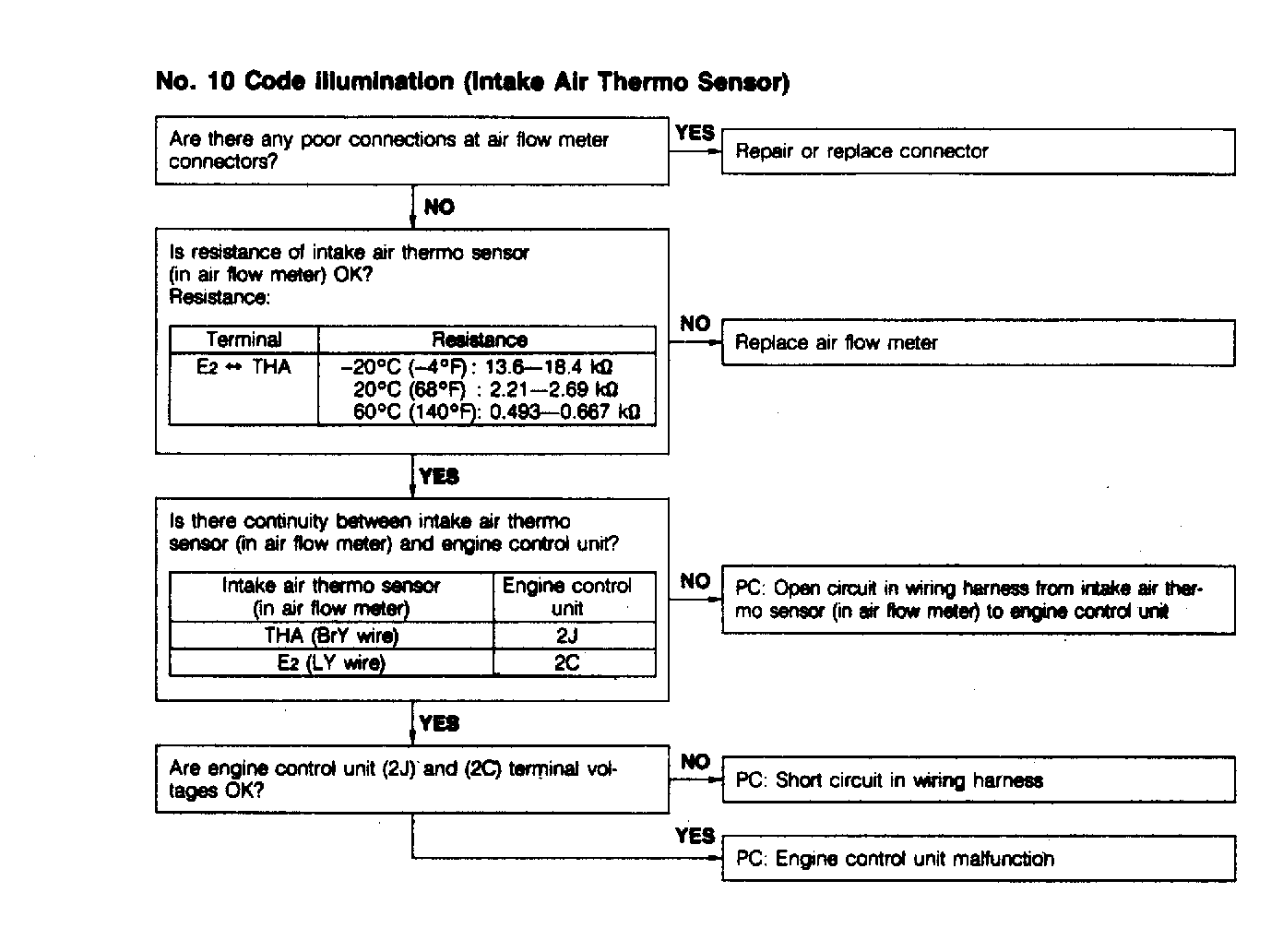

Fig 5: Code 10 Intake Air Thermo Sensor

G103910

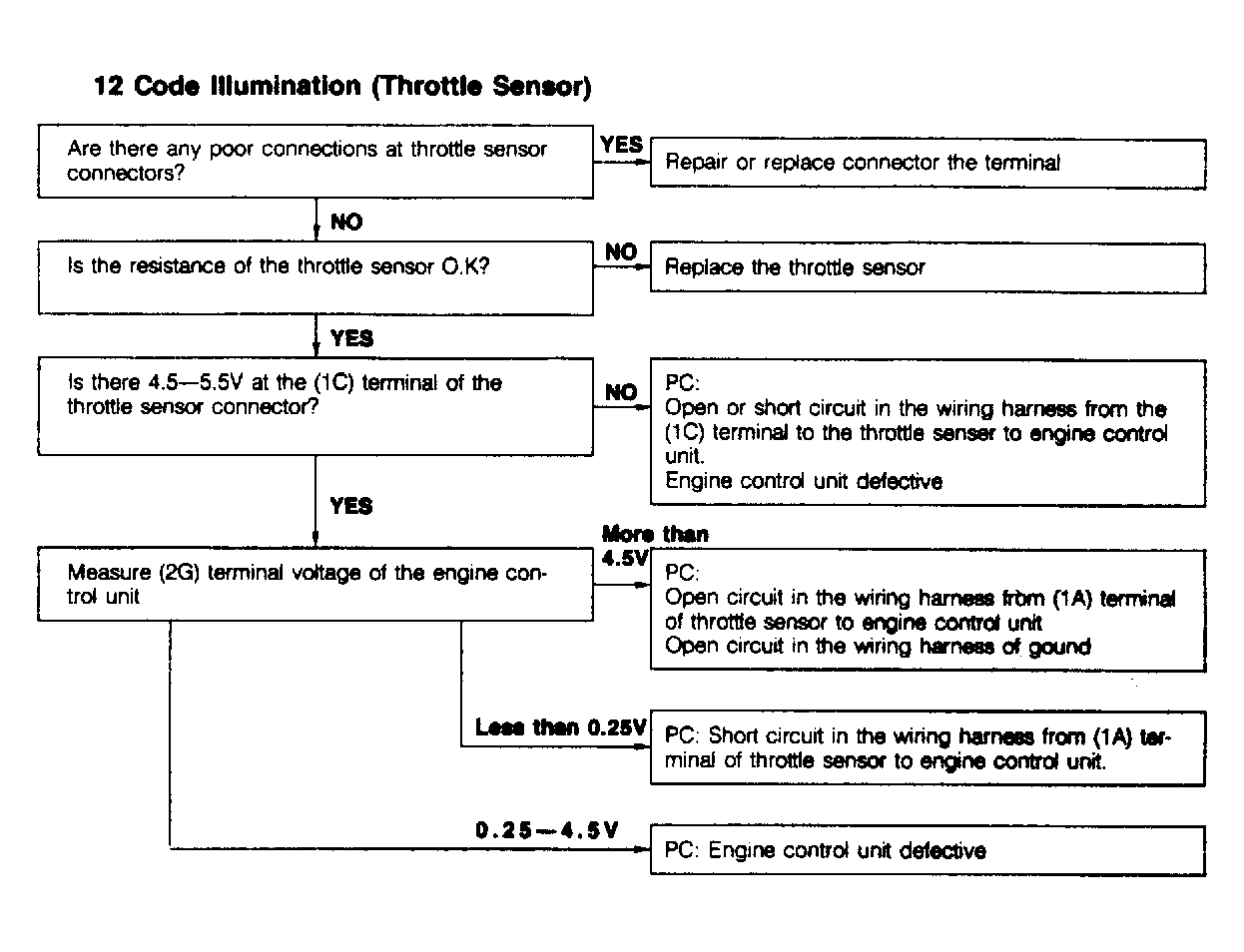

Fig 6: Code 12, Throttle Sensor

G103911

Fig 7: Code 14, Atmospheric Pressure Sensor

G103912

Fig 8: Code 15, Oxygen Sensor

G103913

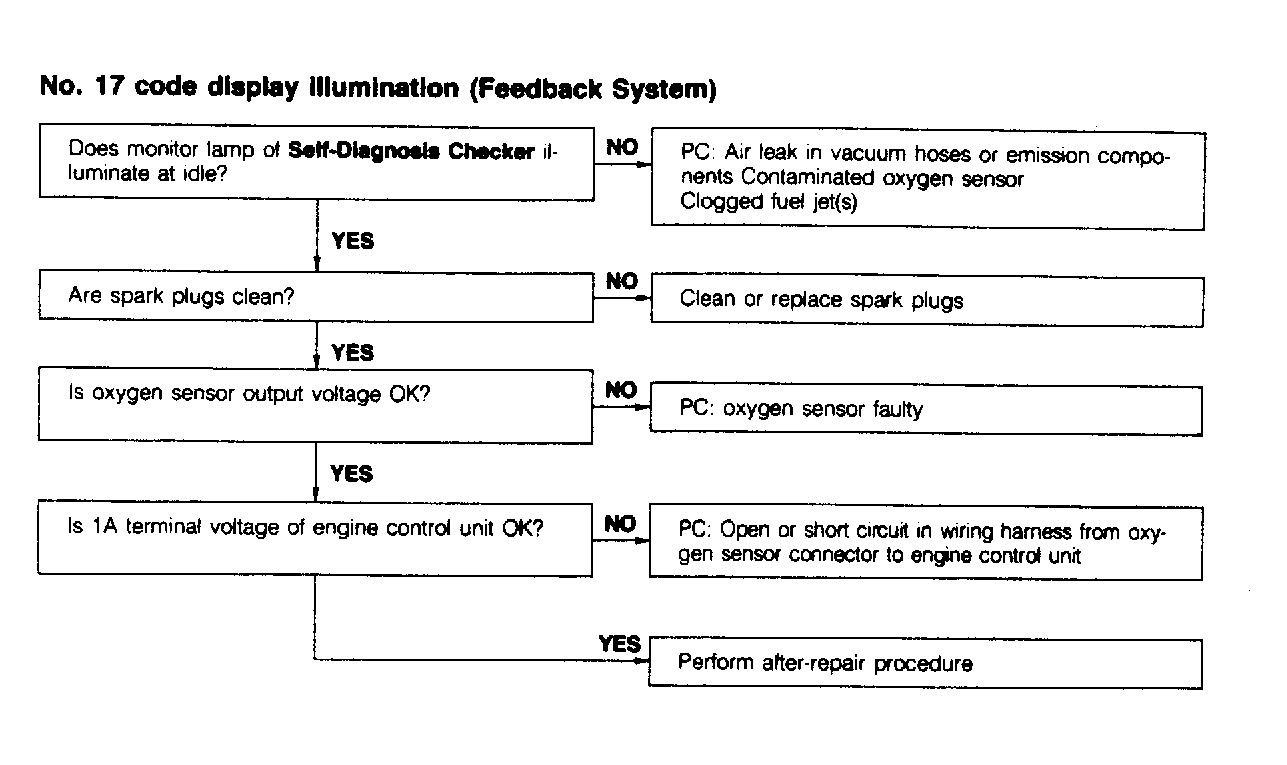

Fig 9: Code 17, Feedback System

G103914

Fig 10: Code 25, 26 & 27, Solenoid Valve

G103915

Fig 11: Code 34, BAC Valve

G94785
