Electrical Load Control Unit

  1. Connect a voltmeter between control unit and ground. Start engine. Check voltage at terminals using ELECTRONIC CONTROL UNIT VOLTAGE CHART. See Fig 1 .

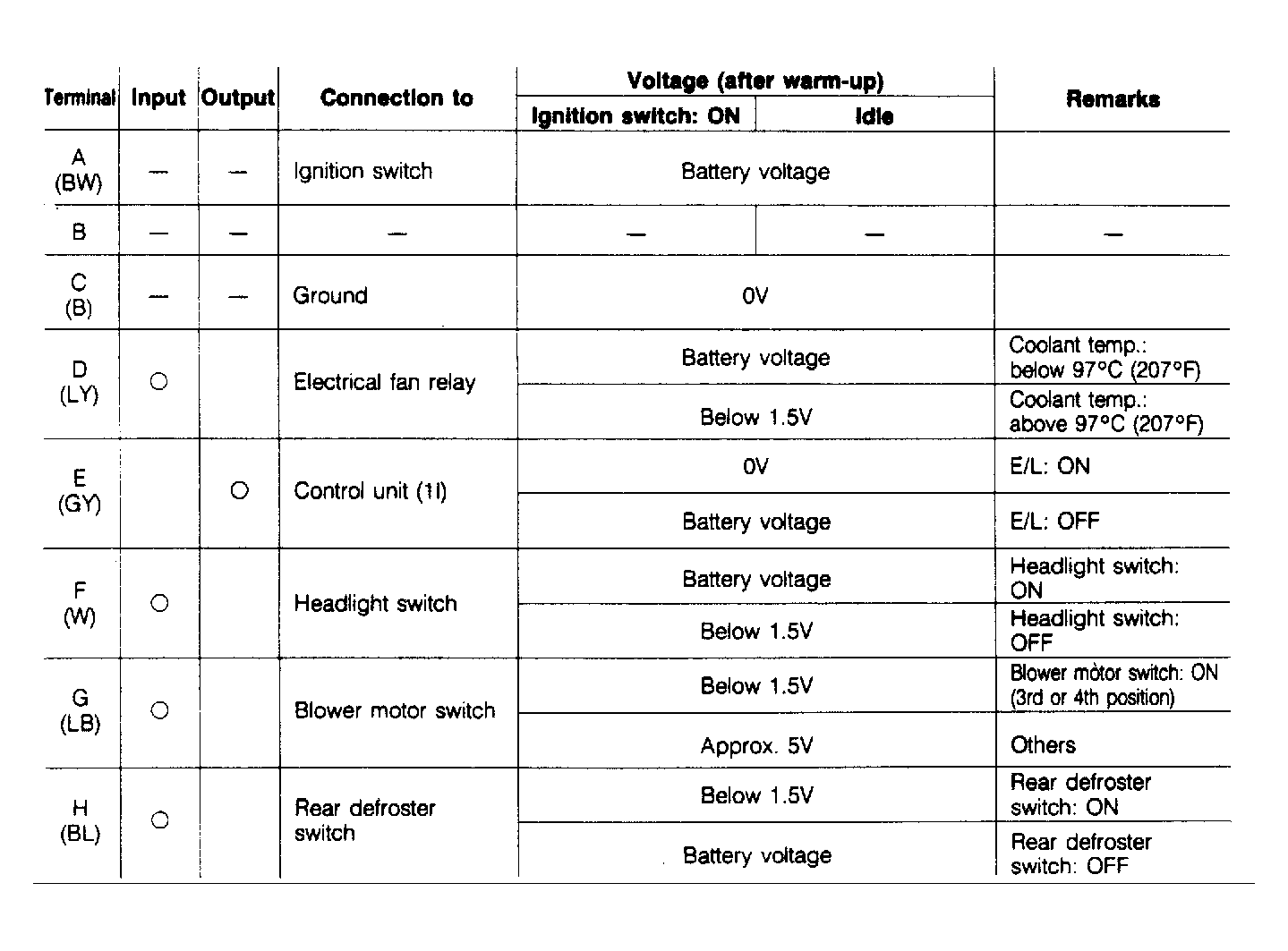

Fig 1: Electronic Control Unit Voltage Chart
G94766
