Electrical Load Control Unit

Connect a voltmeter between electrical load control unit connector terminal and ground. Start engine. Check voltage at terminals using ELECTRONIC CONTROL UNIT VOLTAGE chart. See Fig 1 .

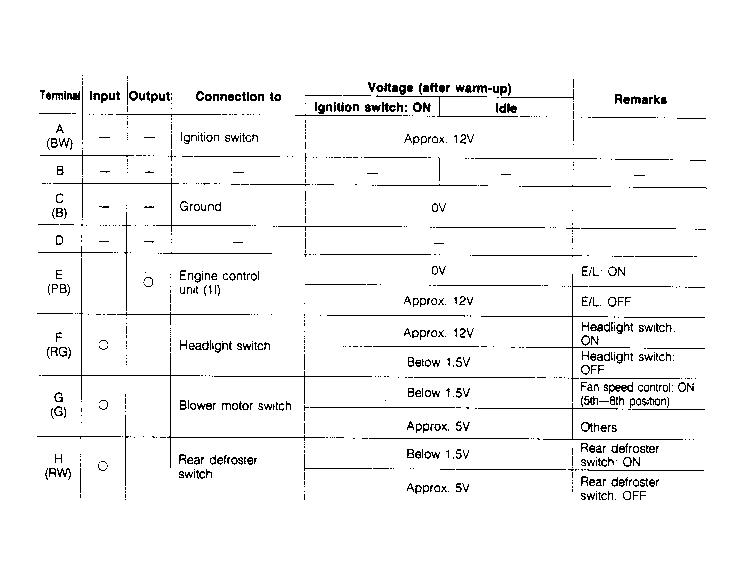

Fig 1: Electronic Control Unit Voltage
G94838
