VRIS Solenoid

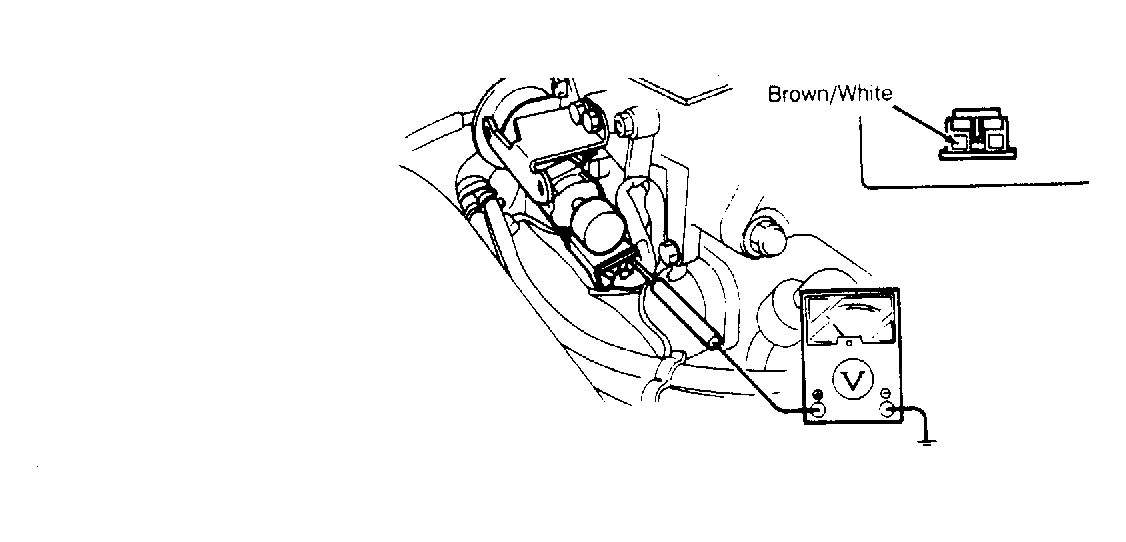

- Connect voltmeter between solenoid valve Brown/White wire and ground. See Fig 1
. Start engine and note voltage. If voltage is not to specifications, check ECU terminal voltage and connections.
Courtesy of MAZDA MOTORS CORP. VRIS OPERATING VOLTAGE
| Engine RPM |
Volts |
| Less Than 3700 |
Approx. 12 |
| 3700-5750 |
Less Than 2 |
| Greater Than 5750 |
Approx. 12 |
- Disconnect vacuum hoses from solenoid. Blow through port B. Ensure air exhaust through air filter.

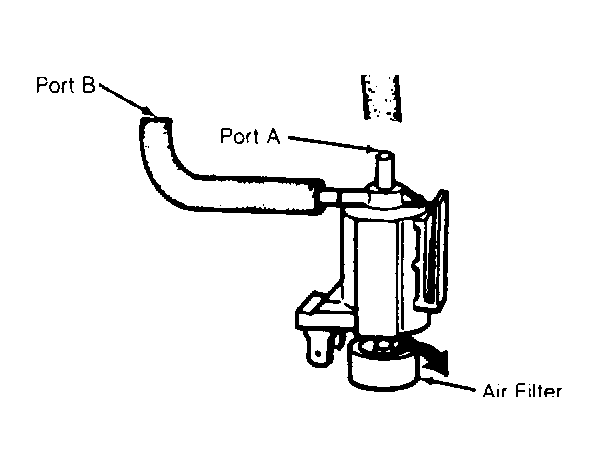

- Disconnect solenoid connector. Apply 12 volts to one solenoid terminal and ground the other. Blow through port B. Ensure air exhaust through port A. See Figure
.
