Trouble Code Access
- Connect Self-Diagnostic Checker (49 H018 9A1

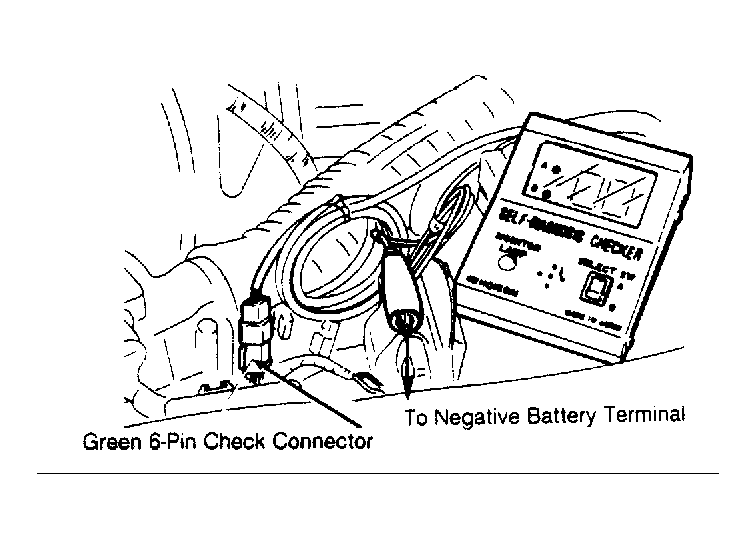

) to Green 6 pin connector and negative battery terminal. See Fig 1
. Connector is located at left front wheelwell. Select position "A" on checker.
- Ground Green 1-pin connector with jumper wire. With ignition on and engine stopped, verify code 88 flashes and buzzer sounds for 3 seconds. If okay, go to step 3). If code 88 does not flash, check main relay, power circuit or harness connections. If code 88 does flash and buzzer sounds continuously for more than 20 seconds, replace ECU and retest.
- Note codes. Check TROUBLE CODE IDENTIFICATION chart for possible cause. See Figure
and Figure
.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
