By-Pass Air Control System (BAC): Notes

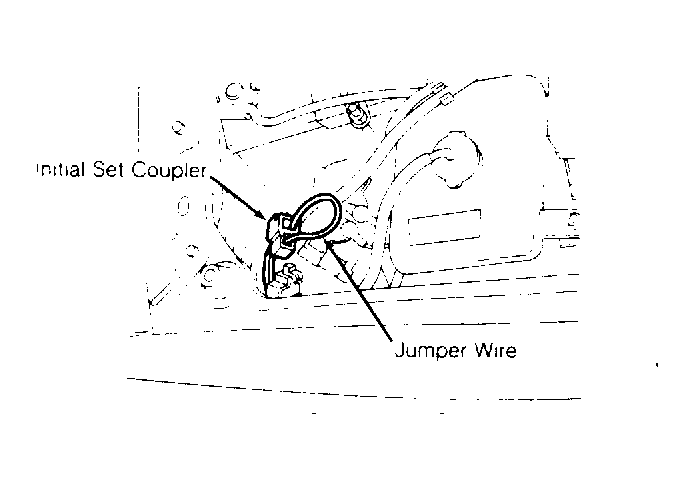

CAUTION: Prior to testing, install jumper wire between terminals of initial set coupler. See Figure .
