Inhibitor Switch (Non-Turbo A/T)

Remove connector from switch. Connect ohmmeter to switch terminals "C" and "D". See Fig 1 . Continuity should exist with gearshift in Park and Neutral. No continuity should exist in all other ranges.

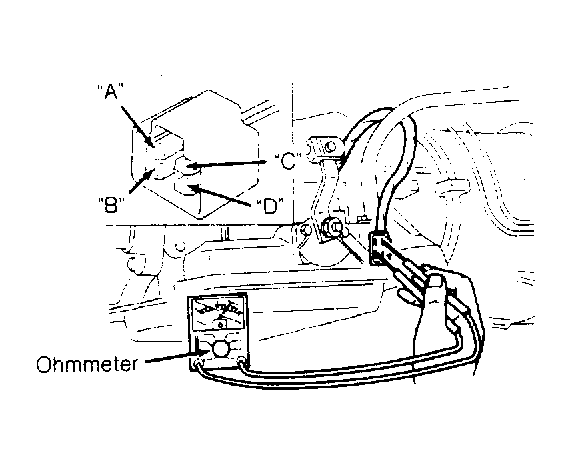

Fig 1: Checking Inhibitor Switch Continuity

Courtesy of MAZDA MOTORS CORP.
