Variable Resistor

Remove resistor connector. Note terminal identification. See Fig 1 . Using ohmmeter, check resistance at specified terminals. See VARIABLE RESISTOR RESISTANCE  table. Replace resistor if not within specification.

NOTE: Idle mixture must be adjusted if variable resistor is replaced.
VARIABLE RESISTOR RESISTANCE

Terminal k/Ohms
A & C .5-4.5
B & C .5-4.5

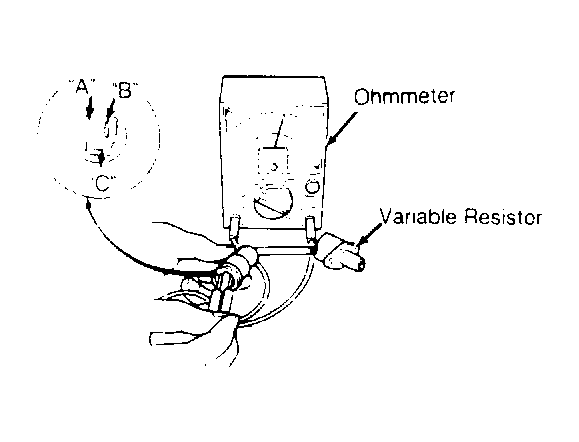

Fig 1: Checking Variable Resistor
G94868Courtesy of MAZDA MOTORS CORP.
