Wiring Diagrams

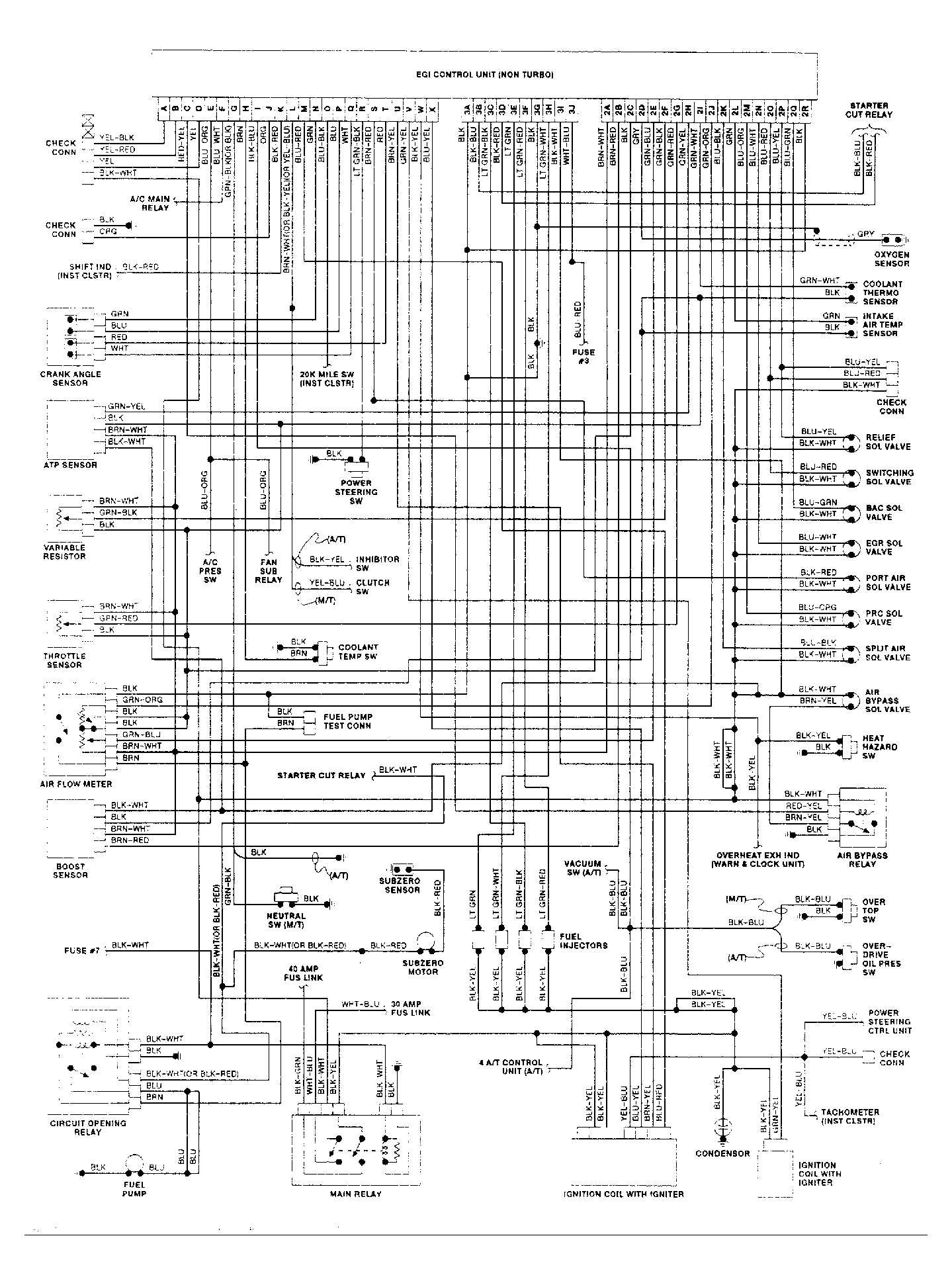

Fig 1: RX7 Non-Turbo Wiring Diagram

G94873

Fig 2: RX7 Turbo Wiring Diagram

G94874
