Crank Angle Sensor

Remove sensor connector. Note terminal identification. See Fig. 1. Using ohmmeter, check resistance at specified terminals. Resistance must be within specification. See CRANK ANGLE SENSOR RESISTANCE SPECIFICATIONS  table.

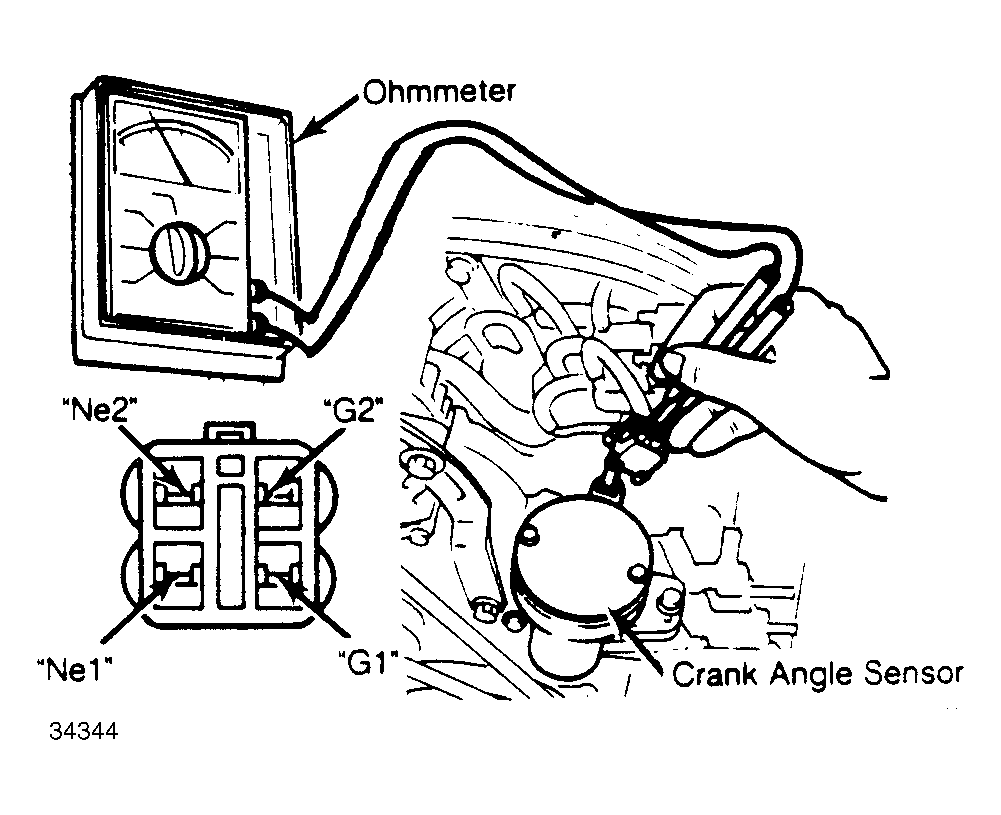

Fig 1: Checking Crank Angle Sensor

Courtesy of MAZDA MOTORS CORP.

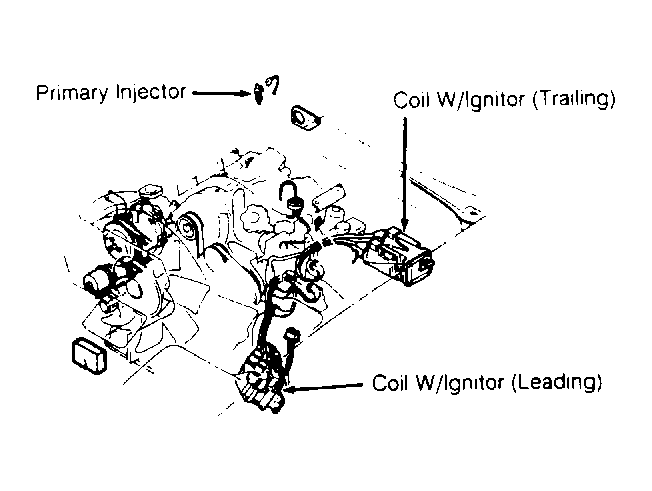

Fig 2: Typical Location Of Coil With Ignitor

Courtesy of MAZDA MOTORS CORP.
