Engine/VIN Id: Application: Notes

1989 MODEL SPECIFICATION

Application Description
B2200
Body Code 11, 21, 31
Engine (1) 2.2L (8-Valve)
Engine Id (2)
Fuel System 2V
Ignition System Magnetic
B2600i
Body Code 41, 52
Engine (1) 2.6L (12-Valve)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic
MX-6 (Turbo)
Body Code 31
Engine (1) 2.2L (12-Valve)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic
MPV
Body Code 52, 62
Engine (1) 2.6L & 3.0L (3)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic
RX7 (Turbo)
Body Code 33, 35
Engine (1) 1.3L Rotary
Engine Id (2)
Fuel System Sequential
Ignition System Magnetic
323 (Turbo)
Body Code 22, 23, 24
Engine (1) 1.6L (8-Valve) (4)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic
626 (Turbo)
Body Code 22, 24
Engine (1) 2.2L (12-Valve)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic
929 (Turbo)
Body Code 22
Engine (1) 3.0L V6 (18-Valve)
Engine Id (2)
Fuel System MPFI
Ignition System Magnetic

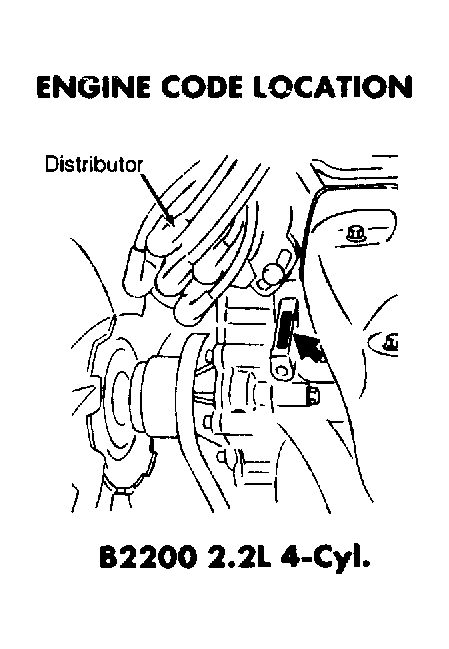

(1) See illustrations for engine code and serial number location. See Figure -8.
(2) Engine type cannot be identified by chassis identification number. See underhood emissions decal for engine identification.
(3) 2.6L 4-Cyl (12-Valve) 3.0L V6 (18-Valve).
(4) 8-Valve except GT (16-Valve).
MODEL YEAR VIN CODE APPLICATION

VIN Code Model Year
H 1987
J 1988
K 1989
