Trouble Codes

Fig 1: Code No. 1 - Ignition Pulse

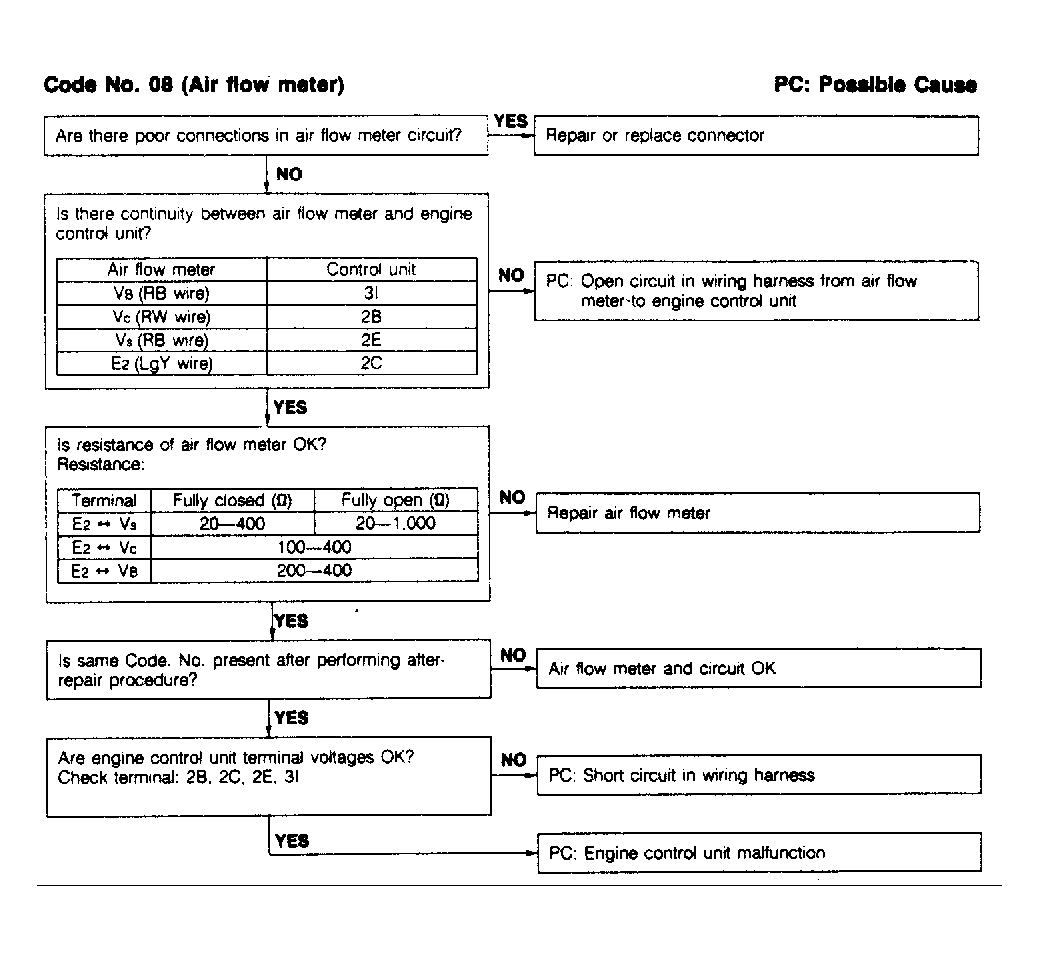

Fig 2: Code No. 8 - Air Flow Meter

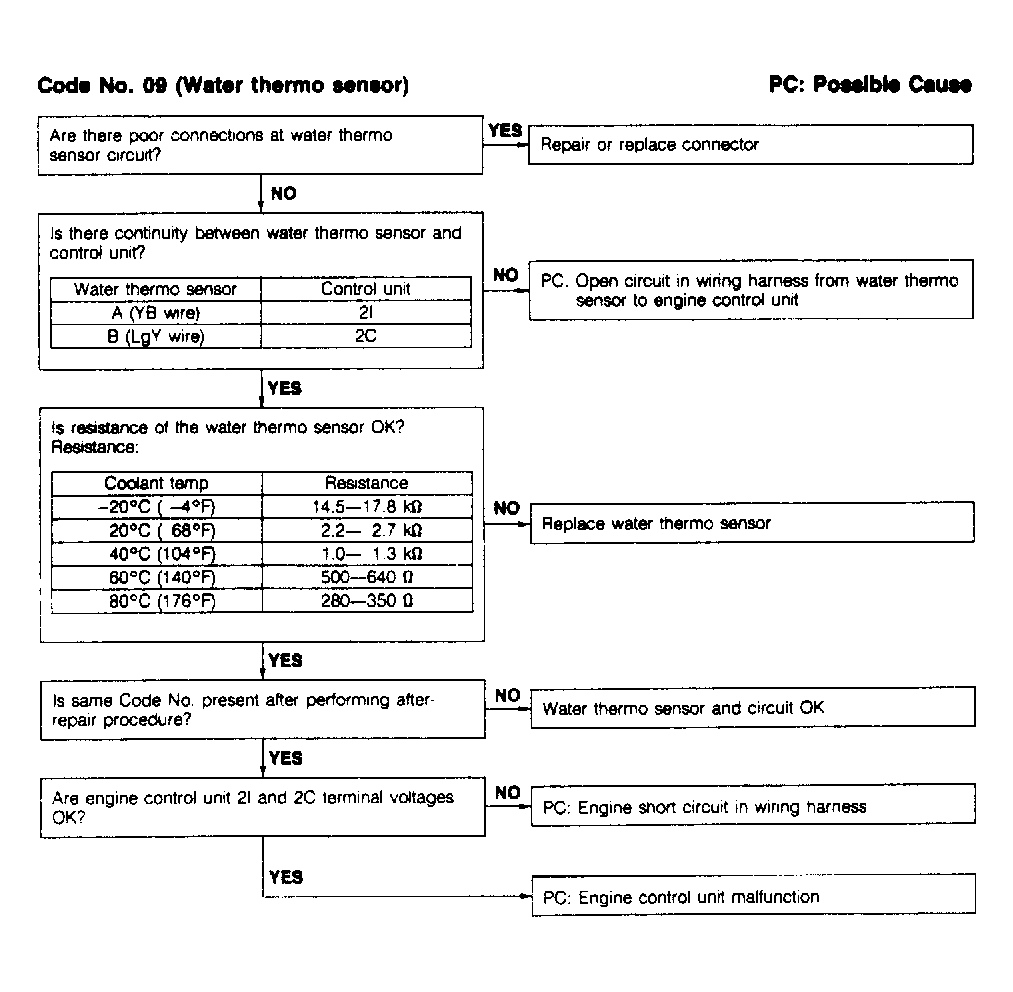

Fig 3: Code No. 9 - Water Thermo Sensor

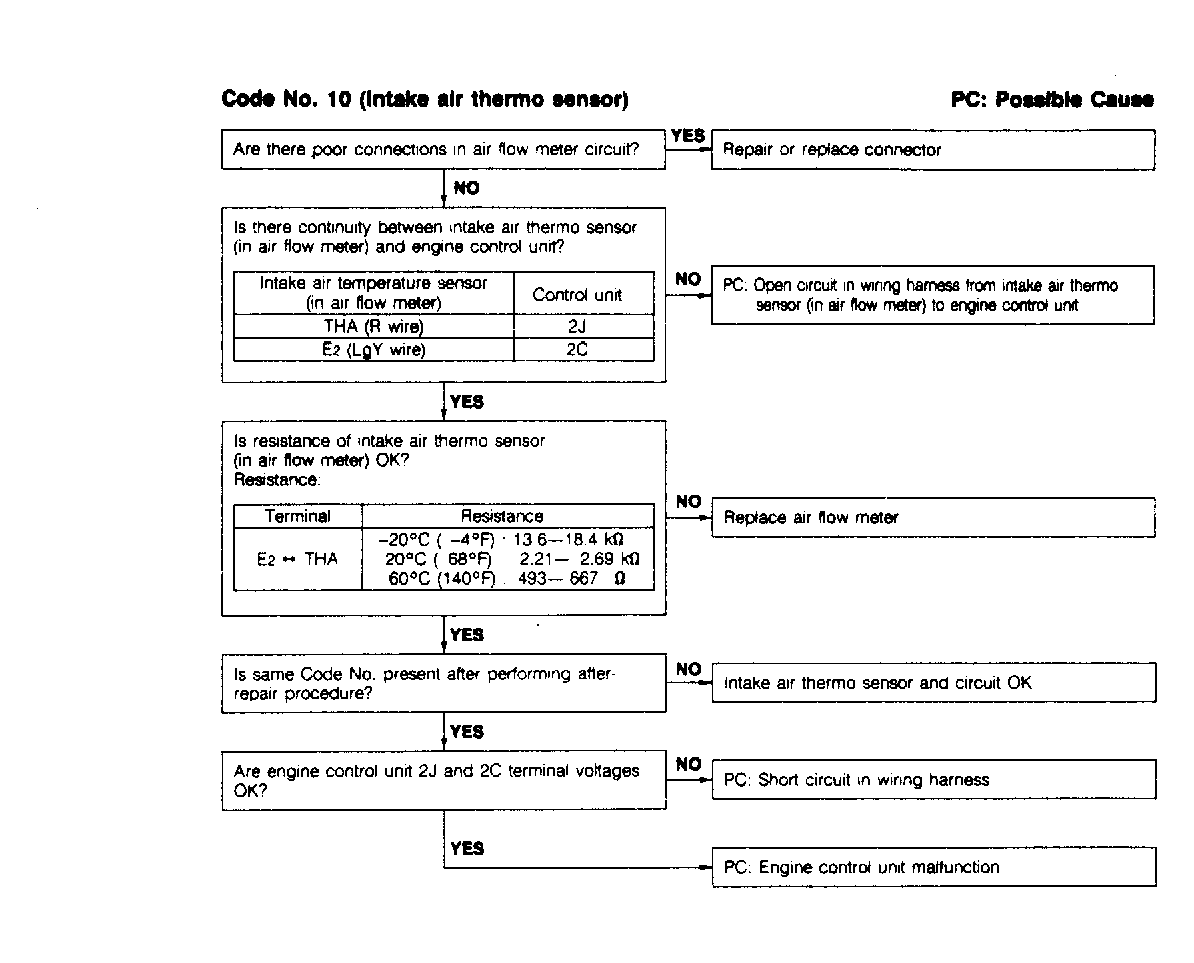

Fig 4: Code No. 10 - Intake Air Thermo Sensor

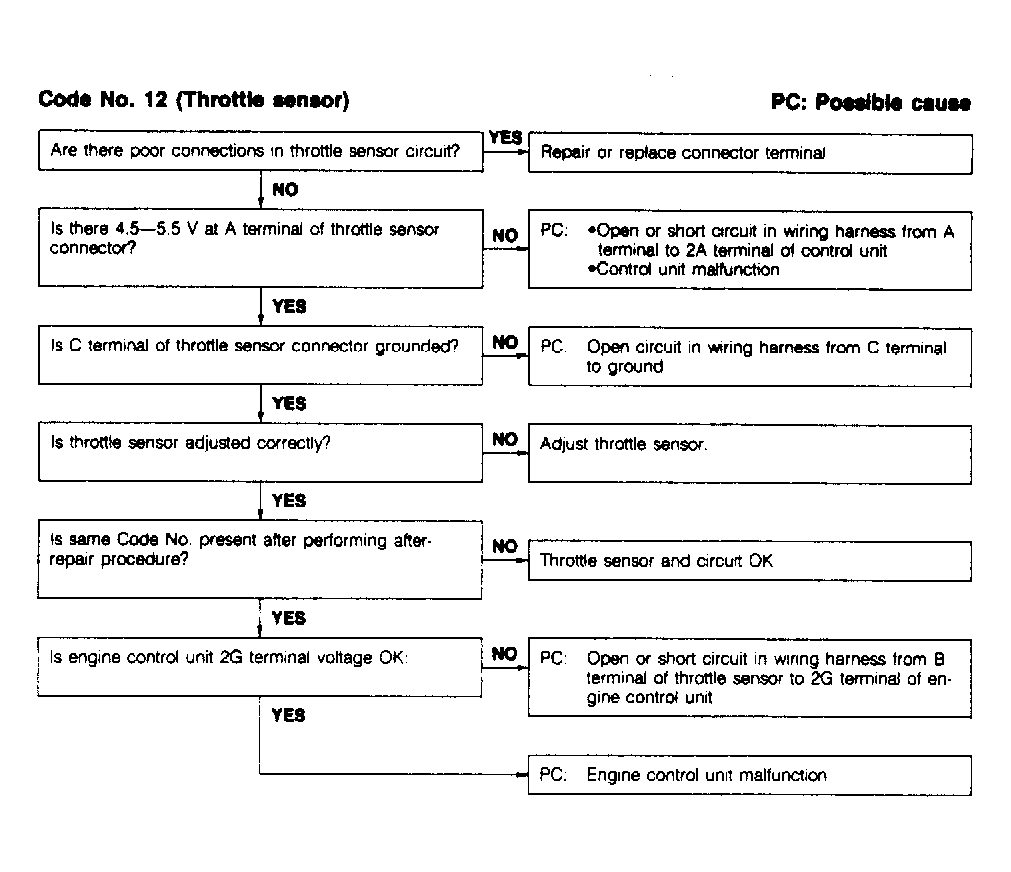

Fig 5: Code No. 12 - Throttle Sensor

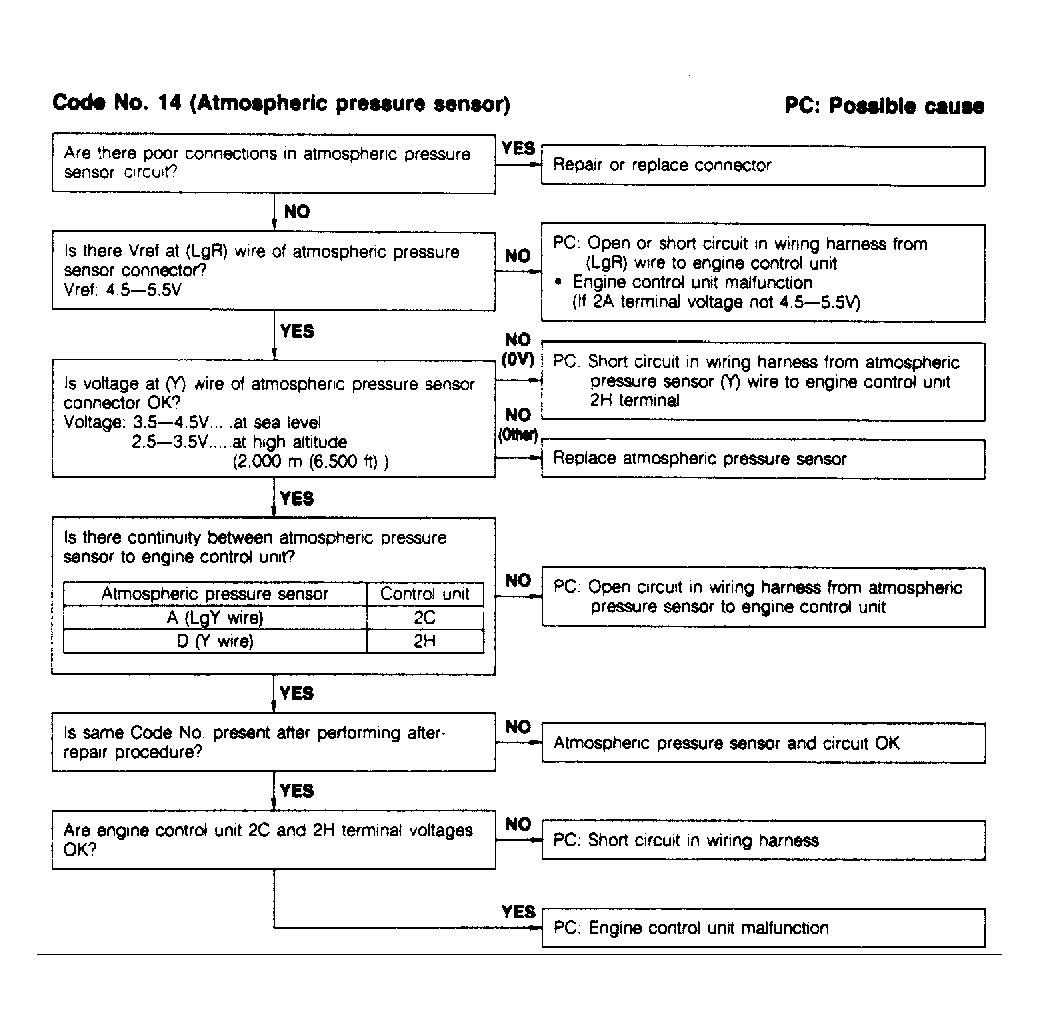

Fig 6: Code No. 14 - Atmospheric Pressure Sensor

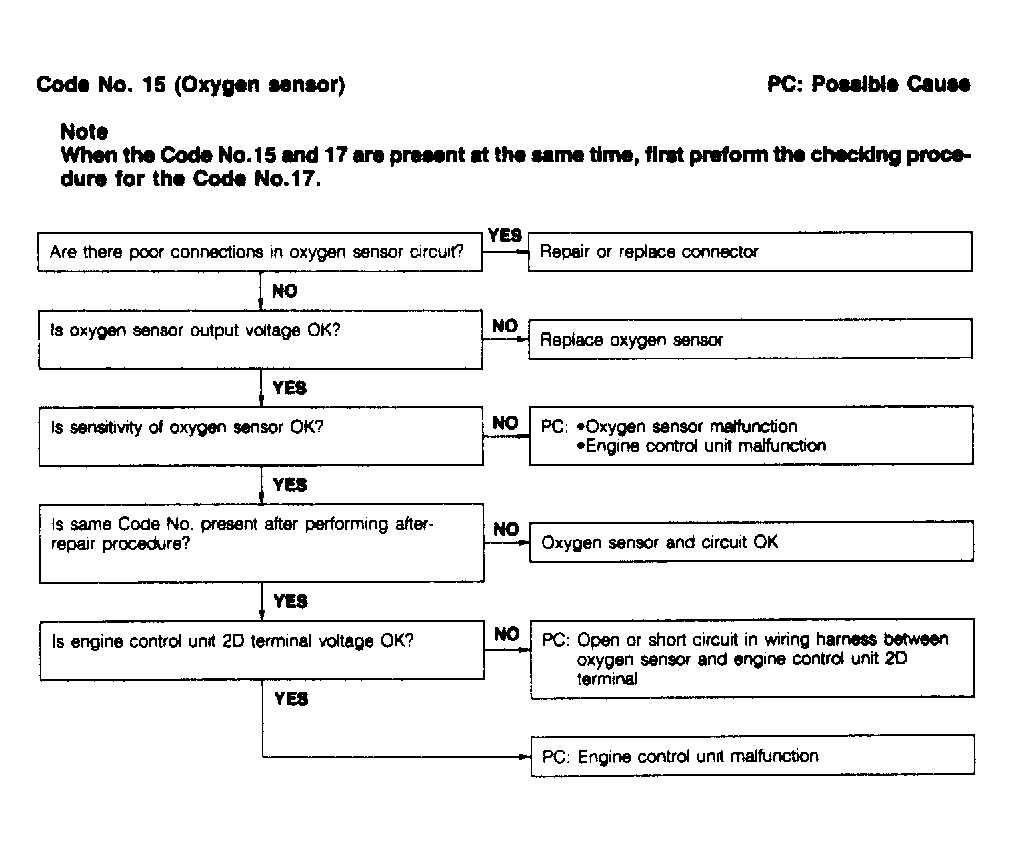

Fig 7: Code No. 15 - Oxygen Sensor

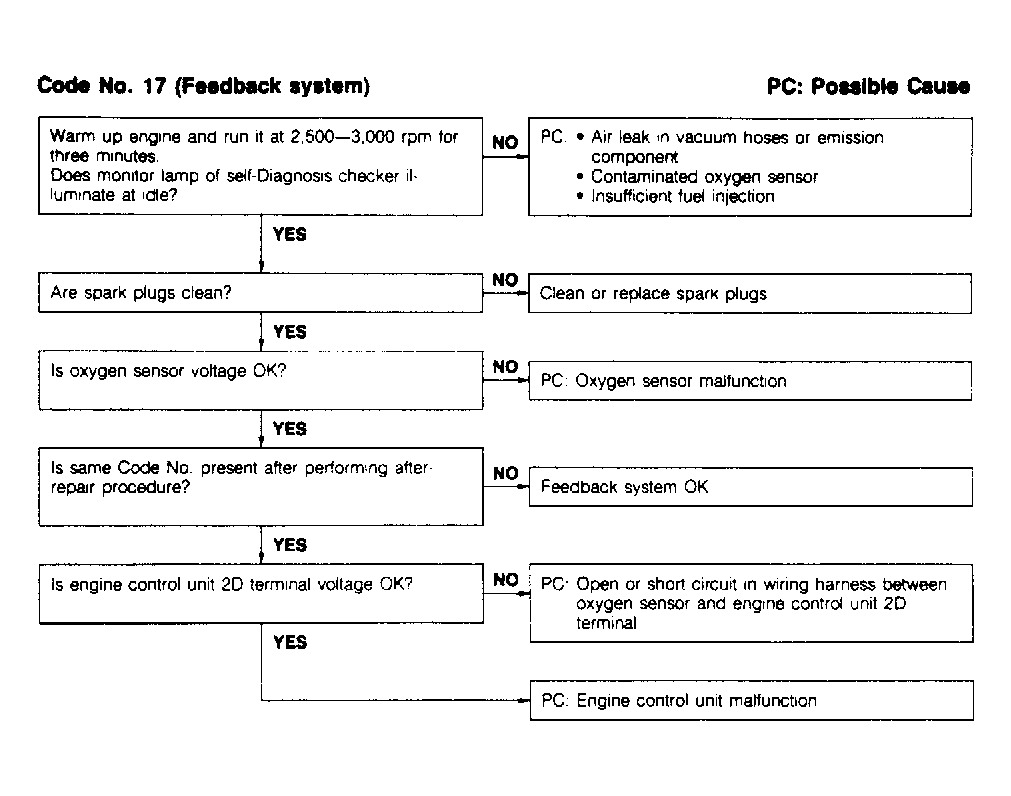

Fig 8: Code No. 17 - Feedback System

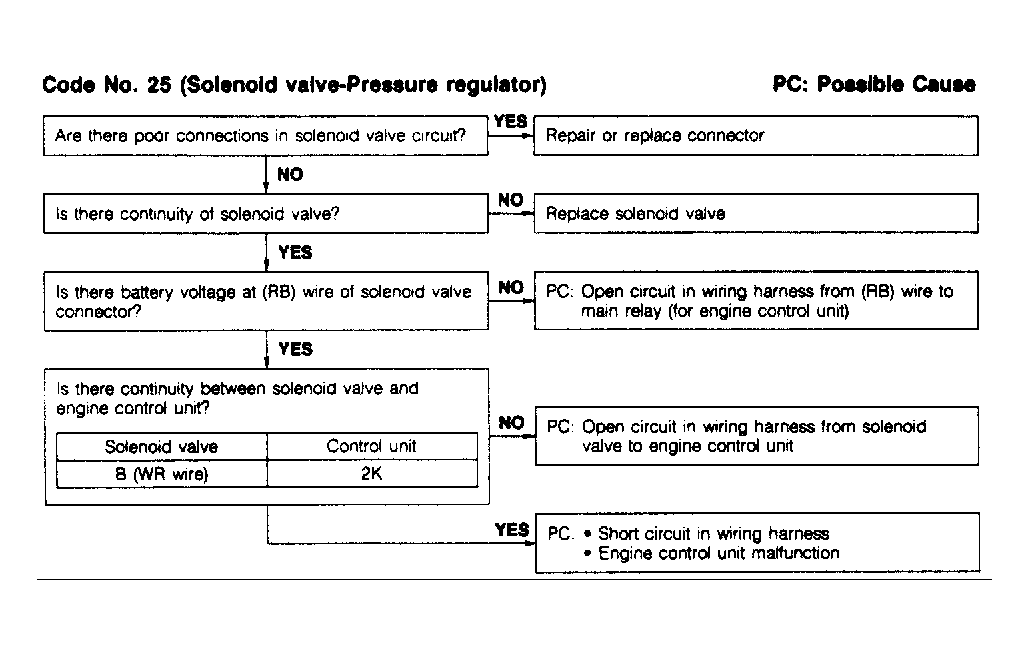

Fig 9: Code No. 25 - Solenoid Valve - Pressure Regulator

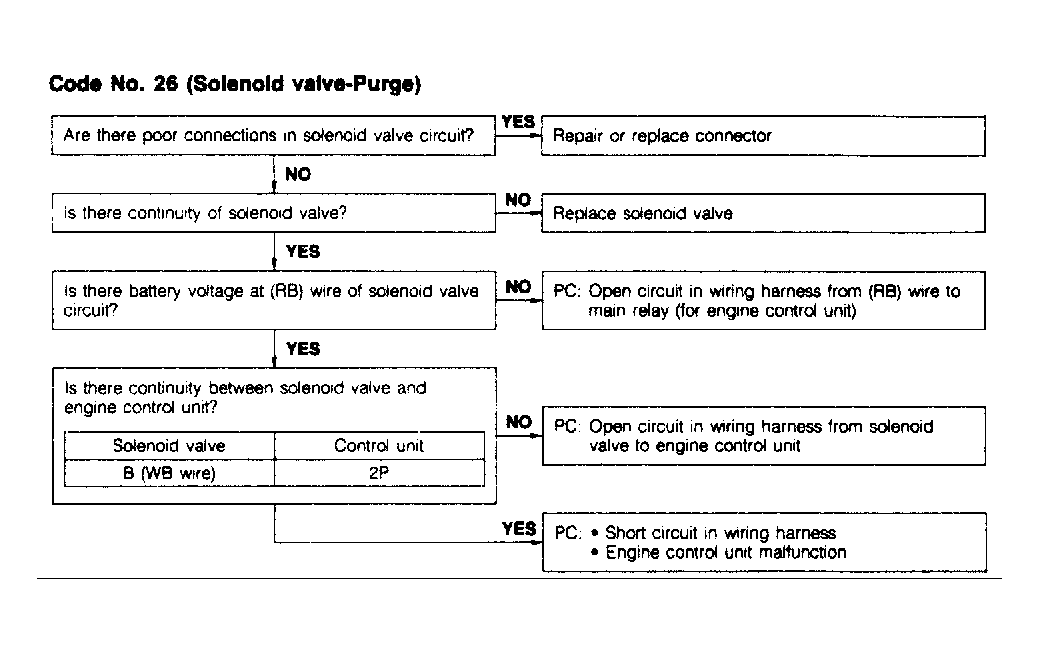

Fig 10: Code No. 26 - Solenoid Valve - Purge

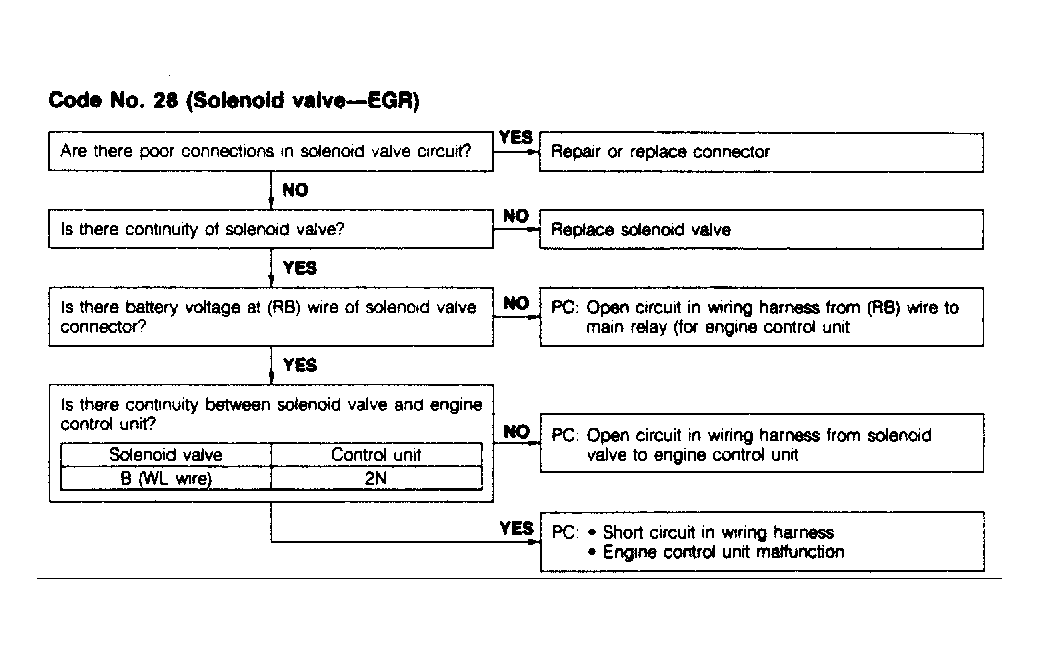

Fig 11: Code No. 28 - Solenoid Valve - EGR

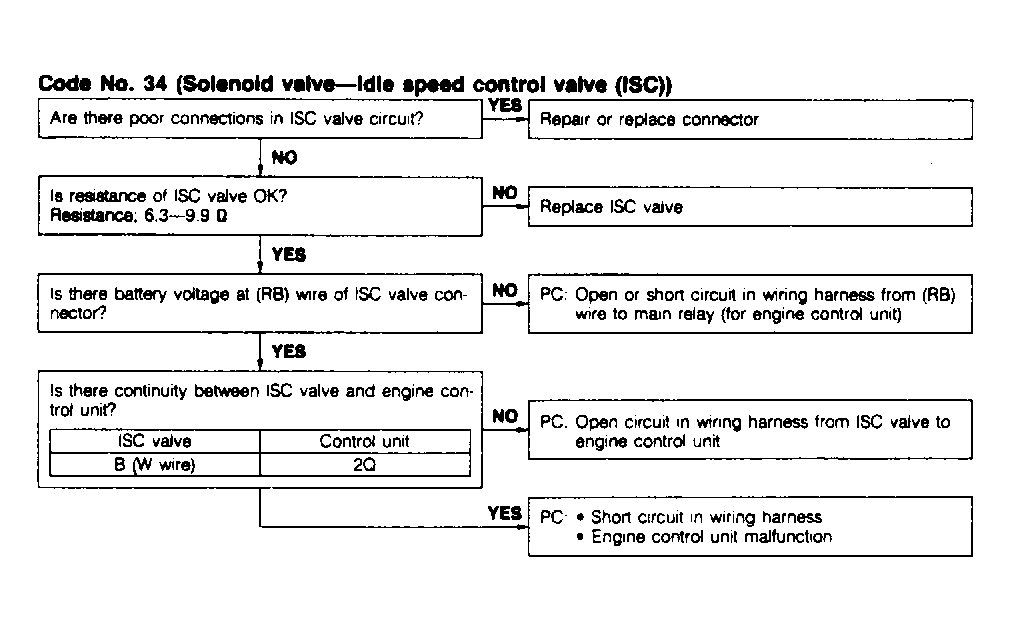

Fig 12: Code No. 34 - Solenoid Valve - Idle Control Valve (ISC)
