Trouble Code Id

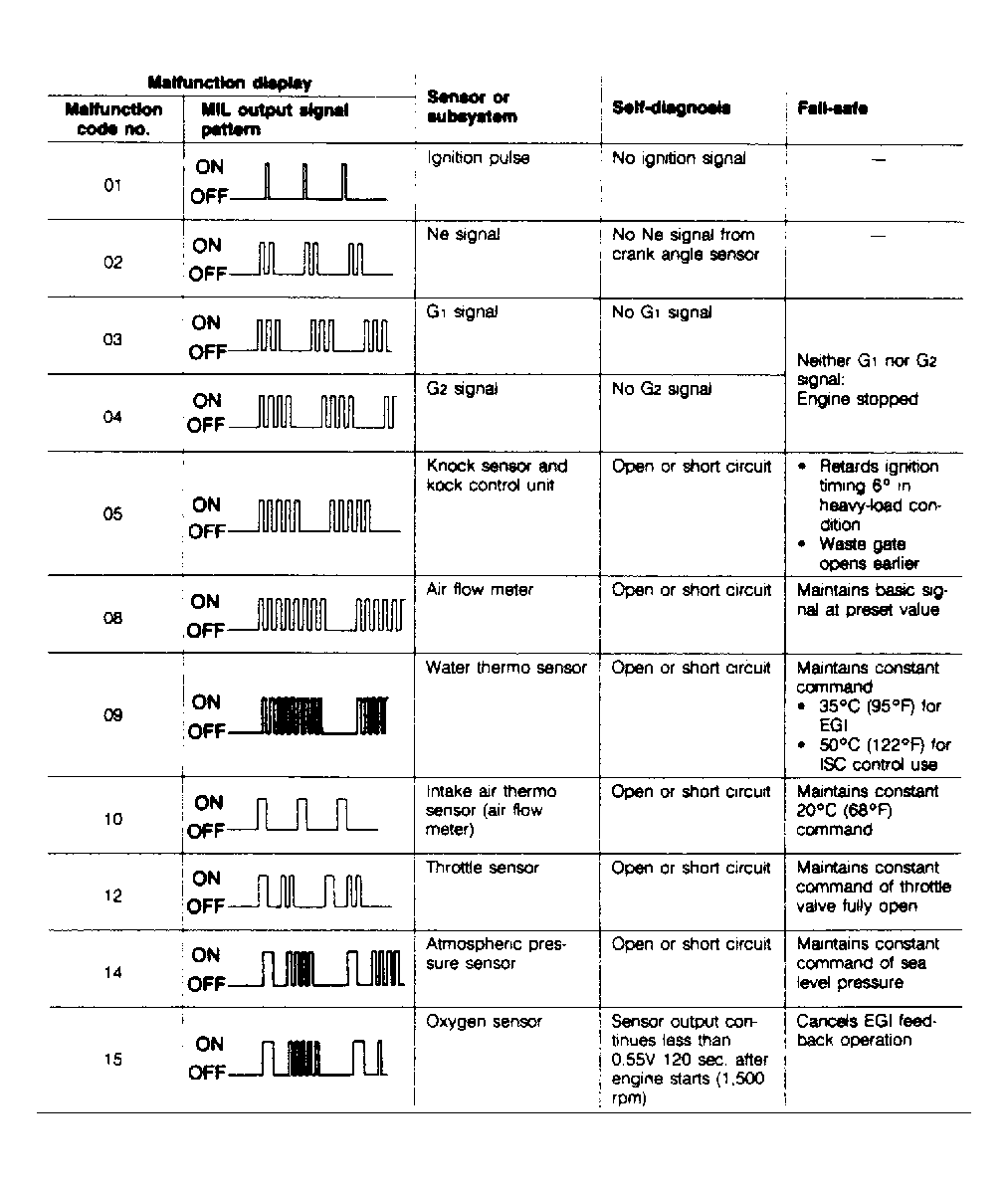

Fig 1: MX-6 & 626 Trouble Code Identification (1 of 2)

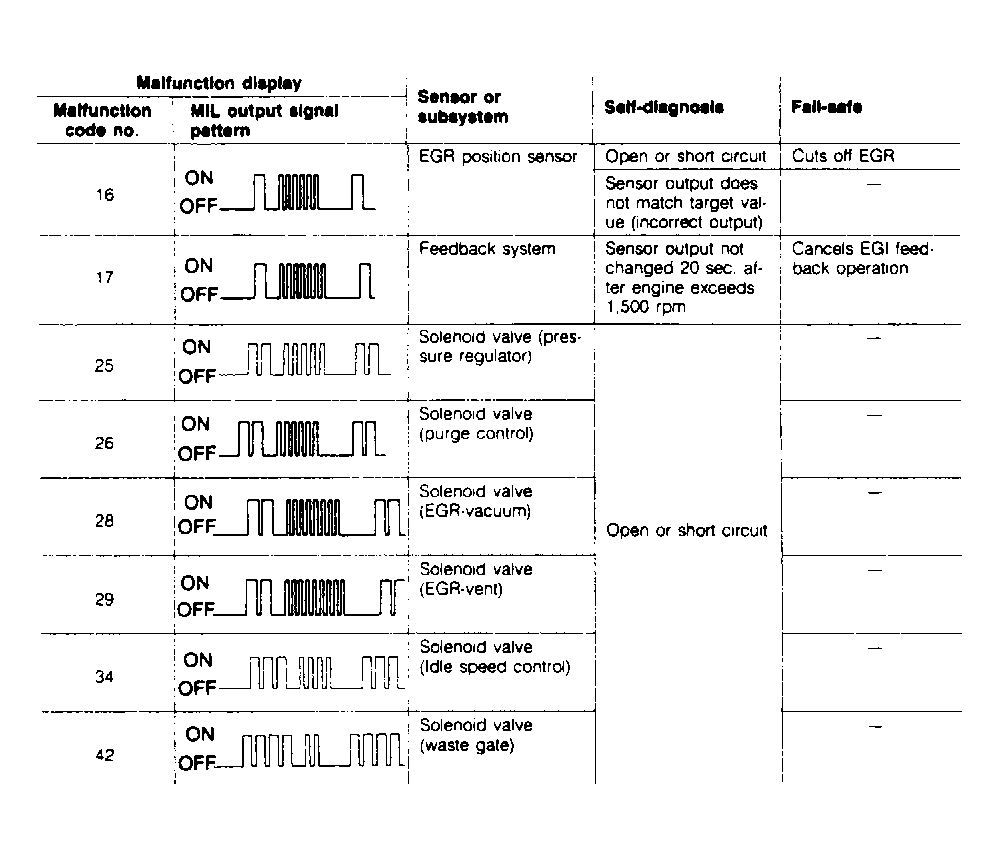

Fig 2: MX-6 & 626 Trouble Code Identification (2 of 2)
