Turbo Codes

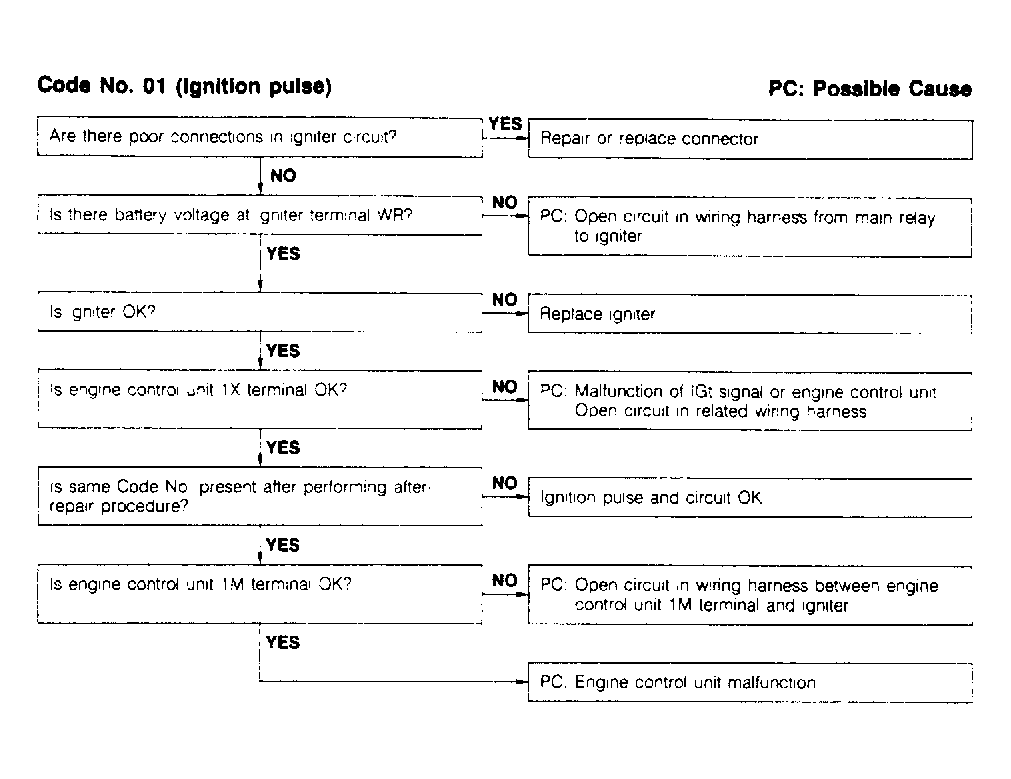

Fig 1: Code No. 1 - Ignition Pulse

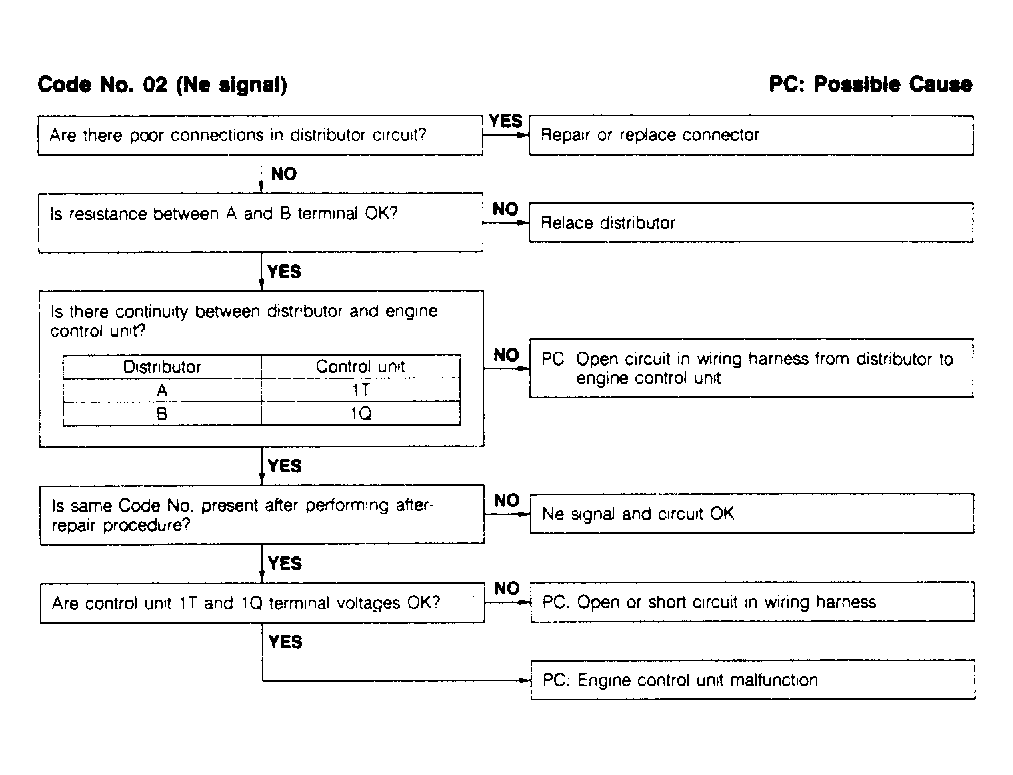

Fig 2: Code No. 2 - No Signal

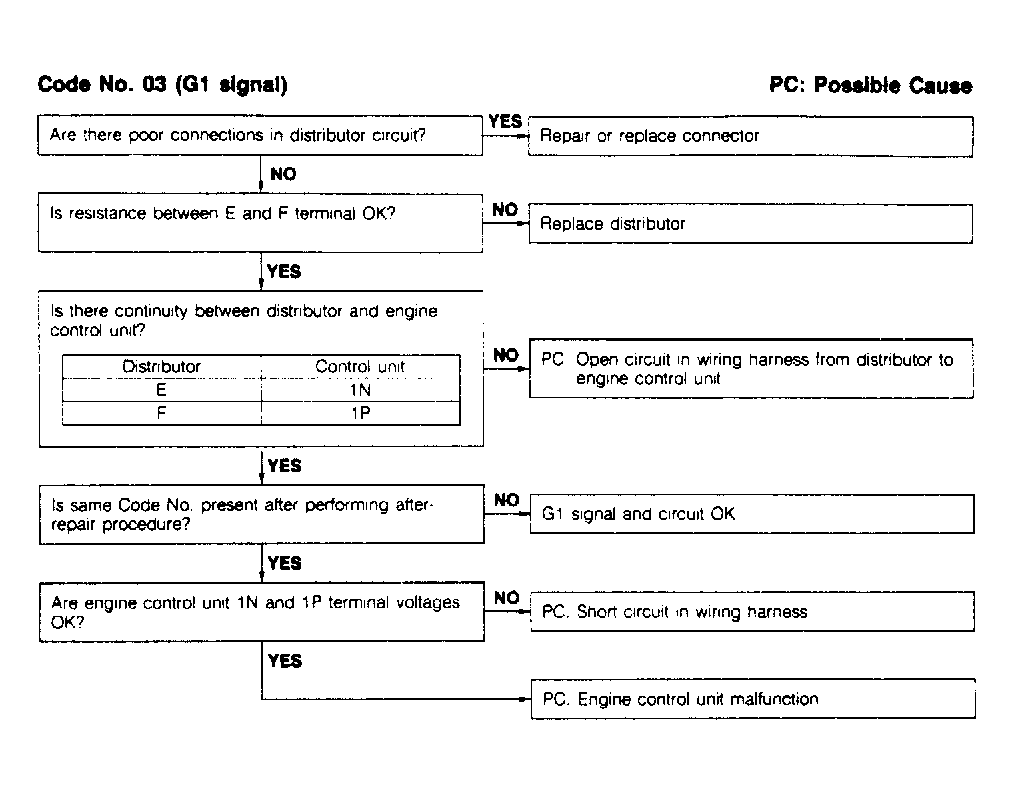

Fig 3: Code No. 3 - G1 Signal

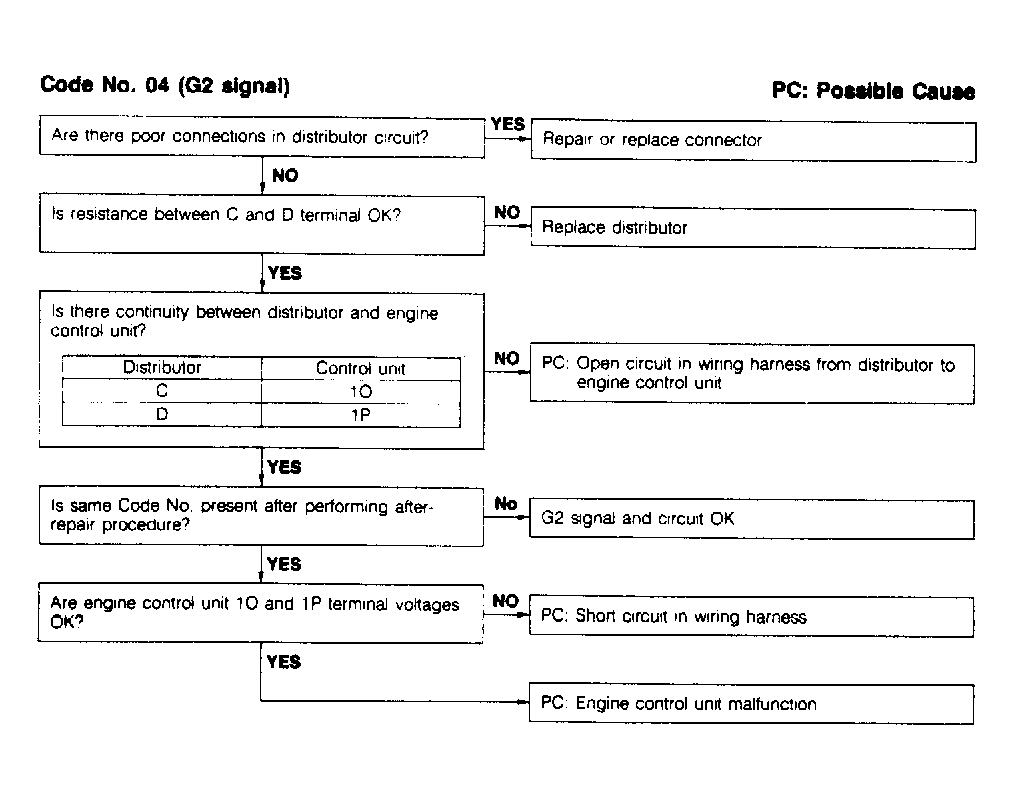

Fig 4: Code No. 4 - G2 Signal

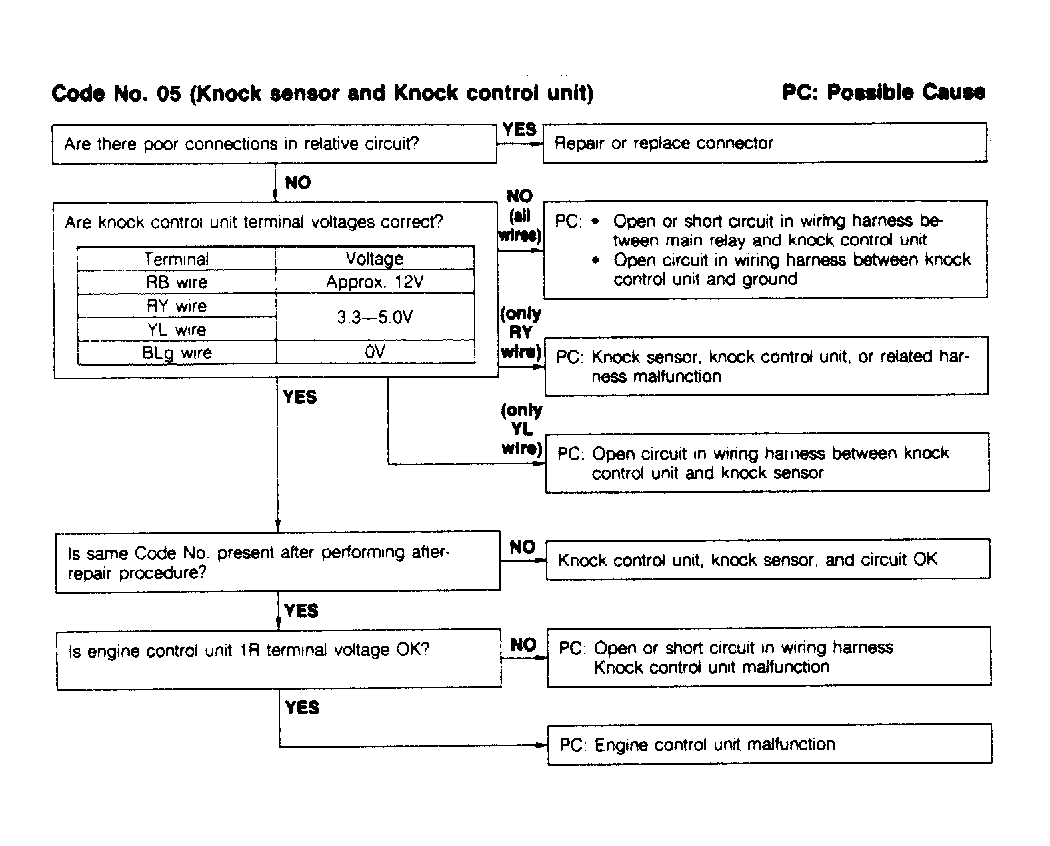

Fig 5: Code No. 5 - Knock Sensor & Knock Control Unit

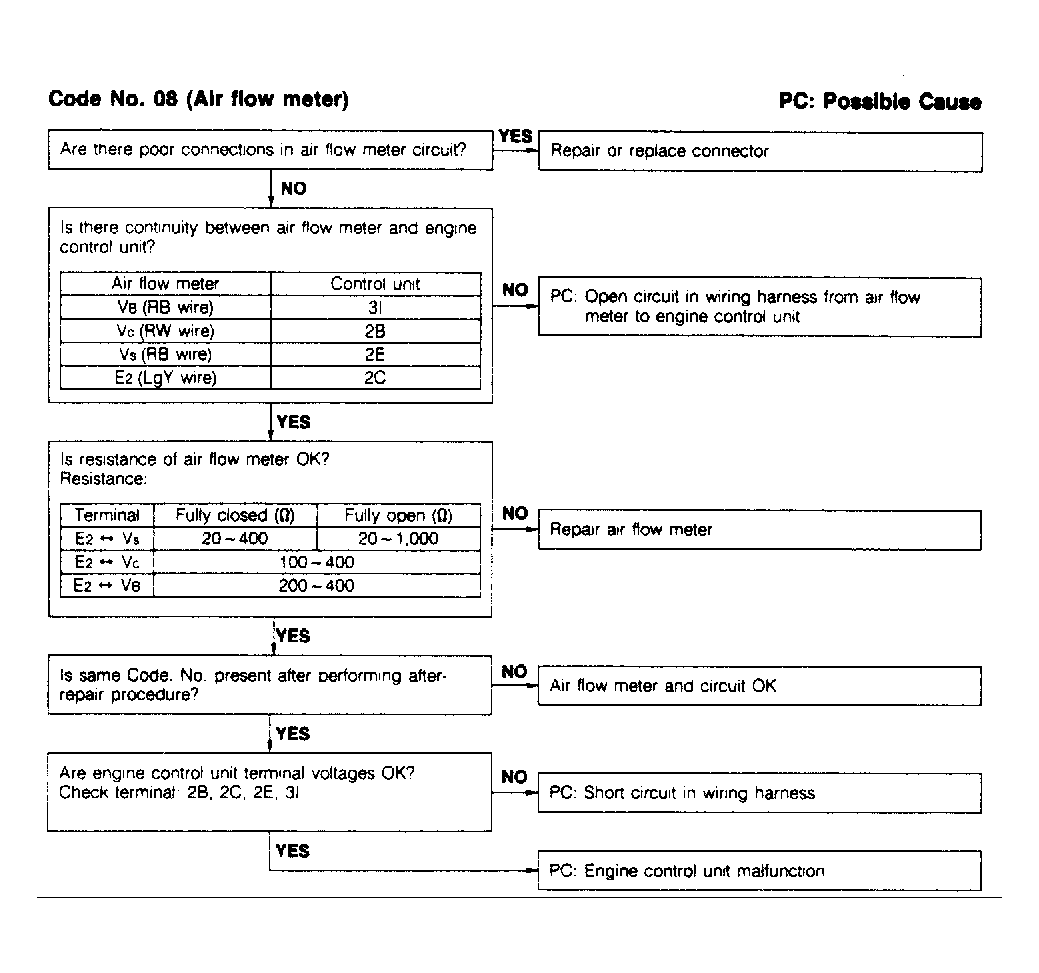

Fig 6: Code No. 8 - Air Flow Meter

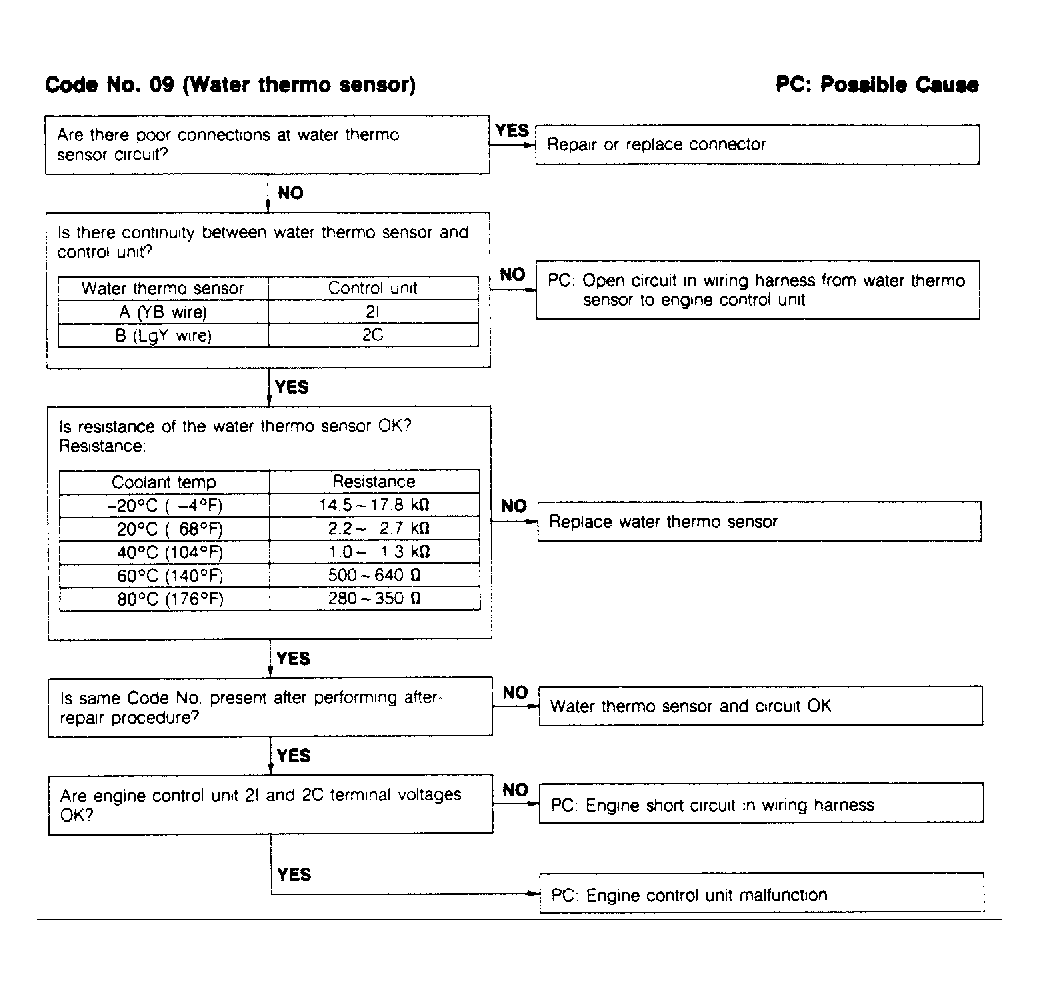

Fig 7: Code No. 9 - Water Thermo Sensor

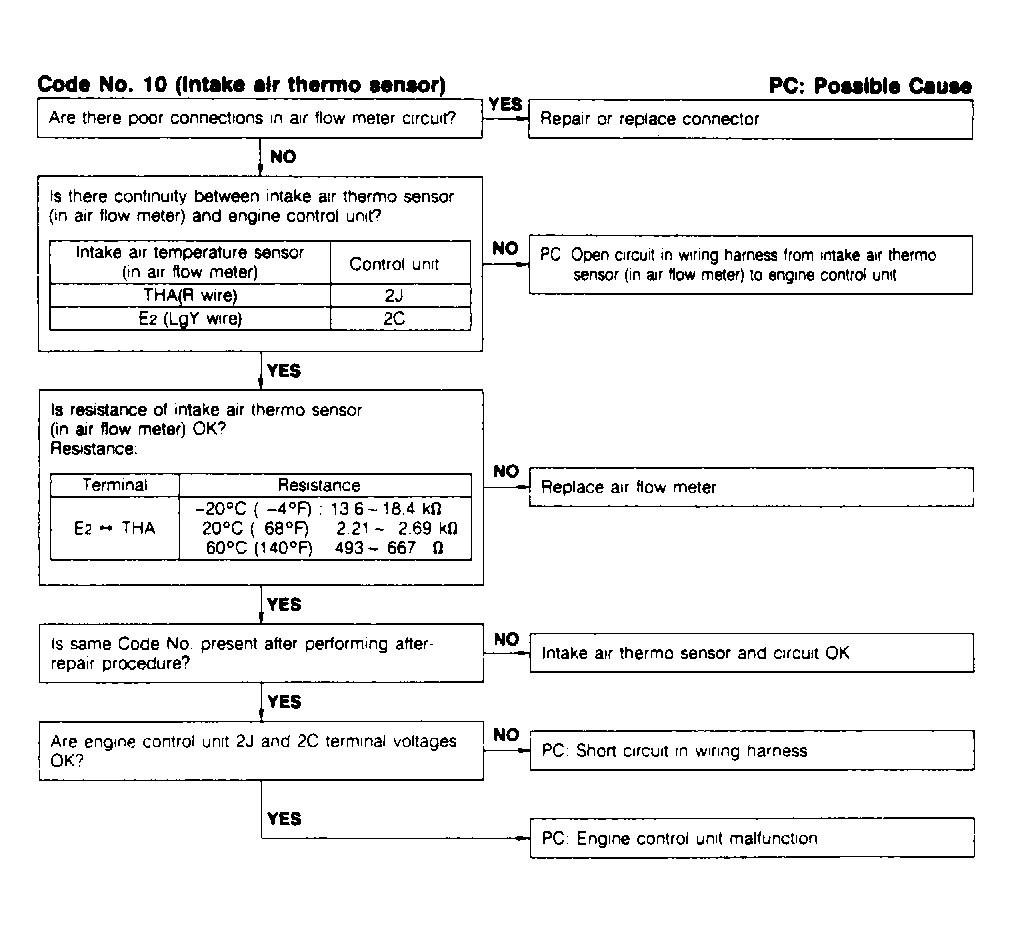

Fig 8: Code No. 10 - Intake Air Thermo Sensor

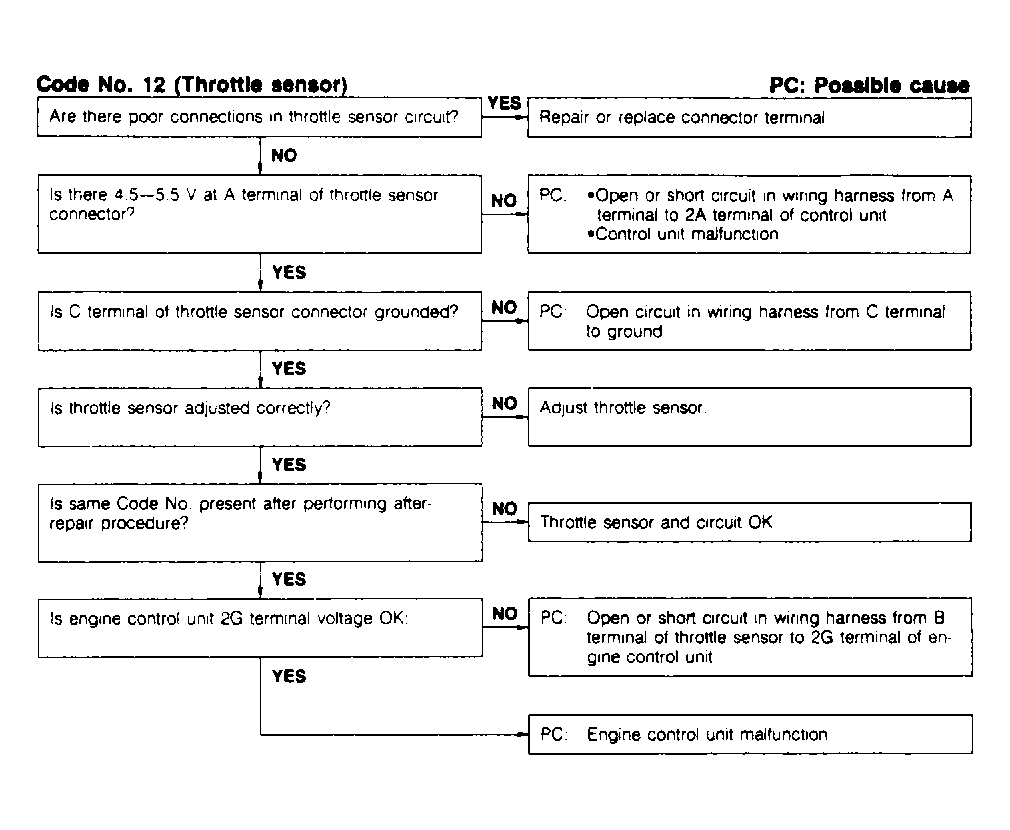

Fig 9: Code No. 12 - Throttle Sensor

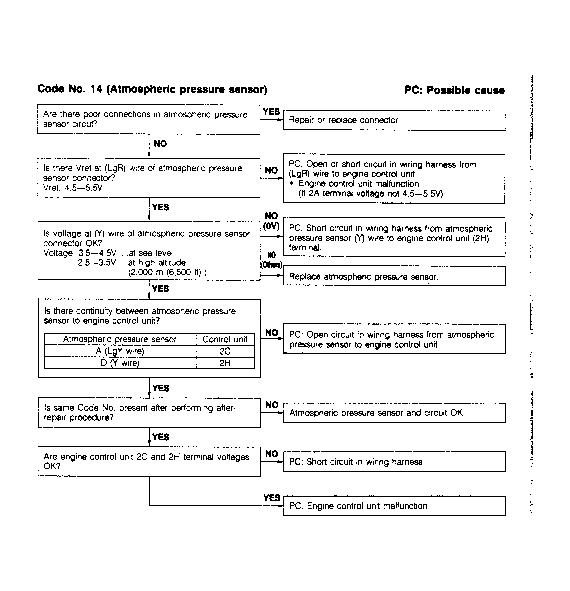

Fig 10: Code No. 14 - Atmospheric Pressure Sensor

NOTE: When the code No. 15 and 17 are present at the same time, first perform the checking procedure for Code No. 17.

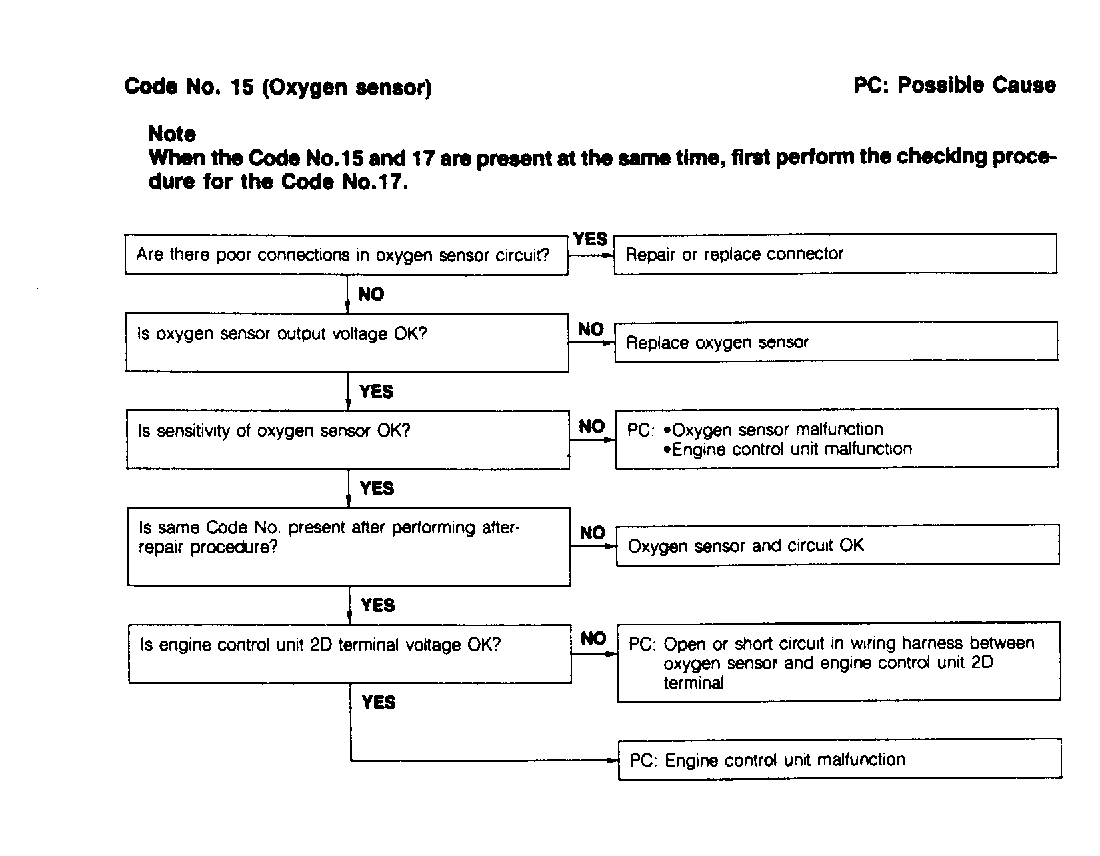

Fig 11: Code No. 15 - Oxygen Sensor

Fig 12: Code No. 16 - EGR Position Sensor

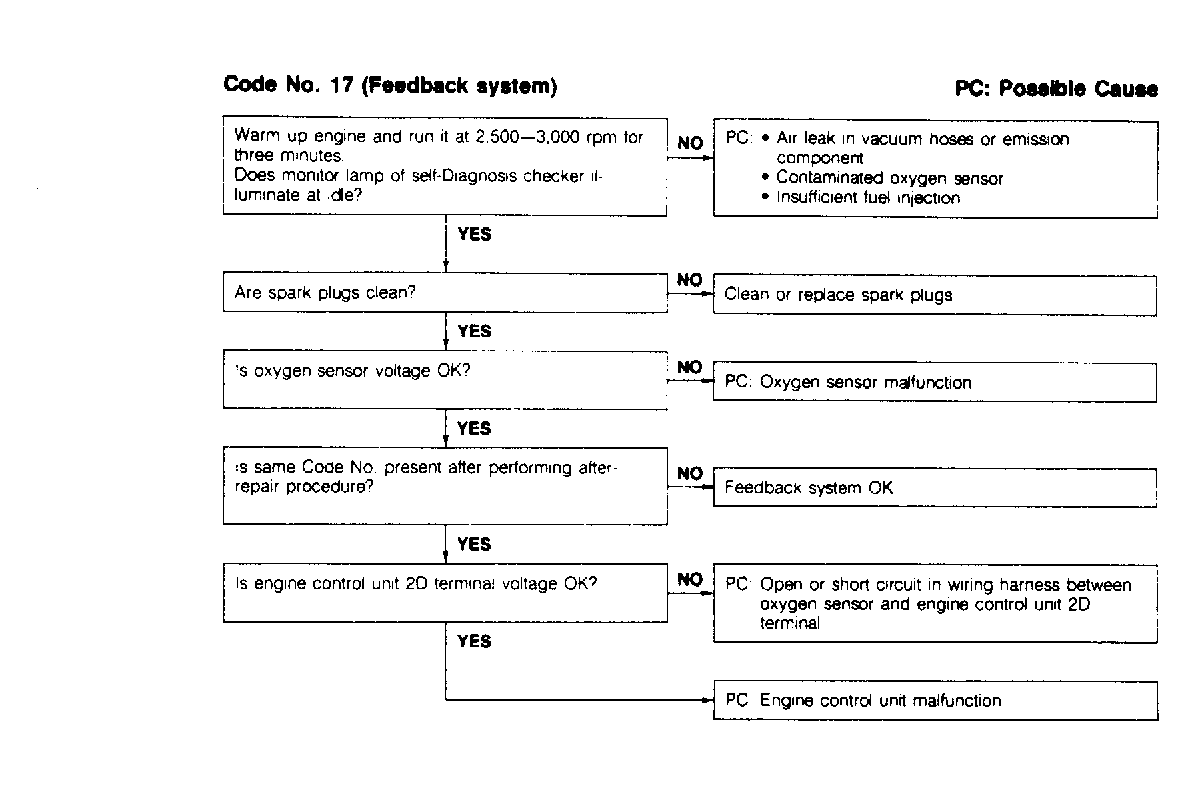

Fig 13: Code No. 17 - Feedback System

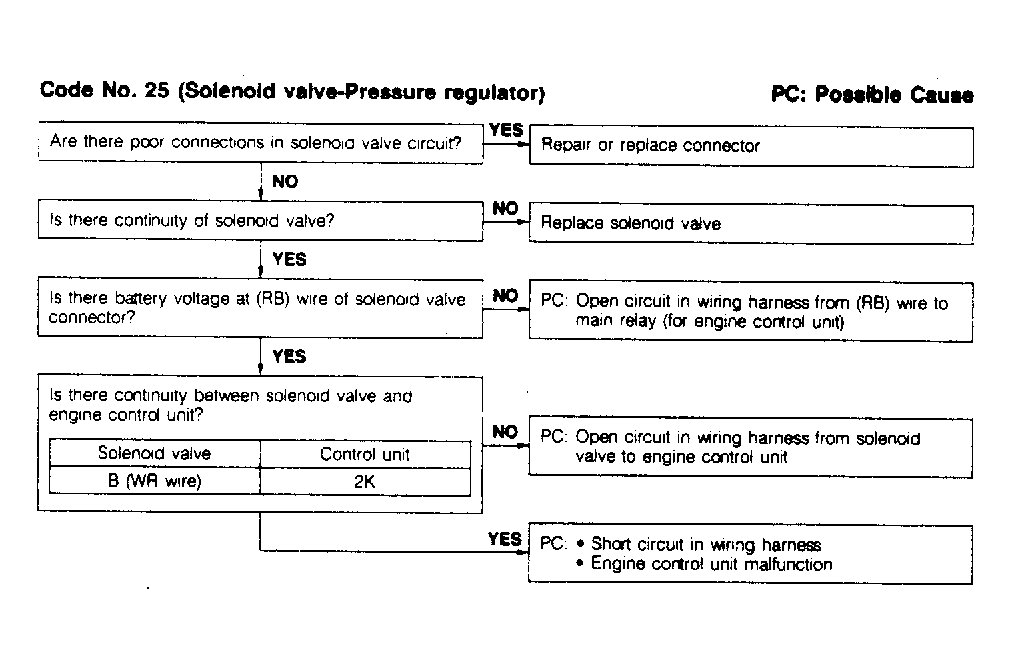

Fig 14: Code No. 25 - Solenoid Valve-Pressure Regulator

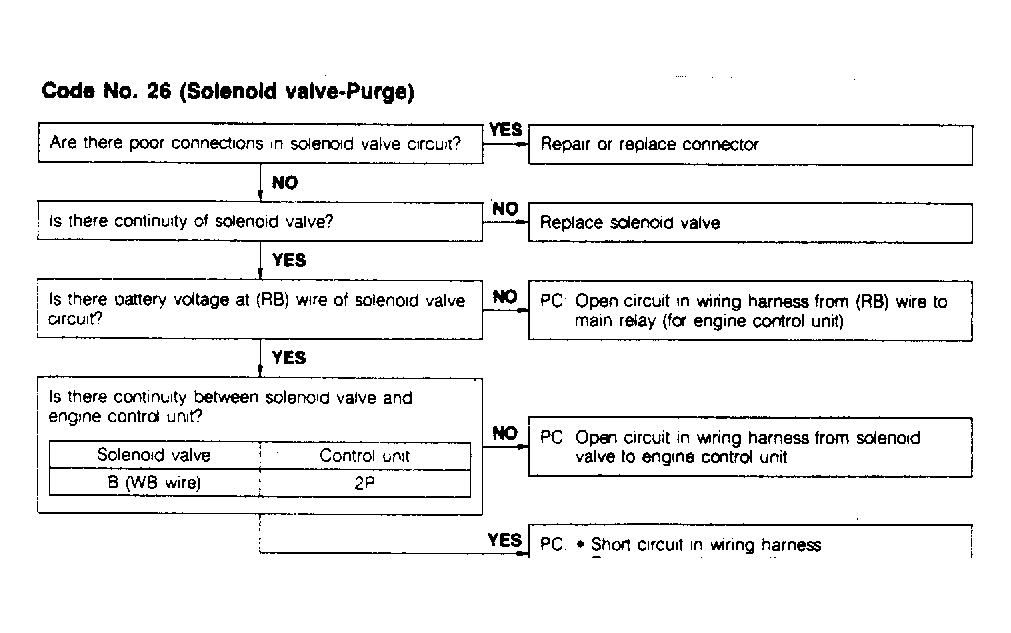

Fig 15: Code No. 26 - Solenoid Valve-Purge

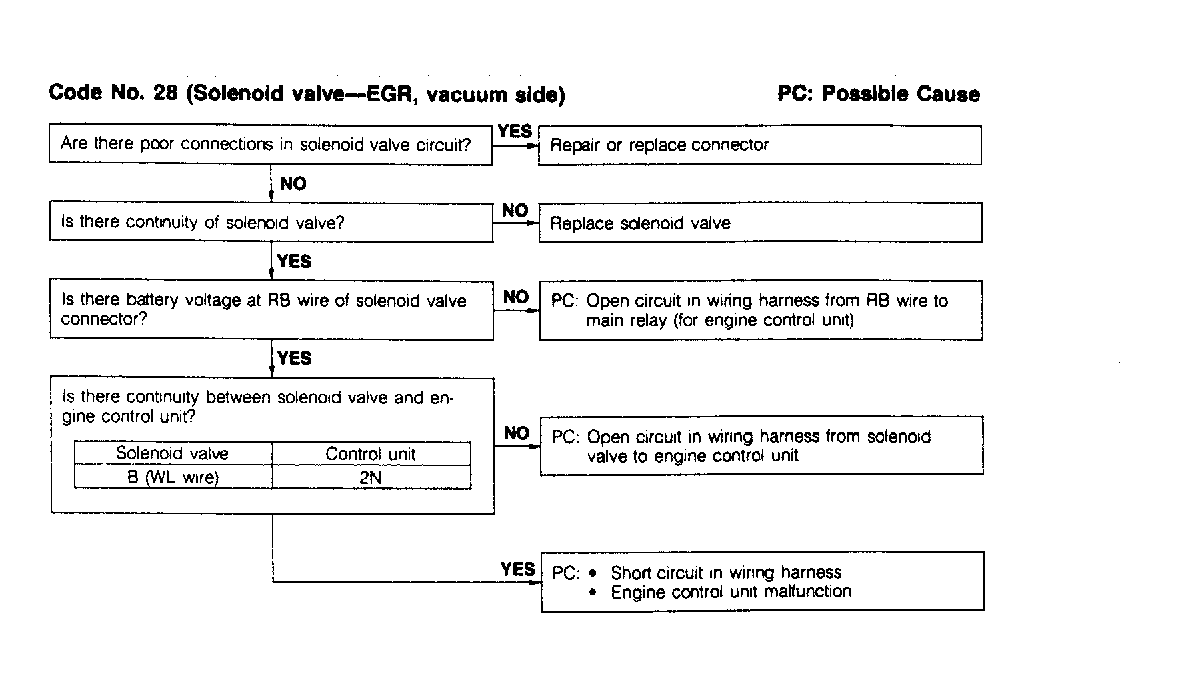

Fig 16: Code No. 28 - Solenoid Valve - EGR, Vacuum Side

Fig 17: Code No. 29 - Solenoid Valve - EGR, Vent Side

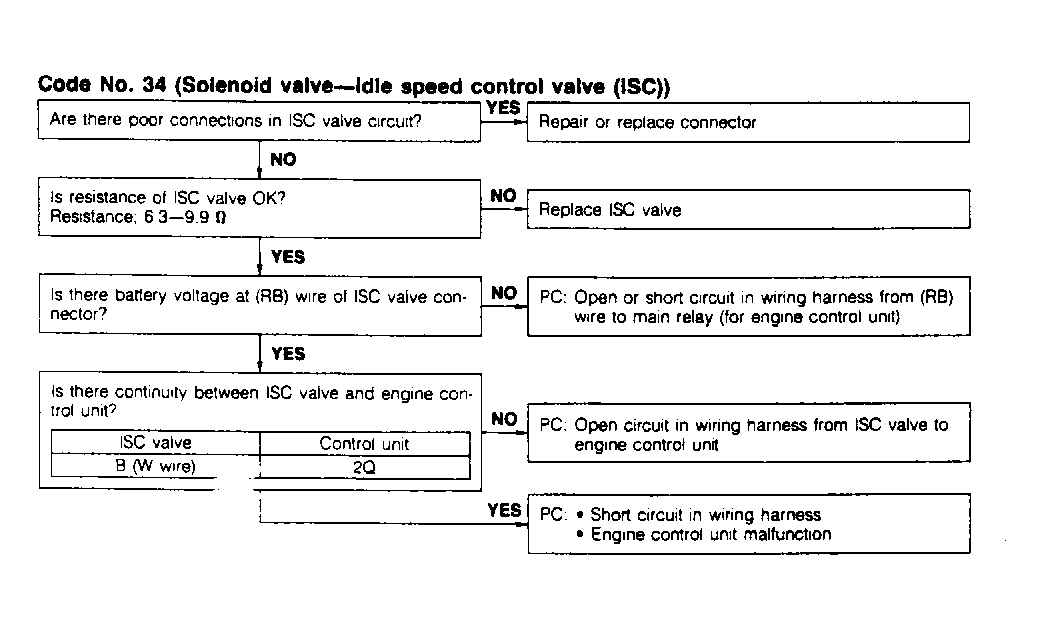

Fig 18: Code No. 34 - Solenoid Valve - Idle Speed Control Valve (ISC)

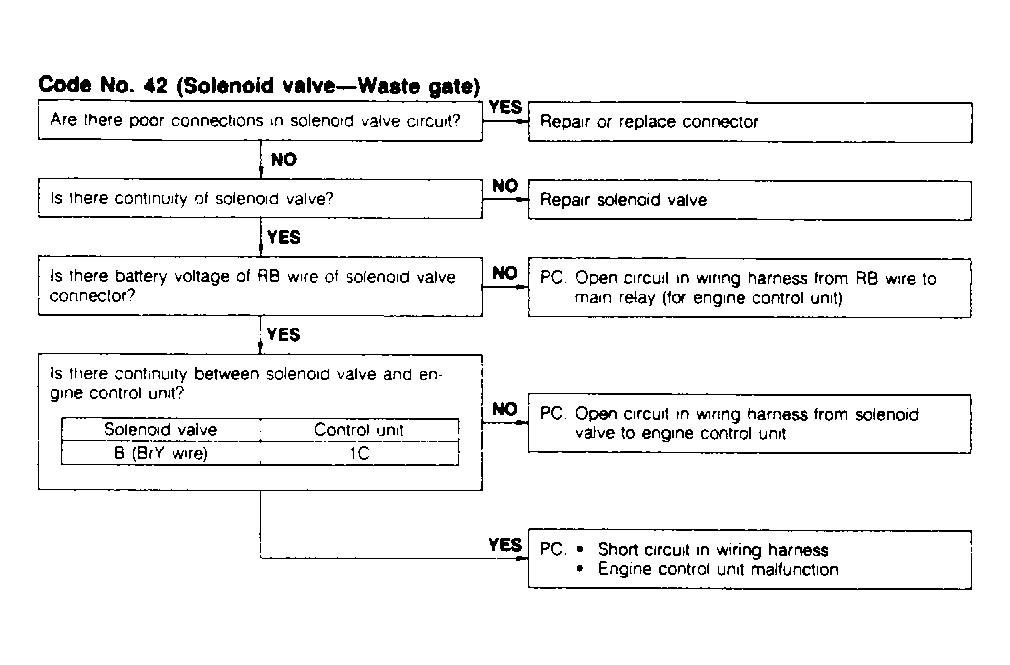

Fig 19: Code No. 42 - Solenoid Valve - Waste Gate
