Crank Angle Sensor (929)

Disconnect crank angle sensor connector from distributor. Measure resistance between terminals indicated in CRANK ANGLE SENSOR  table. See Fig 1 . If resistance is not as indicated, replace distributor assembly.

2) If ignition coil resistance and crank angle sensor test okay, check for SPARK. If spark is still not available, go to next test.

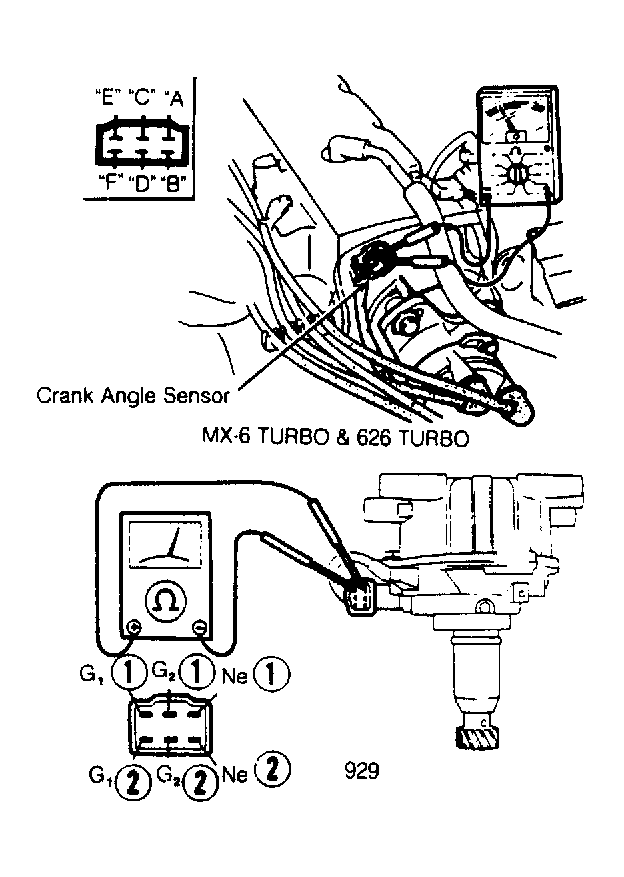

Fig 1: Checking 929 Crank Angle Sensor

Courtesy of MAZDA MOTORS CORP.
