Mixture Control Valve

Start engine. Block intake port of mixture control valve. Engine speed should not change. See Fig 1 . Increase engine speed and quickly decelerate. Verify air is drawn into intake port for one to 2 seconds after accelerator is released. Replace defective valve.

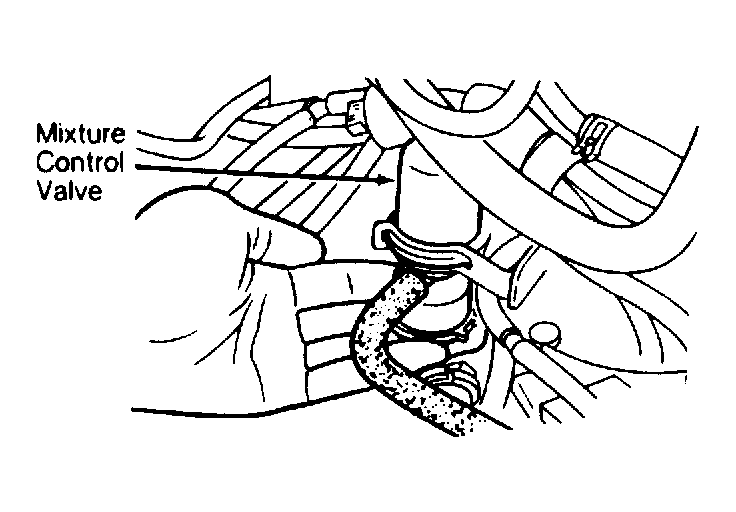

Fig 1: Checking Mixture Control Valve
G117739Courtesy of MAZDA MOTORS CORP.
