PTC Heater System: Notes

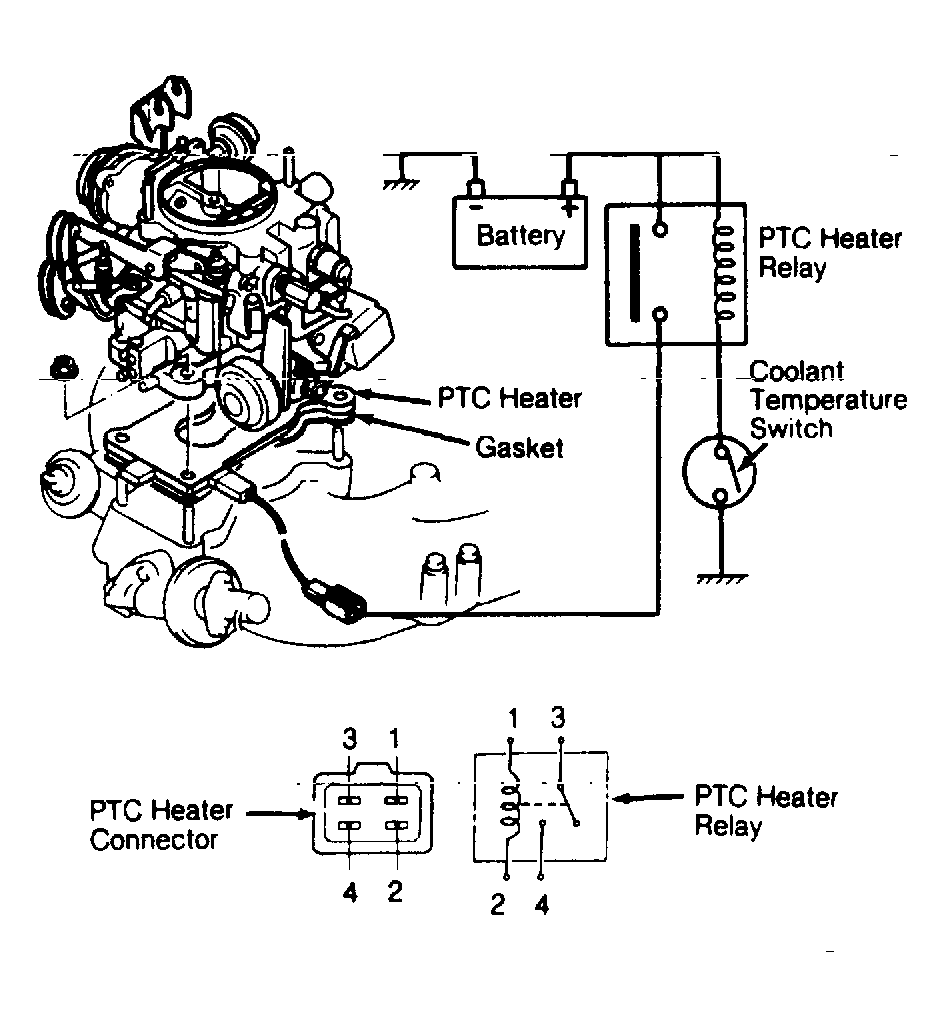

Disconnect PTC heater connector. Connect an ohmmeter between connector and intake manifold (ground) and verify continuity. See Figure .
