System/Component Tests: Turbocharger: WASTEGATE

1. Engine must be cool. Remove exhaust manifold insulator and side insulator. Remove hose connected to actuator and connect compressed air source with pressure gauge. See Fig 1 .
2. Apply compressed air to actuator. Apply 10 psi (0.7 kg/cm² ). Verify actuator rod moves when connecting and disconnecting hose supplying compressed air.

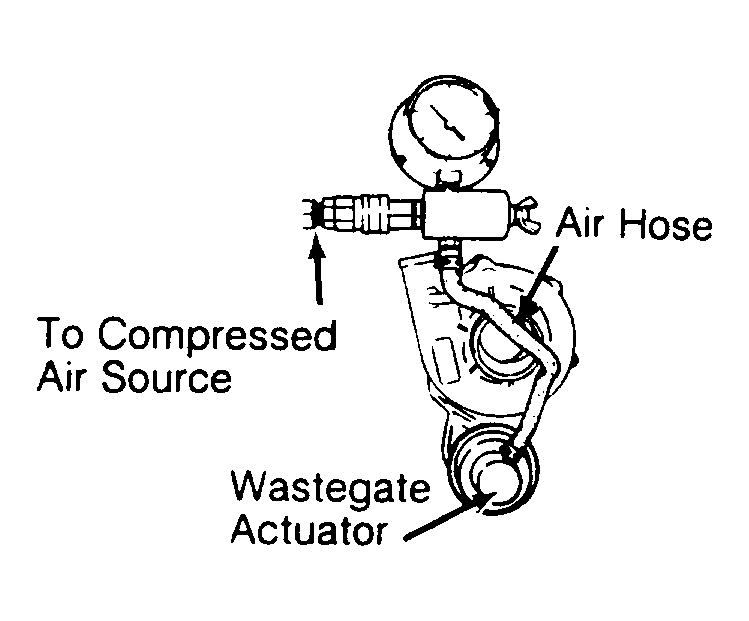

Fig 1: Testing Wastegate Actuator

Courtesy of MAZDA MOTORS CORP.

CAUTION: Do not apply compressed air over 14 psi (1.0 kg/cm² ).
