Code Charts

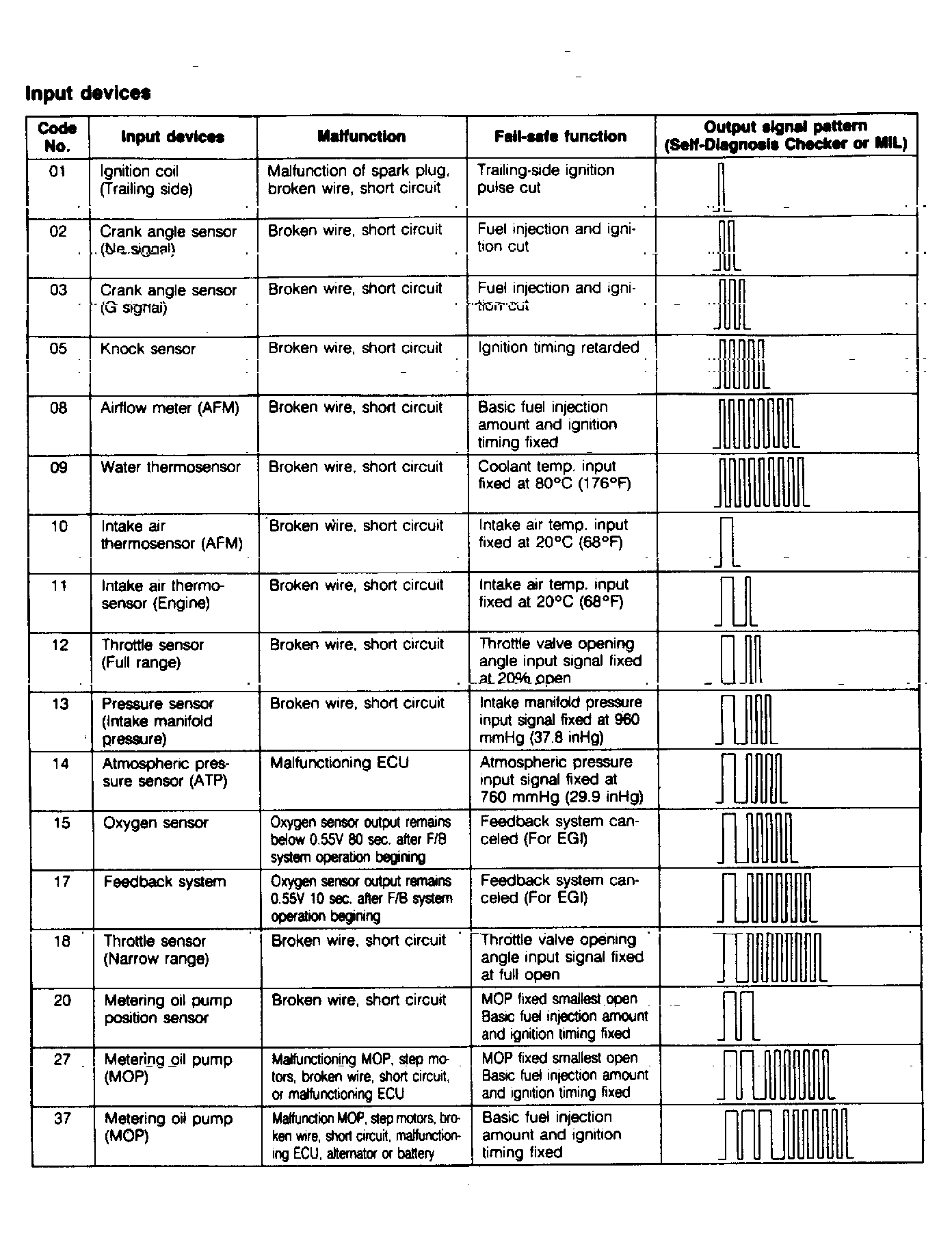

Fig 1: RX7 Trouble Code Identification (1 of 2)

G117674

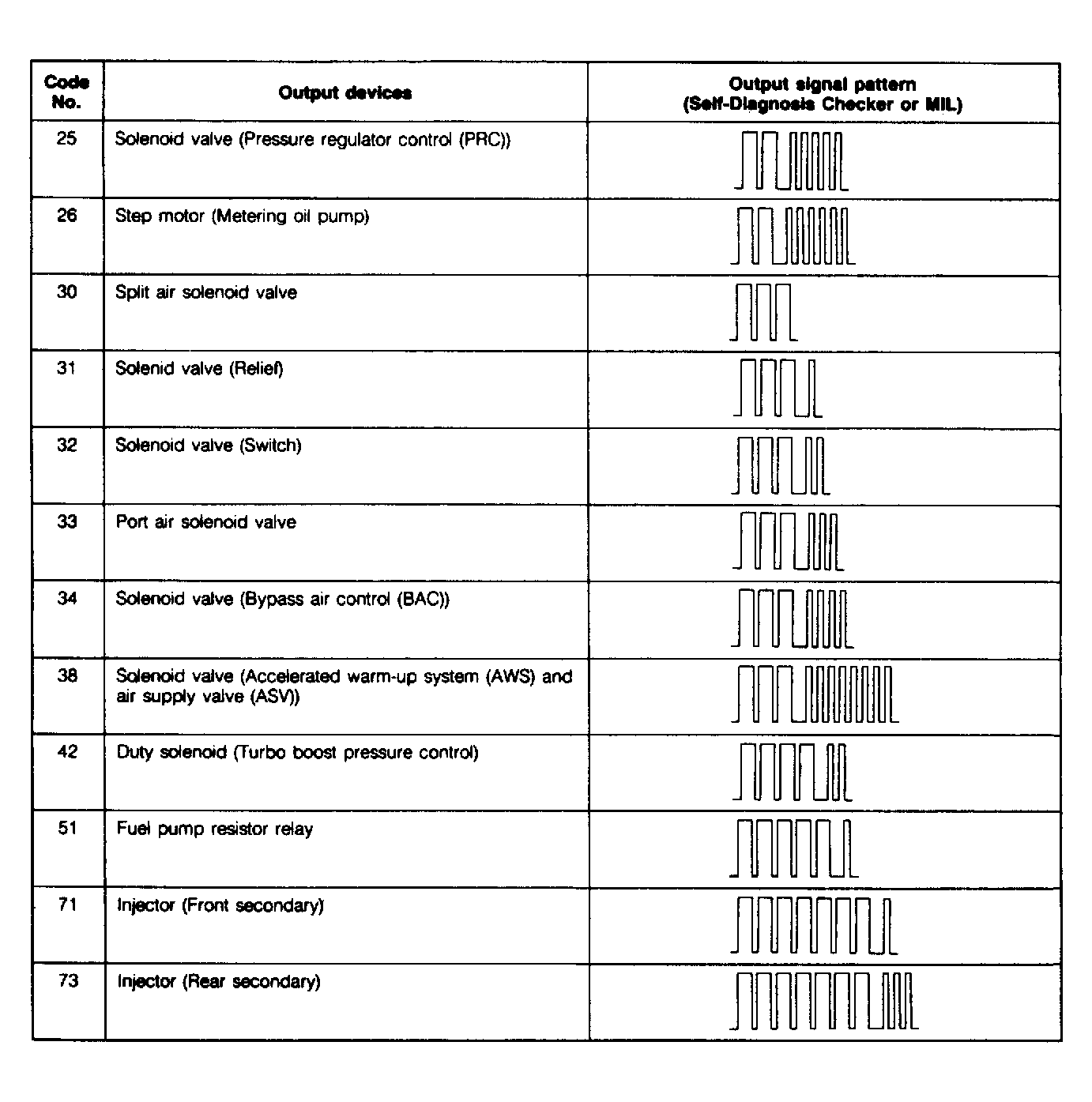

Fig 2: RX7 Trouble Code Identification (2 of 2)

G117675
