Turbo Trouble Codes

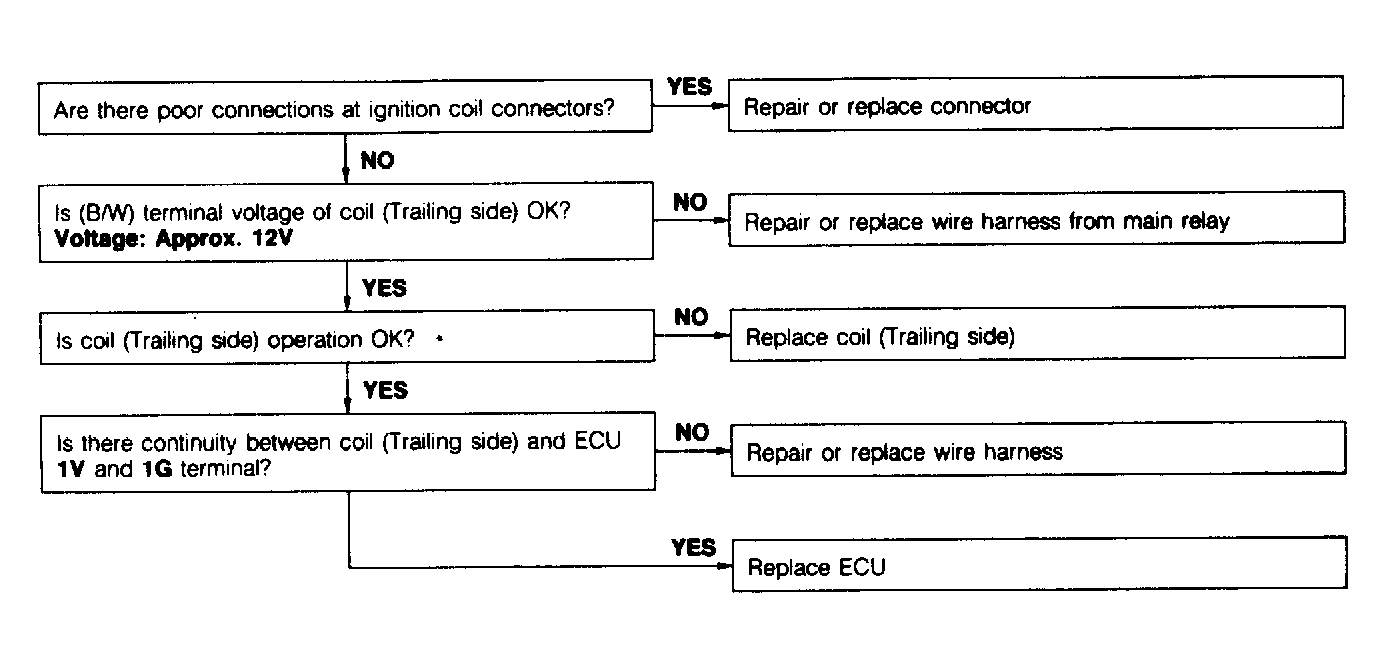

Fig 1: Code No. 1 - Ignition Coil (Trailing Side)

G117703

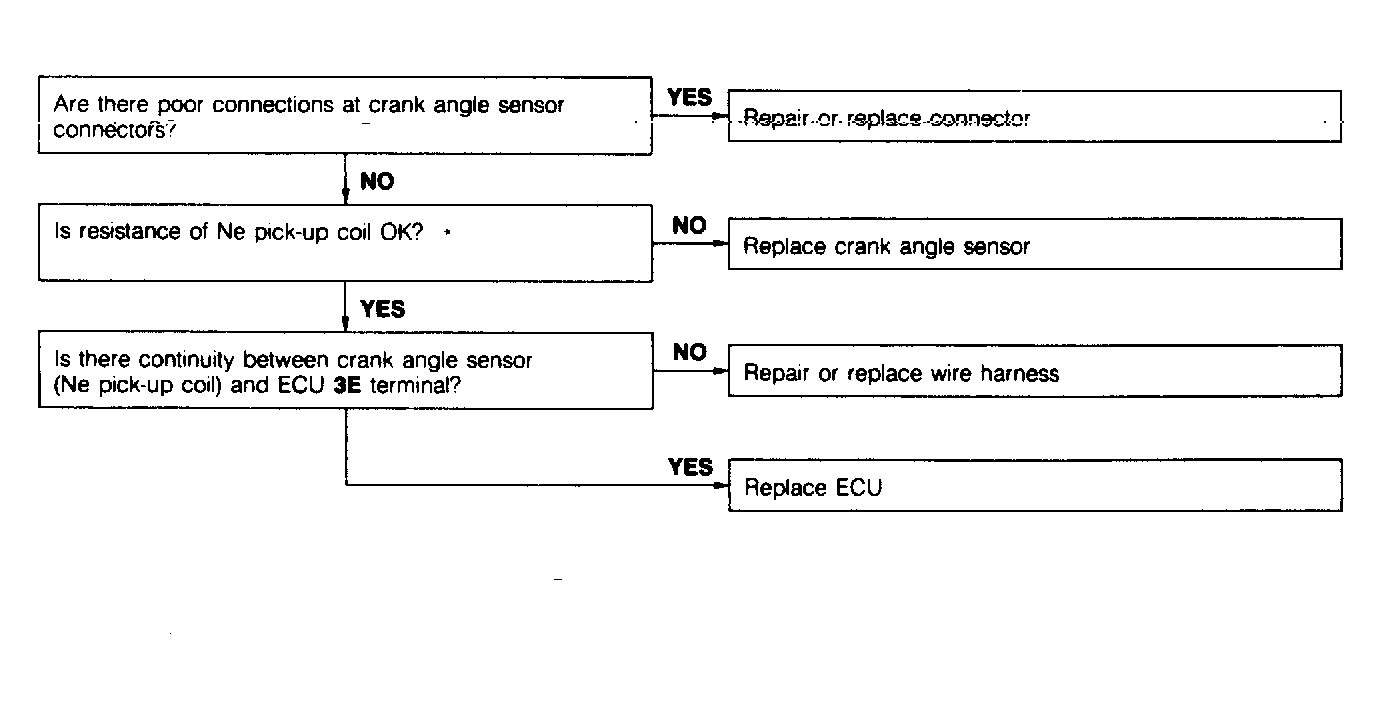

Fig 2: Code No. 2 - Crank Angle Sensor (Ne Signal)

G117704

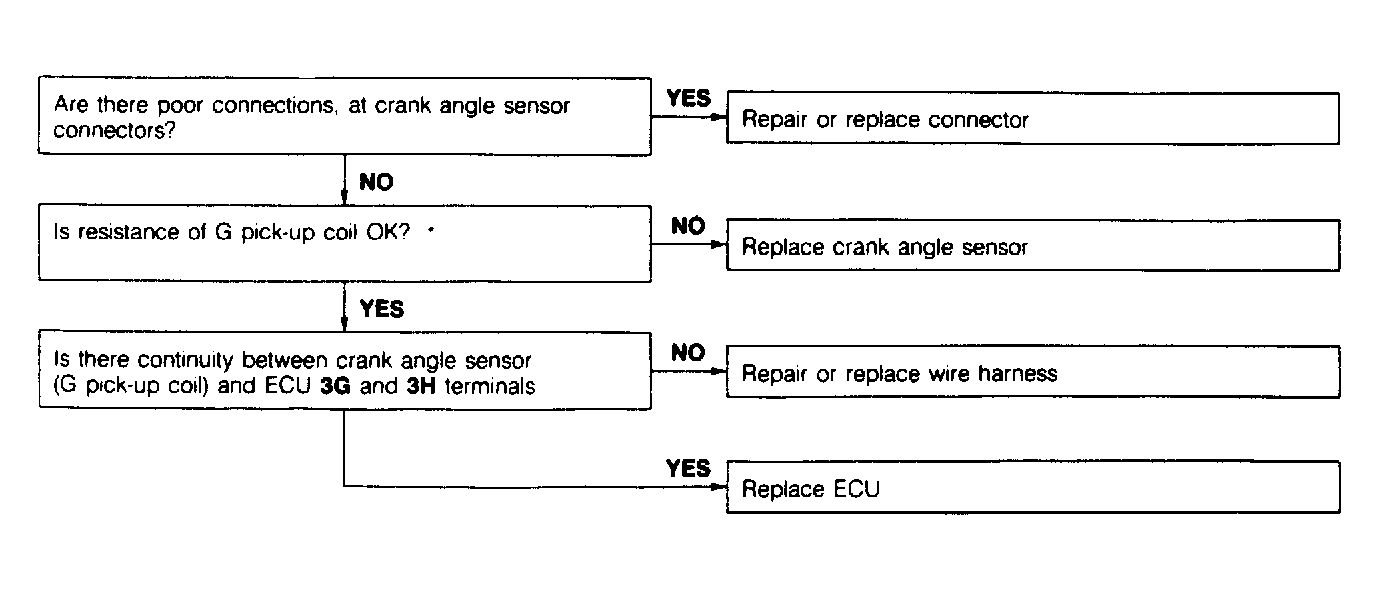

Fig 3: Code No. 3 - Crank Angle Sensor (G Signal)

G117705

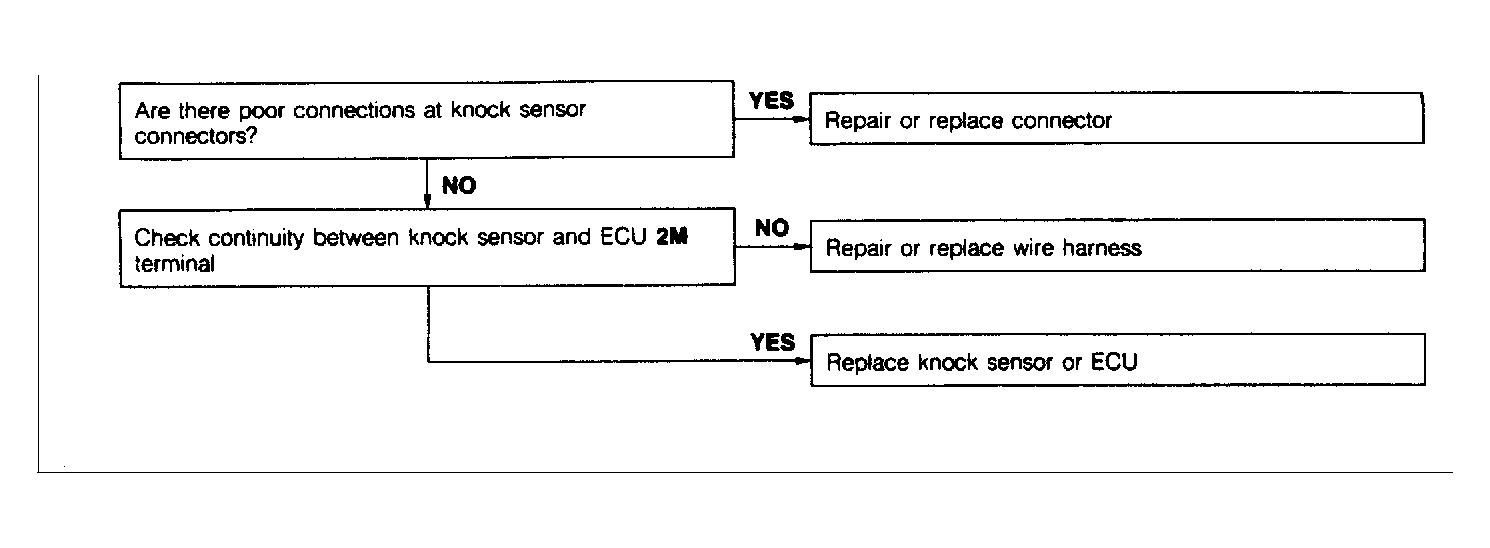

Fig 4: Code No. 5 - Knock Sensor

G117706

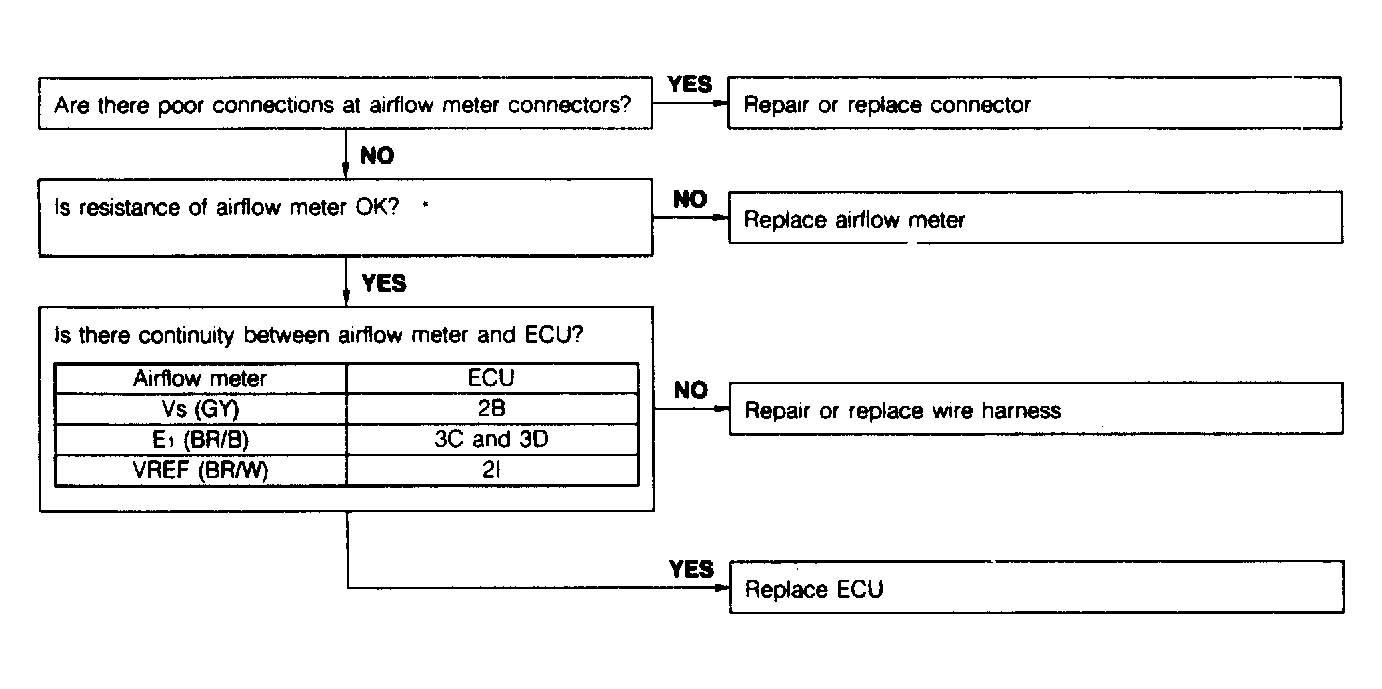

Fig 5: Code No. 8 - Airflow Meter

G117707

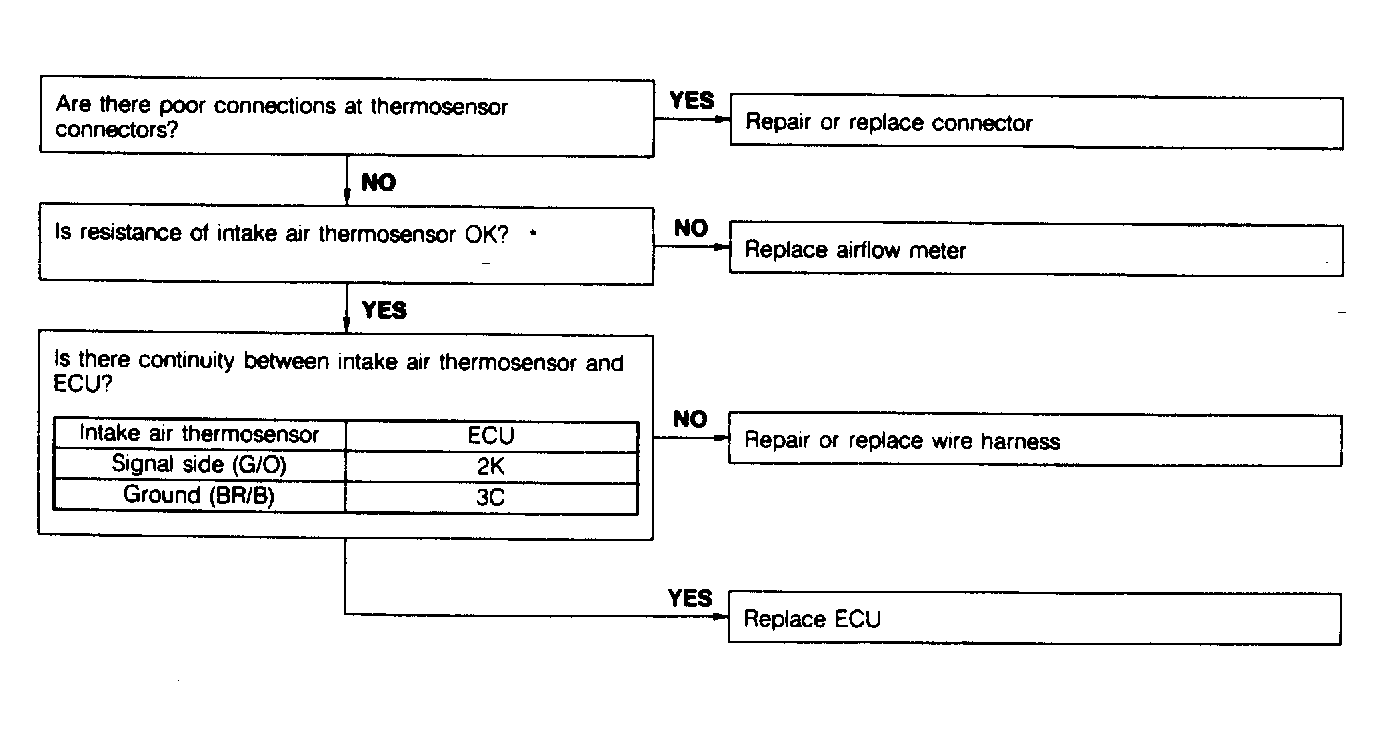

Fig 6: Code No. 10 - Intake Air Thermosensor (AFM)

G117708

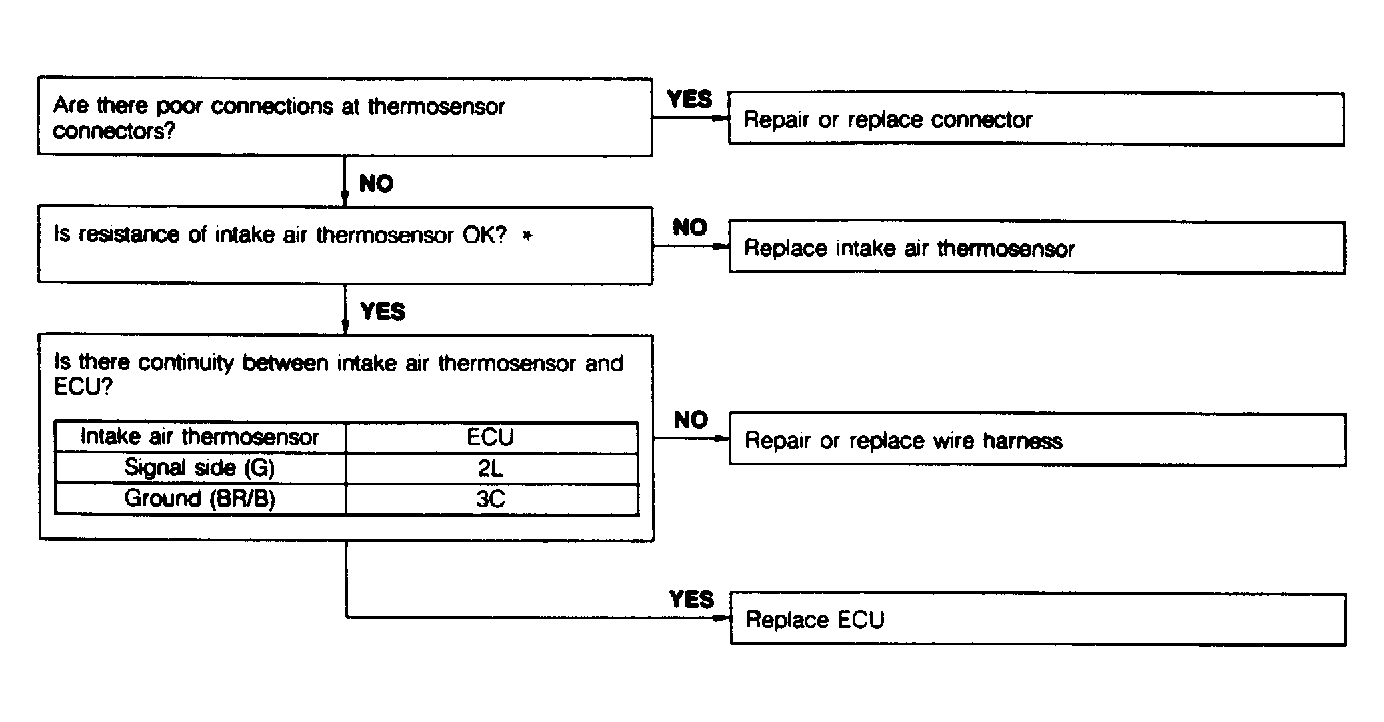

Fig 7: Code No. 11 - Intake Thermosensor (Engine)

G117709

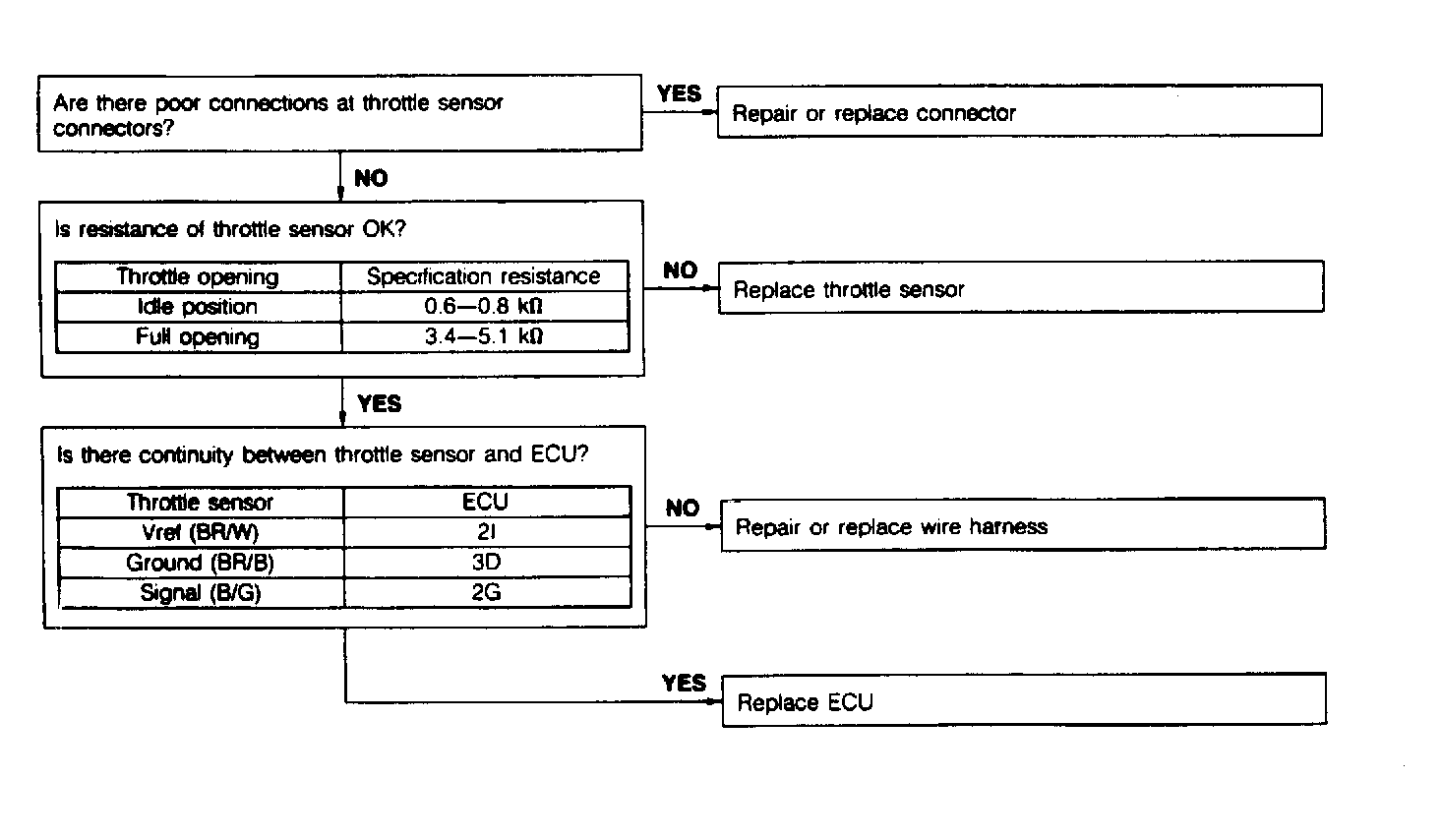

Fig 8: Code No. 12 - Throttle Sensor (Full Range)

G117710

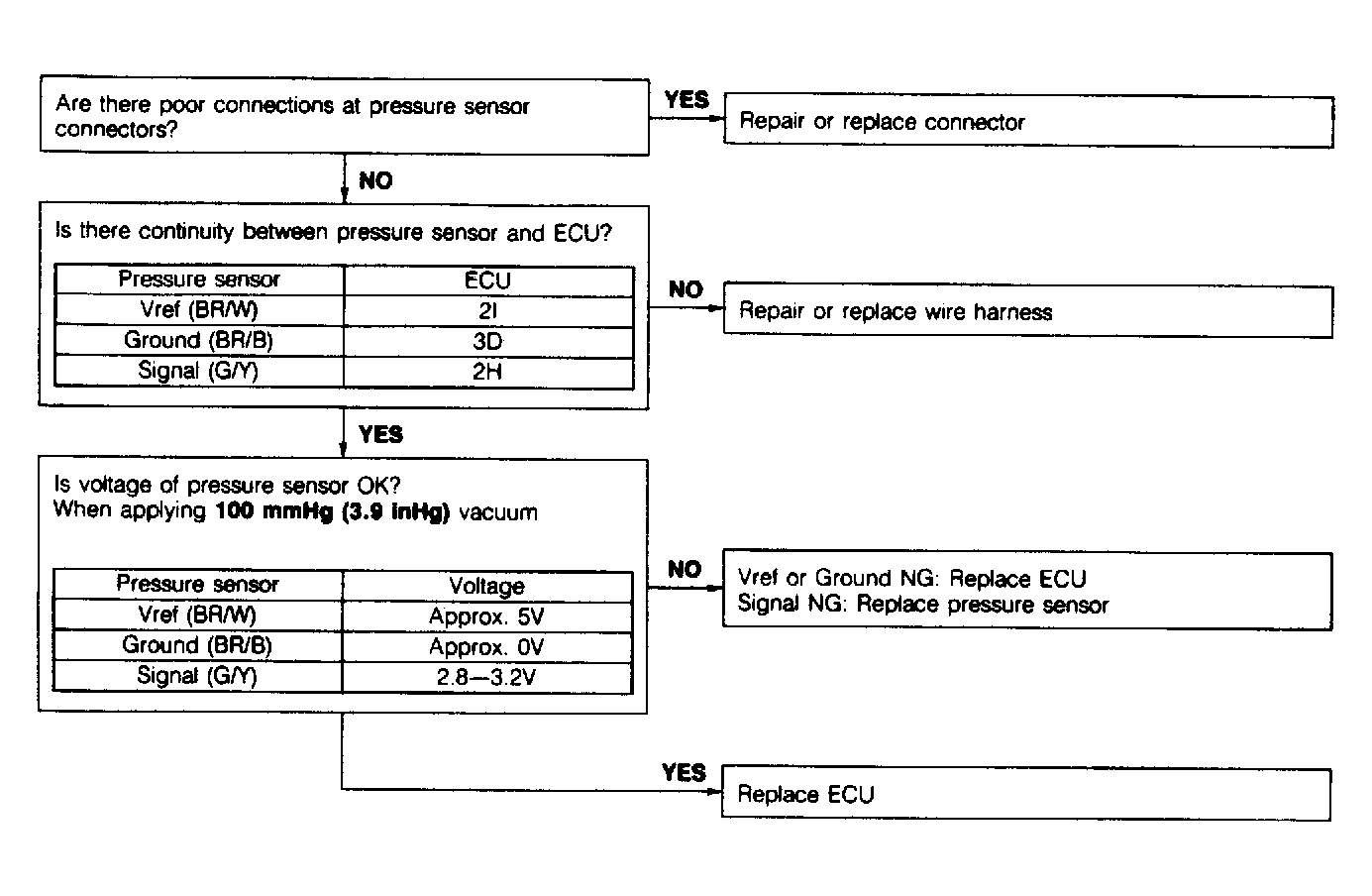

Fig 9: Code No. 13 - Pressure Sensor

G117711

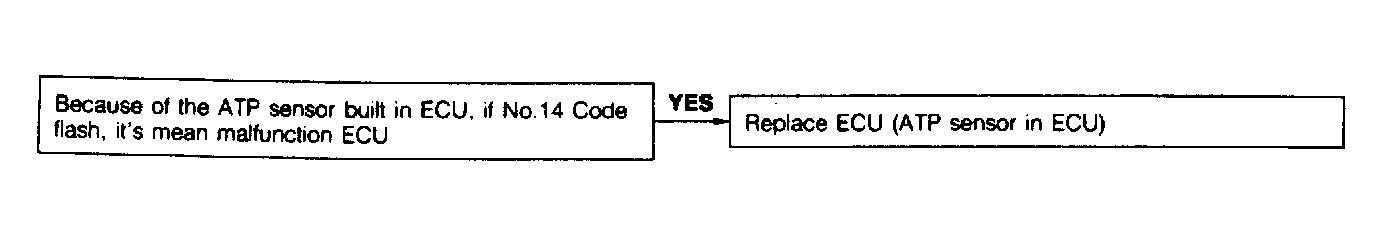

Fig 10: Code No. 14 - Atmospheric Pressure (ATP) Sensor

G117712

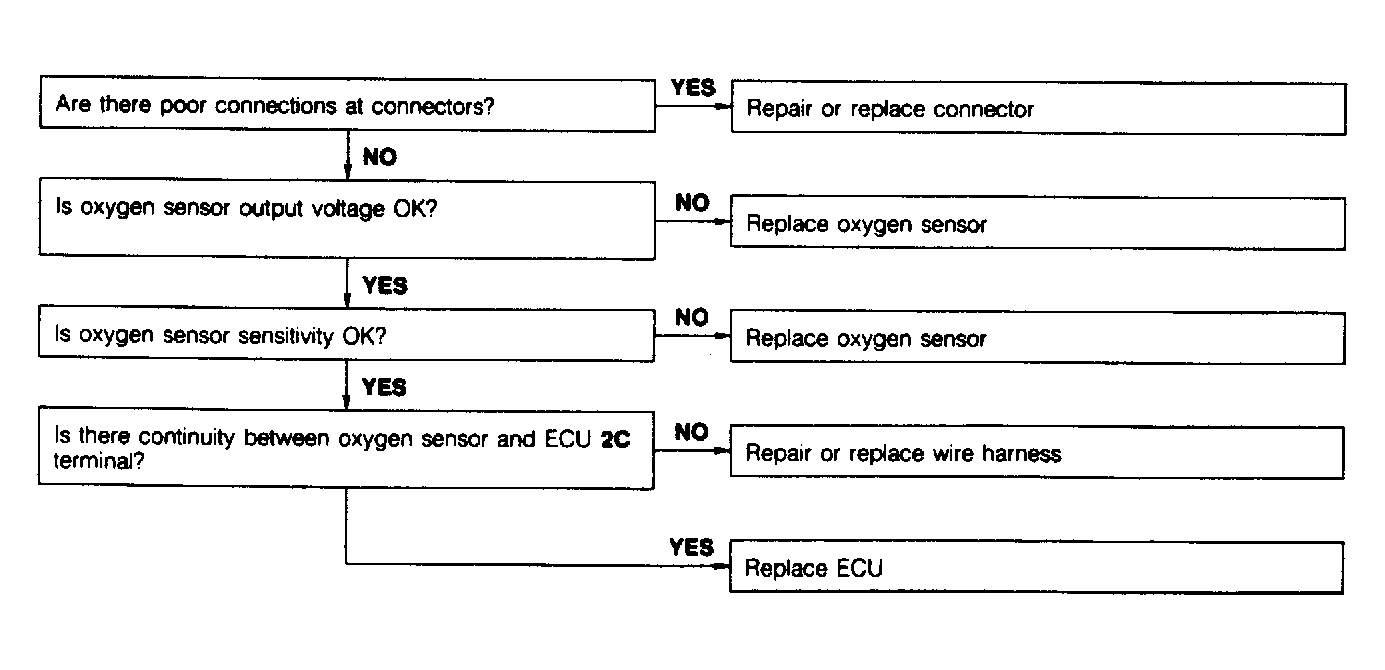

Fig 11: Code No. 15 - Oxygen Sensor

G117713

NOTE: When the code No. 15 and 17 are present at the same time, first perform the checking procedure for Code No. 17.

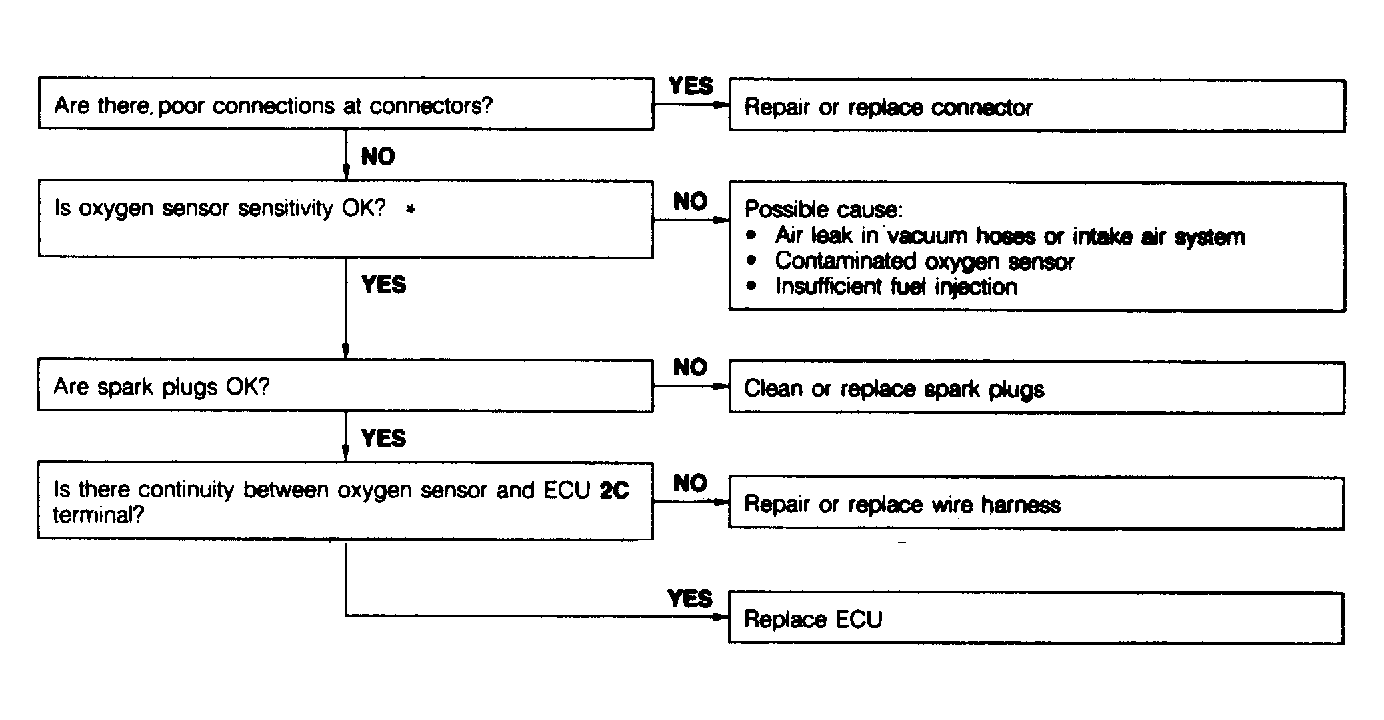

Fig 12: Code No. 17 - Feedback System

G117714

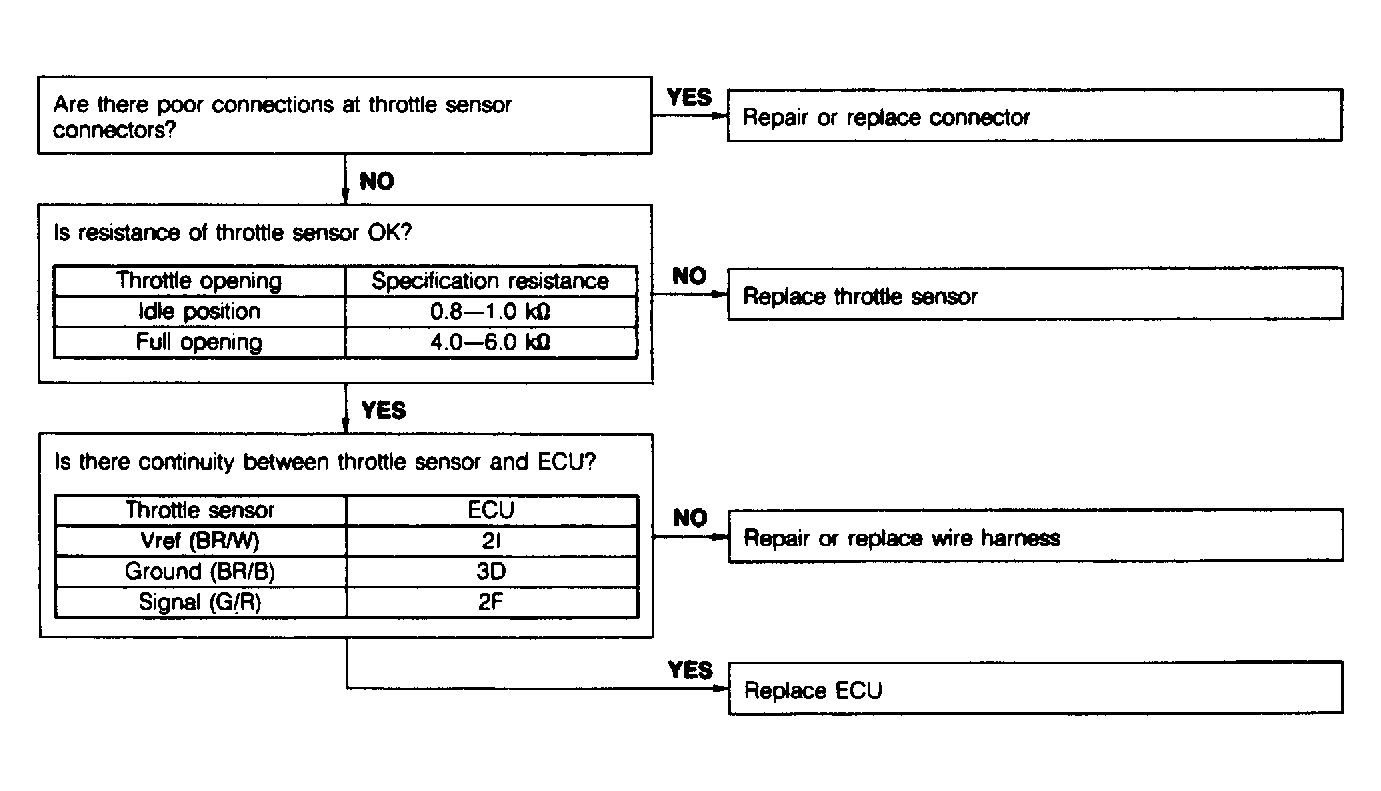

Fig 13: Code No. 18 - Throttle Sensor (Narrow Range)

G117715

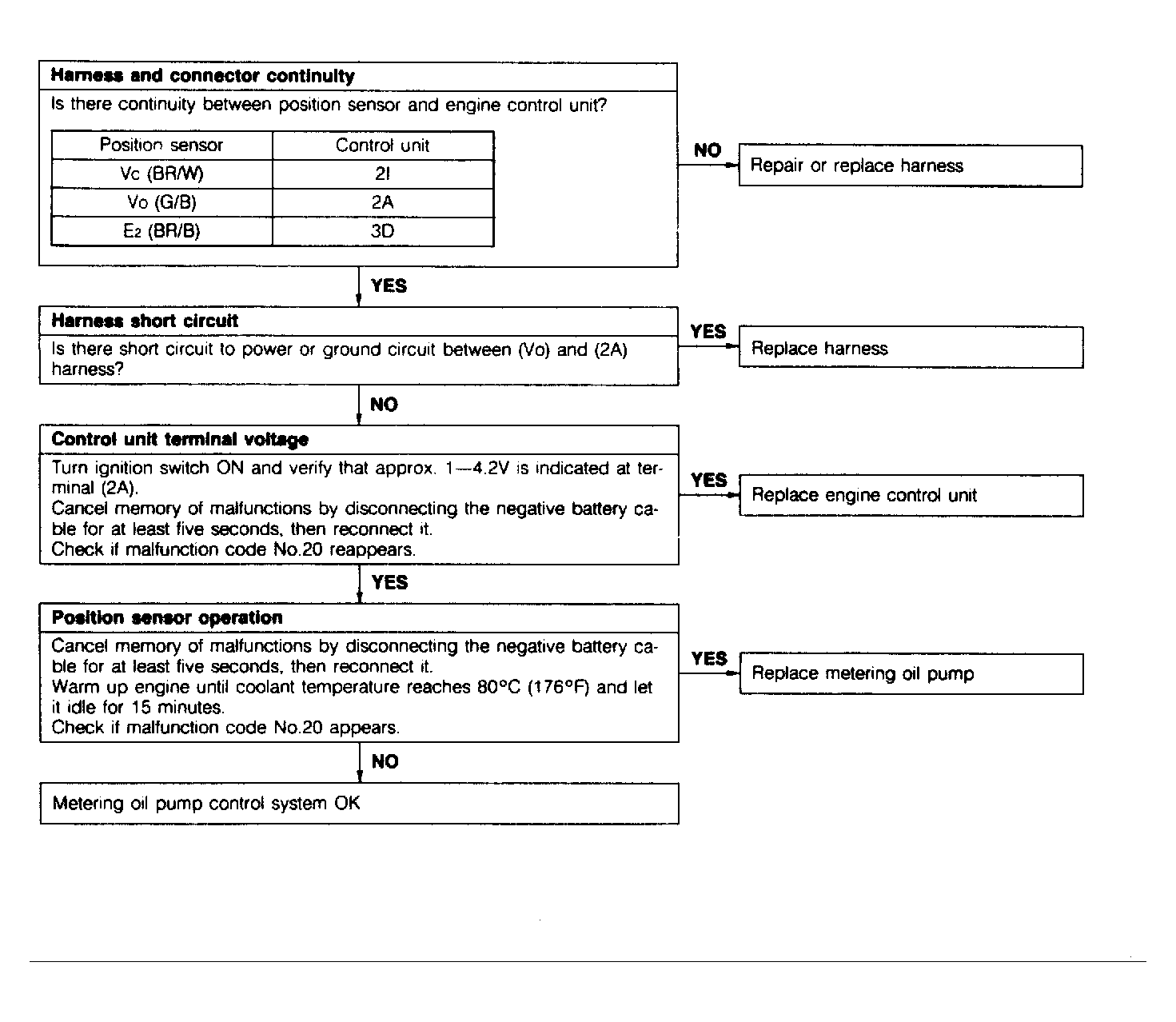

Fig 14: Code No. 20 - Metering Oil Pump Position Sensor

G117716

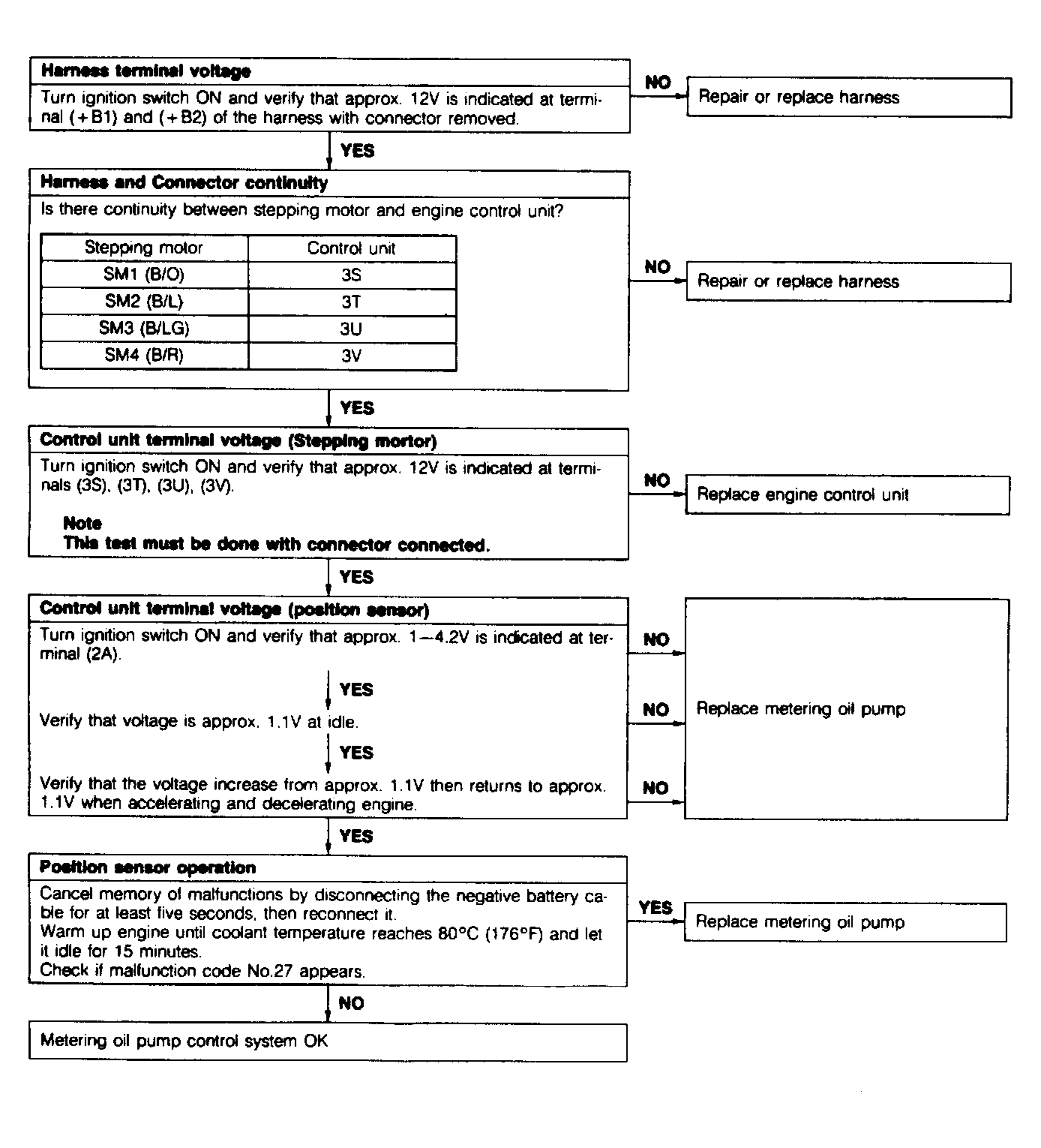

Fig 15: Code No. 27 - Metering Oil Pump

G117717

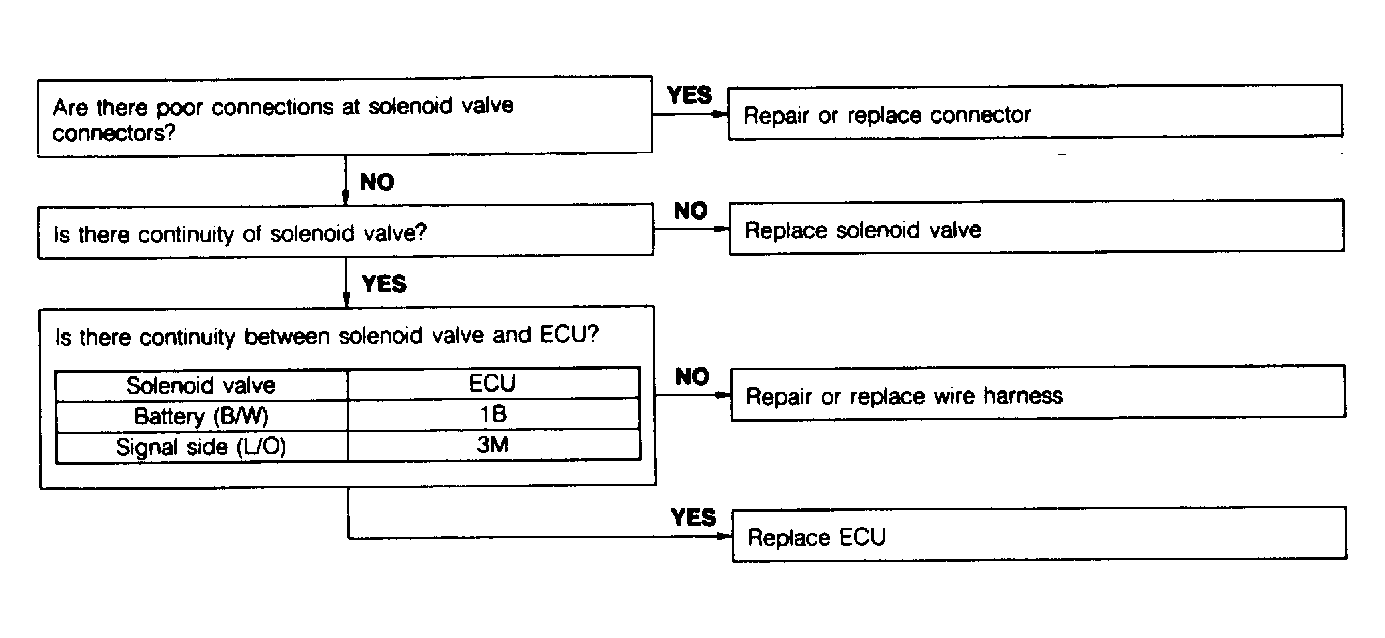

Fig 16: Code No. 25 - Solenoid Valve (PRC)

G117718

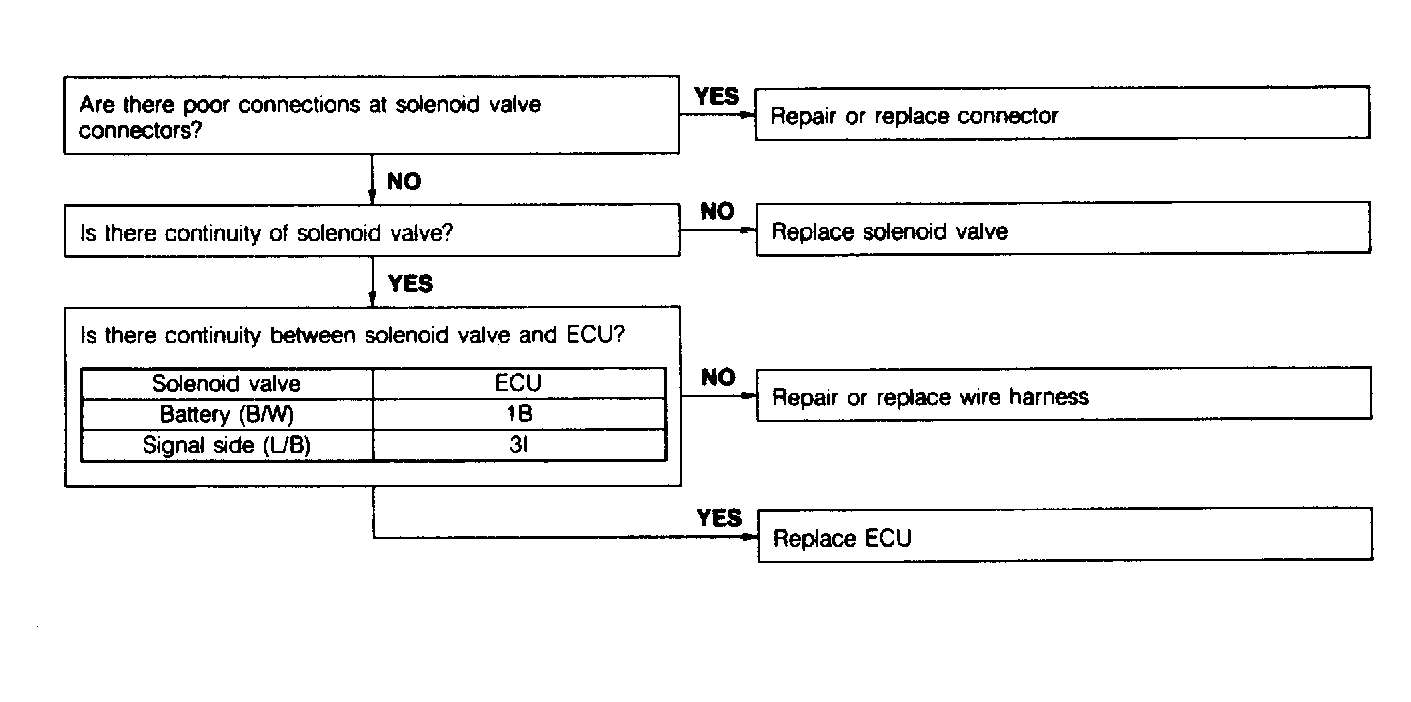

Fig 17: Code No. 30 - Split Air Solenoid Valve

G117719

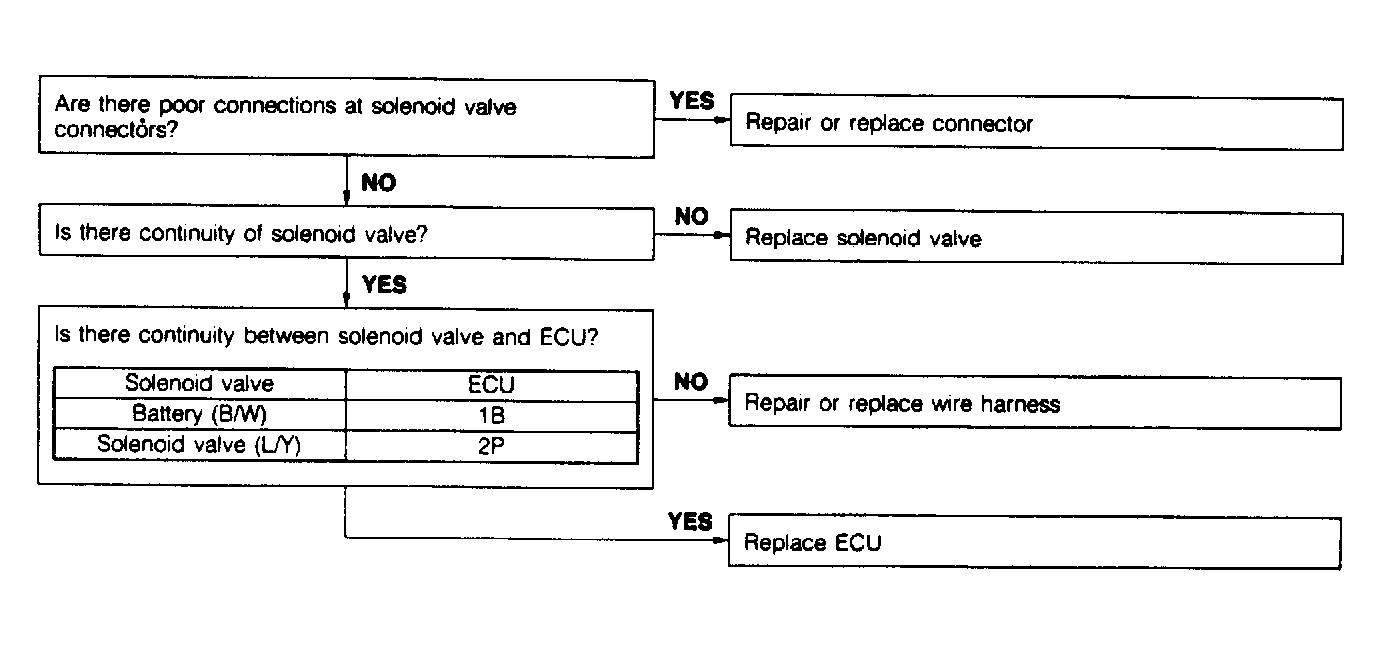

Fig 18: Code No. 31 - Solenoid Valve (Relief)

G117720

Fig 19: Code No. 32 - Solenoid Valve (Switch)

G117721

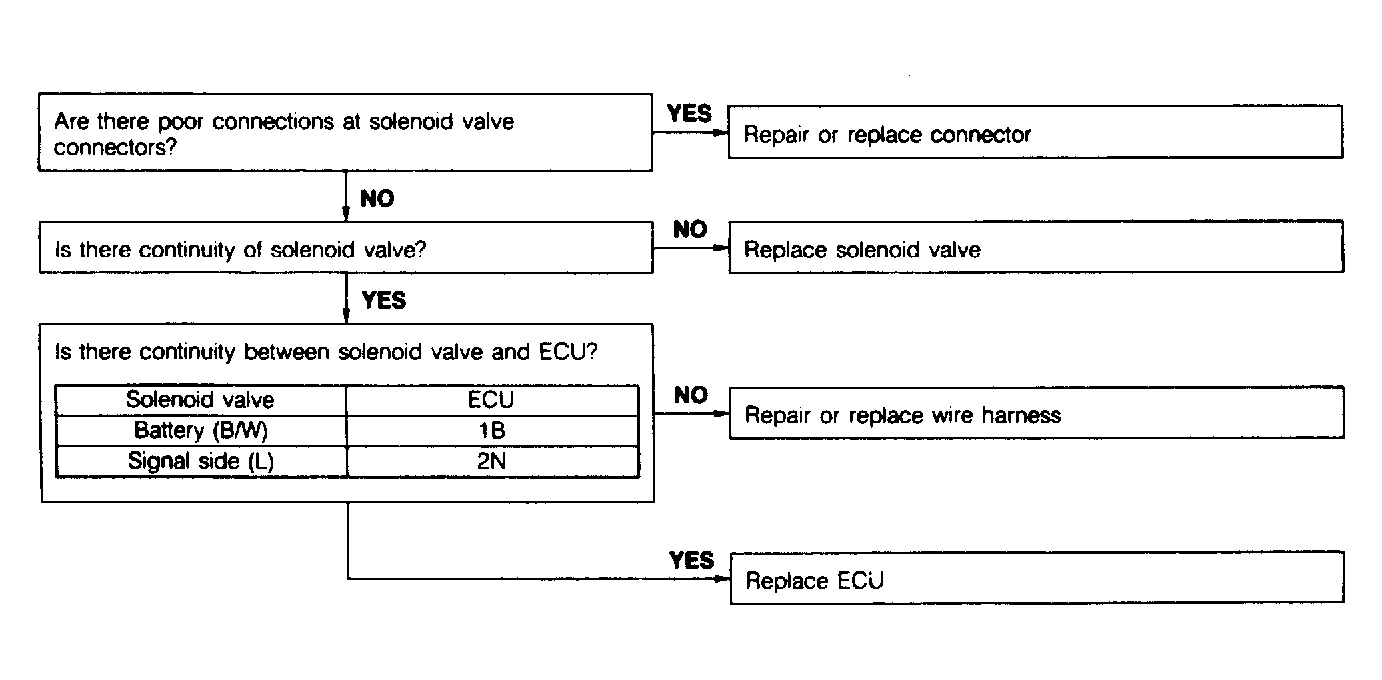

Fig 20: Code No. 33 - Port Air Solenoid Valve

G117722

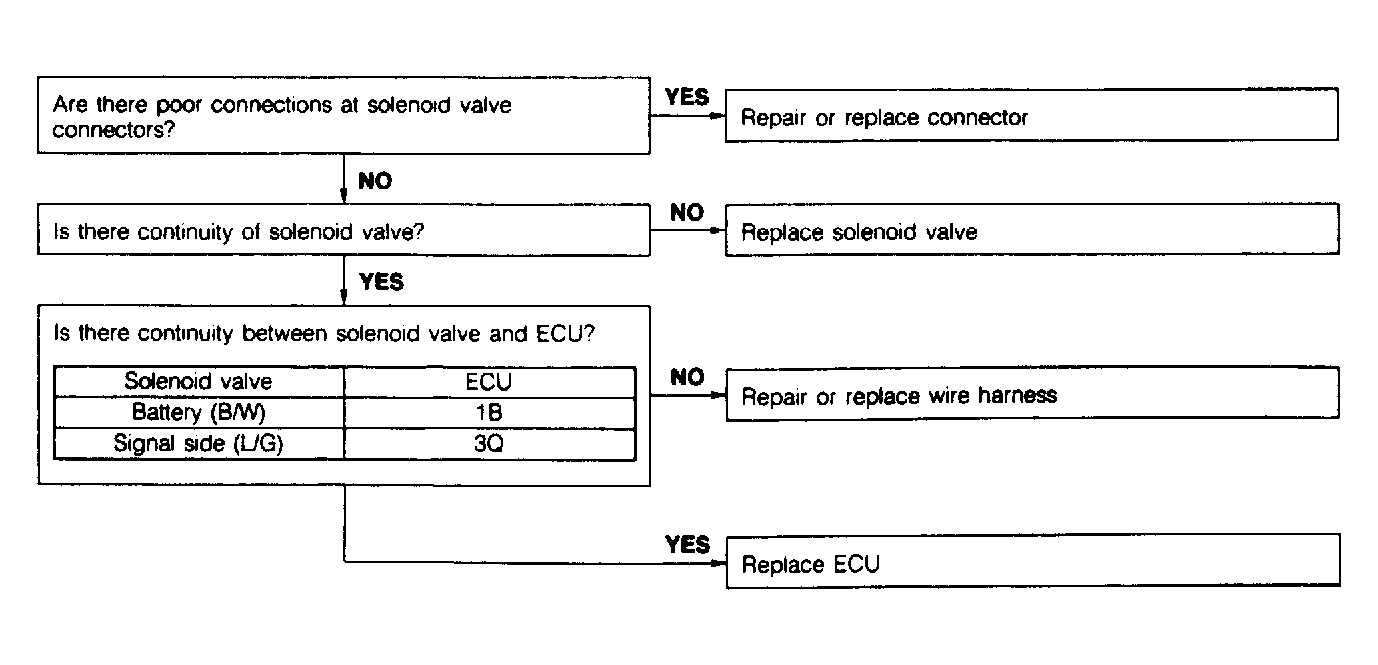

Fig 21: Code No. 34 - Solenoid Valve (BAC)

G117723

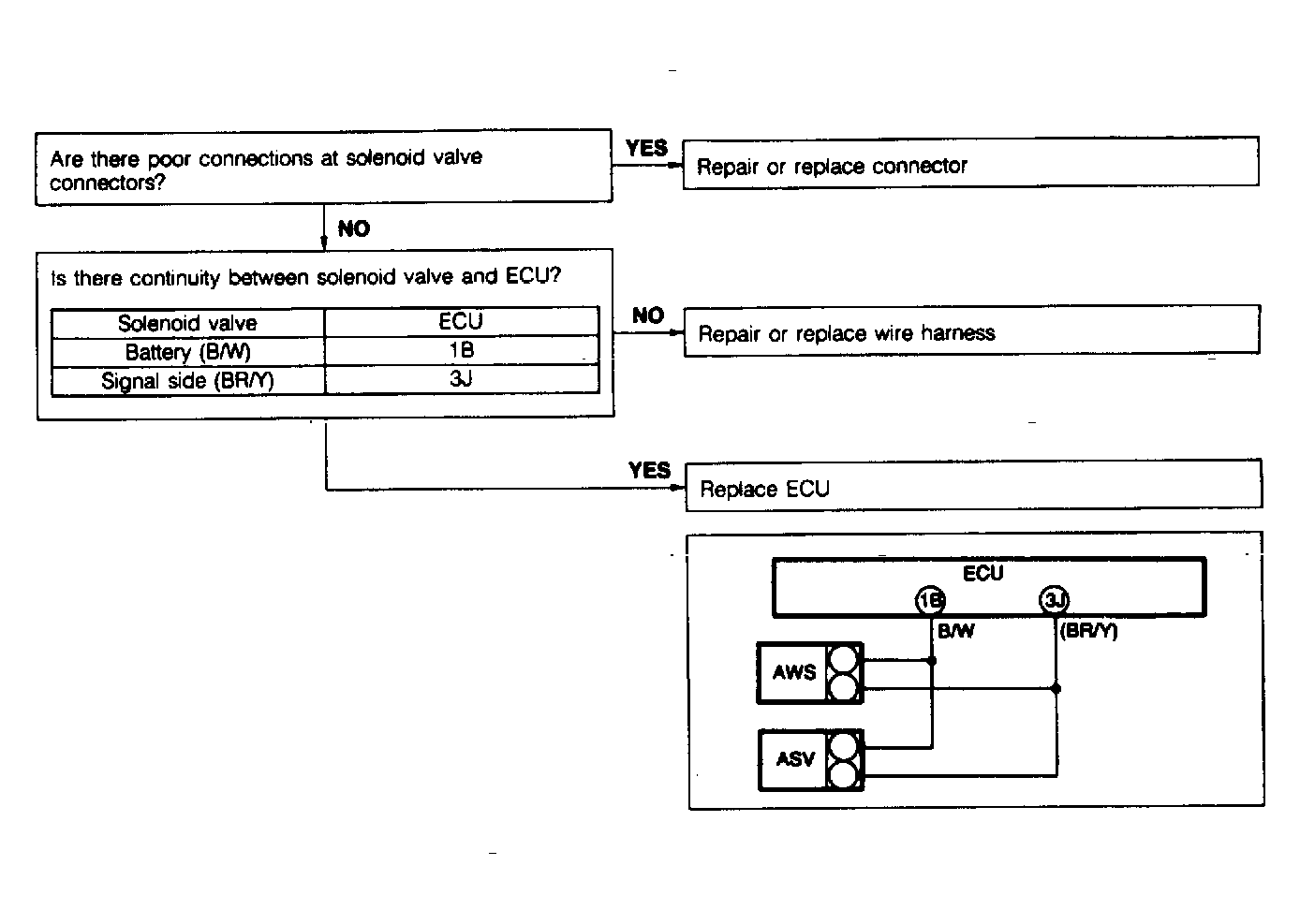

Fig 22: Code No. 38 - Solenoid Valve (AWS & ASV)

G117724

Fig 23: Code No. 42 - Duty Solenoid (Turbo Boost Pressure Control)

G117725

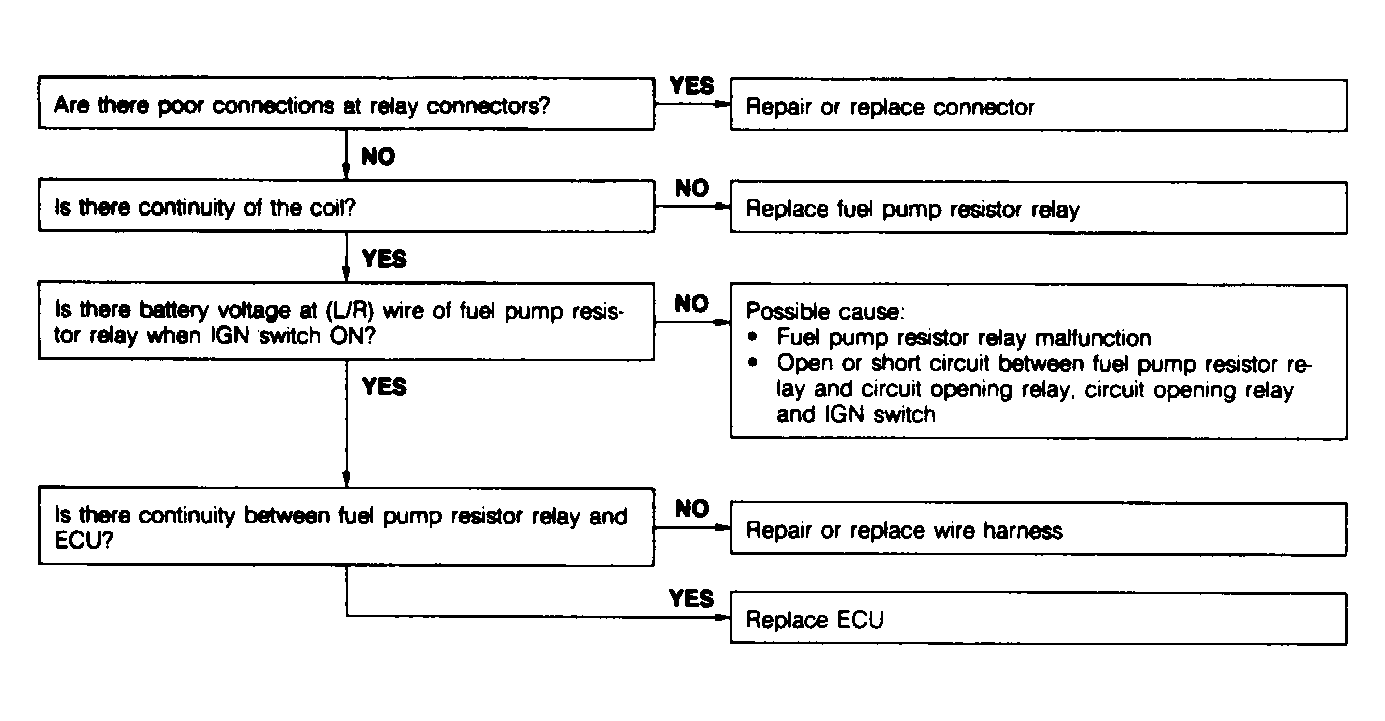

Fig 24: Code No. 51 - Fuel Pump Resistor Relay

G117726

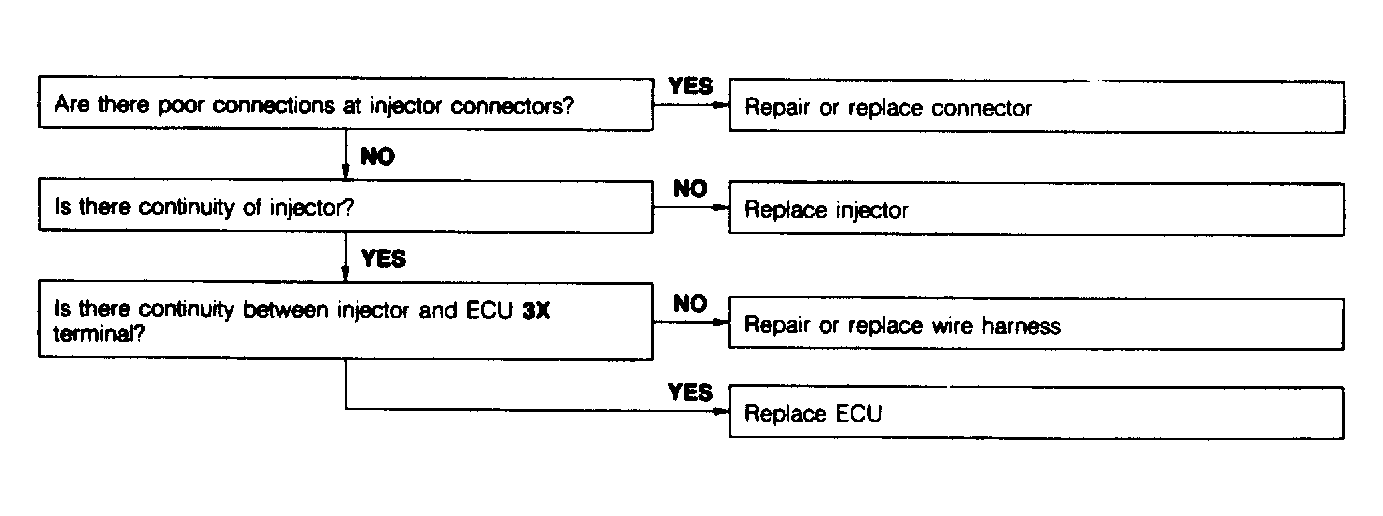

Fig 25: Code No. 71 - Injector (Front Secondary)

G117727

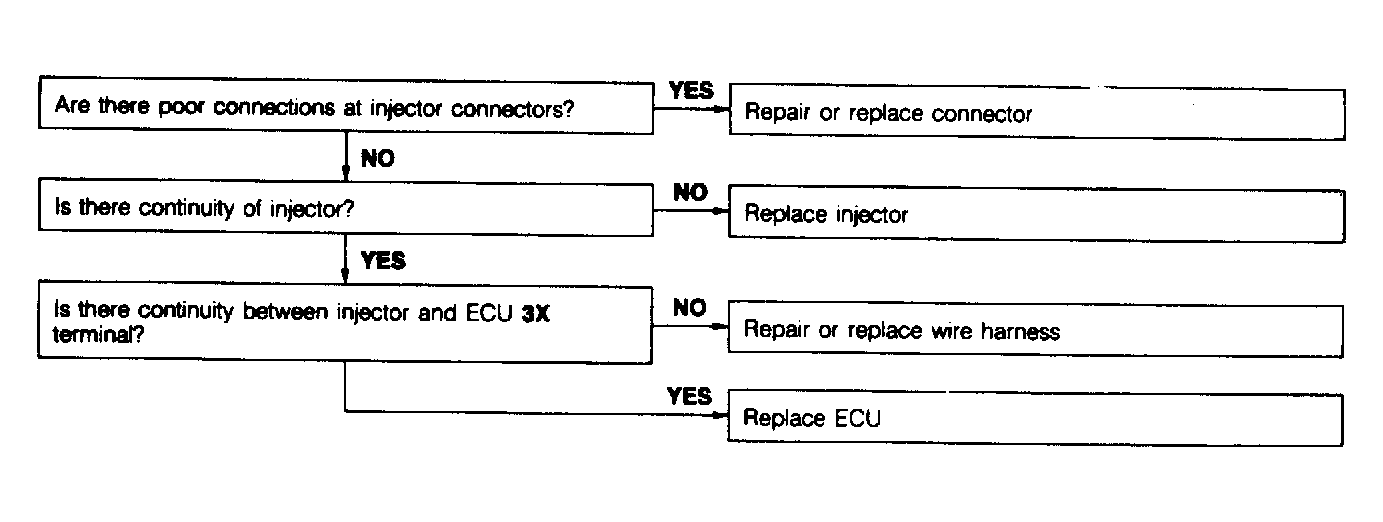

Fig 26: Code No. 73 - Injector (Rear Secondary)

G117728
