Sub-Switch Test

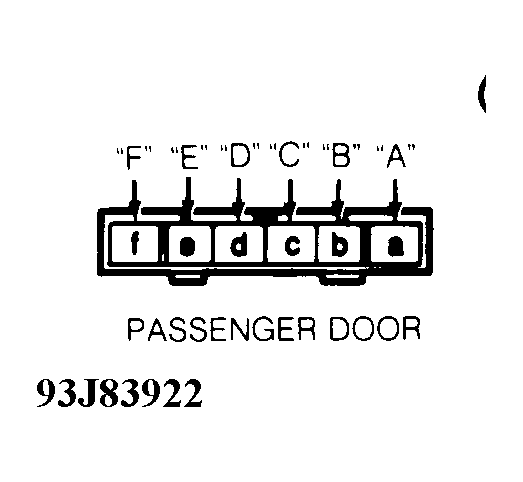

Check continuity across specified terminals of sub-switch connector with switch button held in specified position. See SUB-SWITCH CONTINUITY TEST table. See Fig 1 . Replace sub-switch if continuity is not as specified.
SUB-SWITCH CONTINUITY TEST
| Application & Switch Position | Terminals | |
|---|---|---|
| Passenger | ||
| UP | A & F; B & D | |
| Off (Neutral) | B & D; E & F | |
| DOWN | A & B; E & F | |
