Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

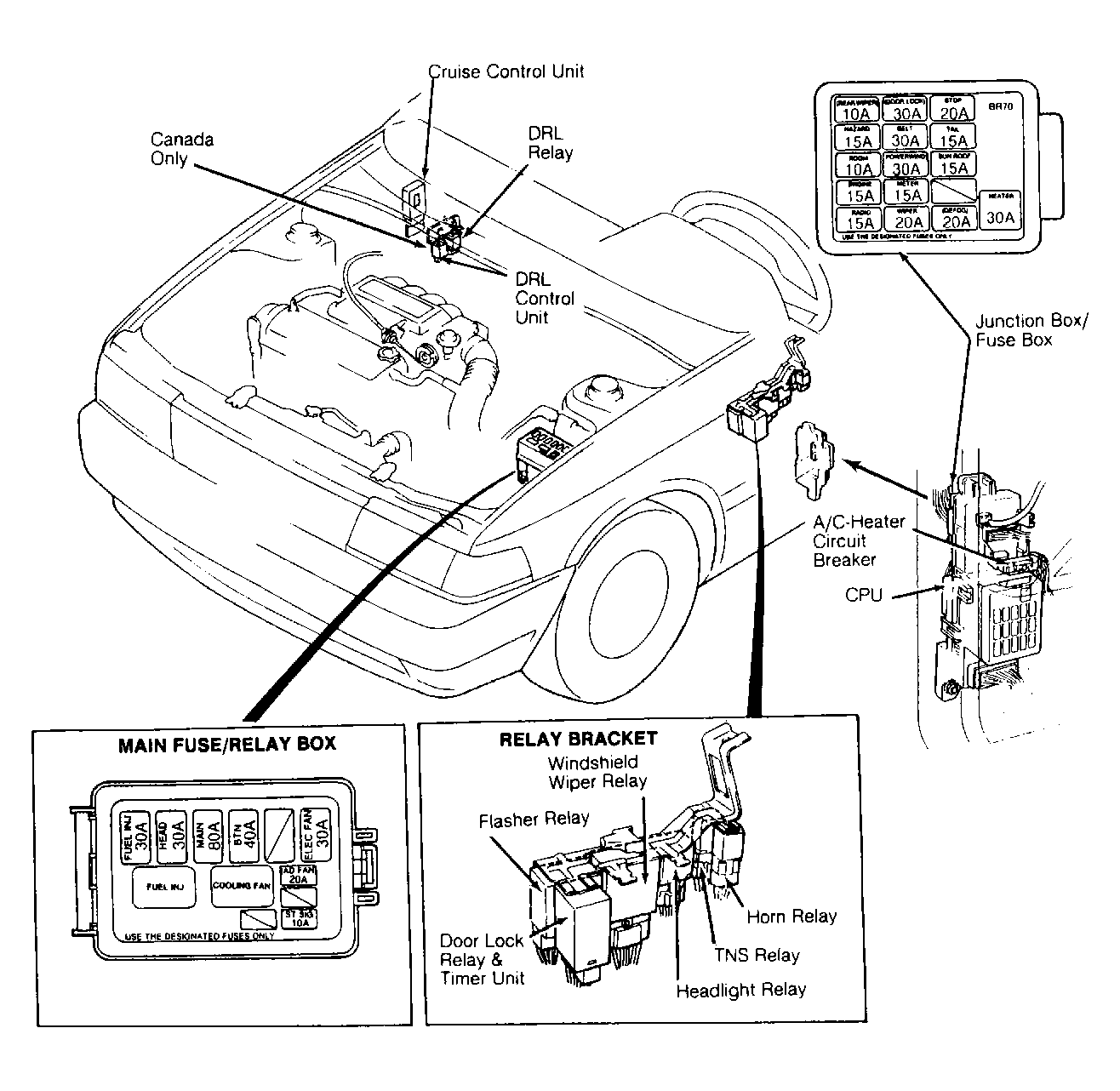

| A/C-Heater Blower Motor Circuit Breaker | In center of junction box, near left kick panel. | |
| Fuse Boxes | ||

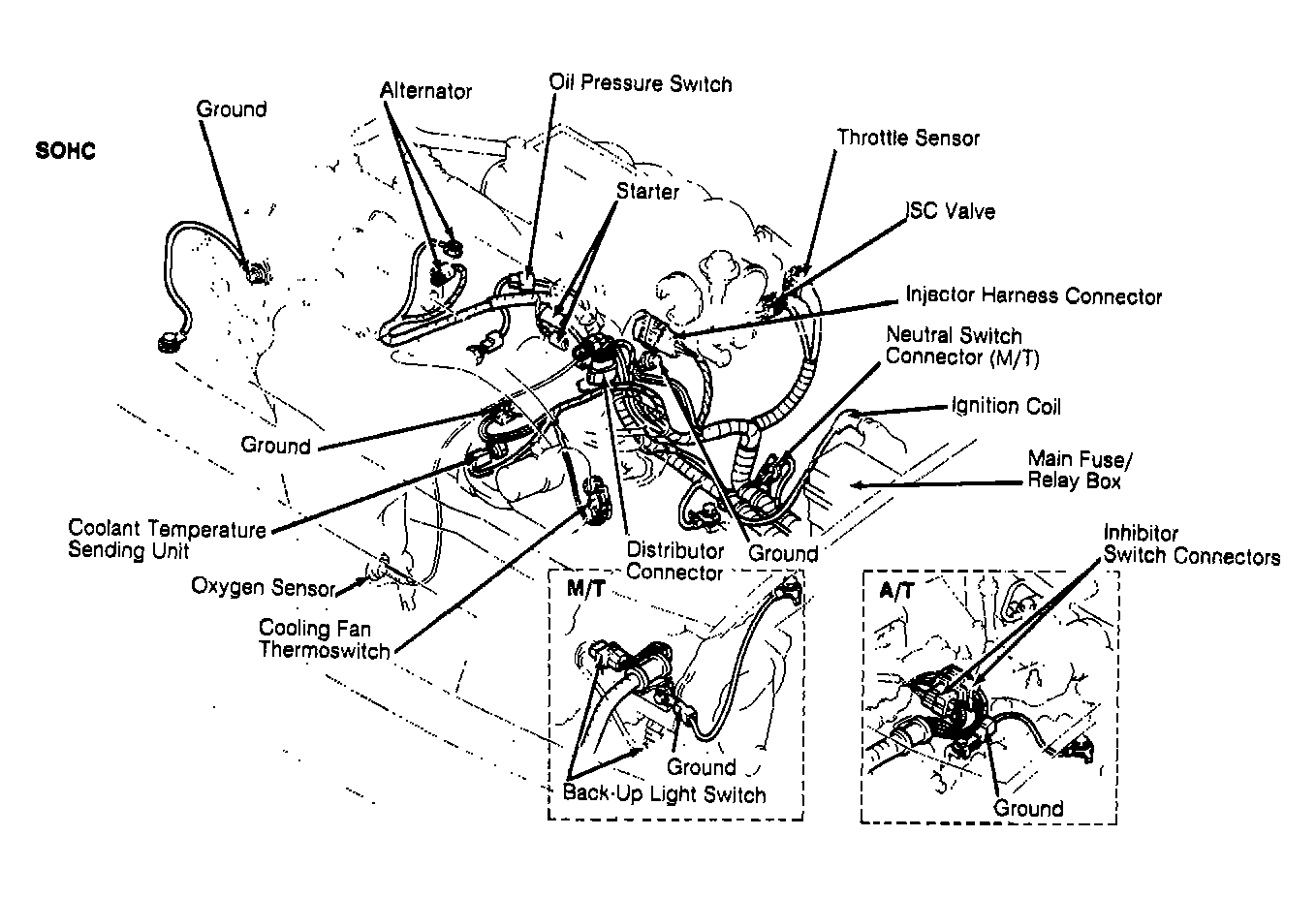

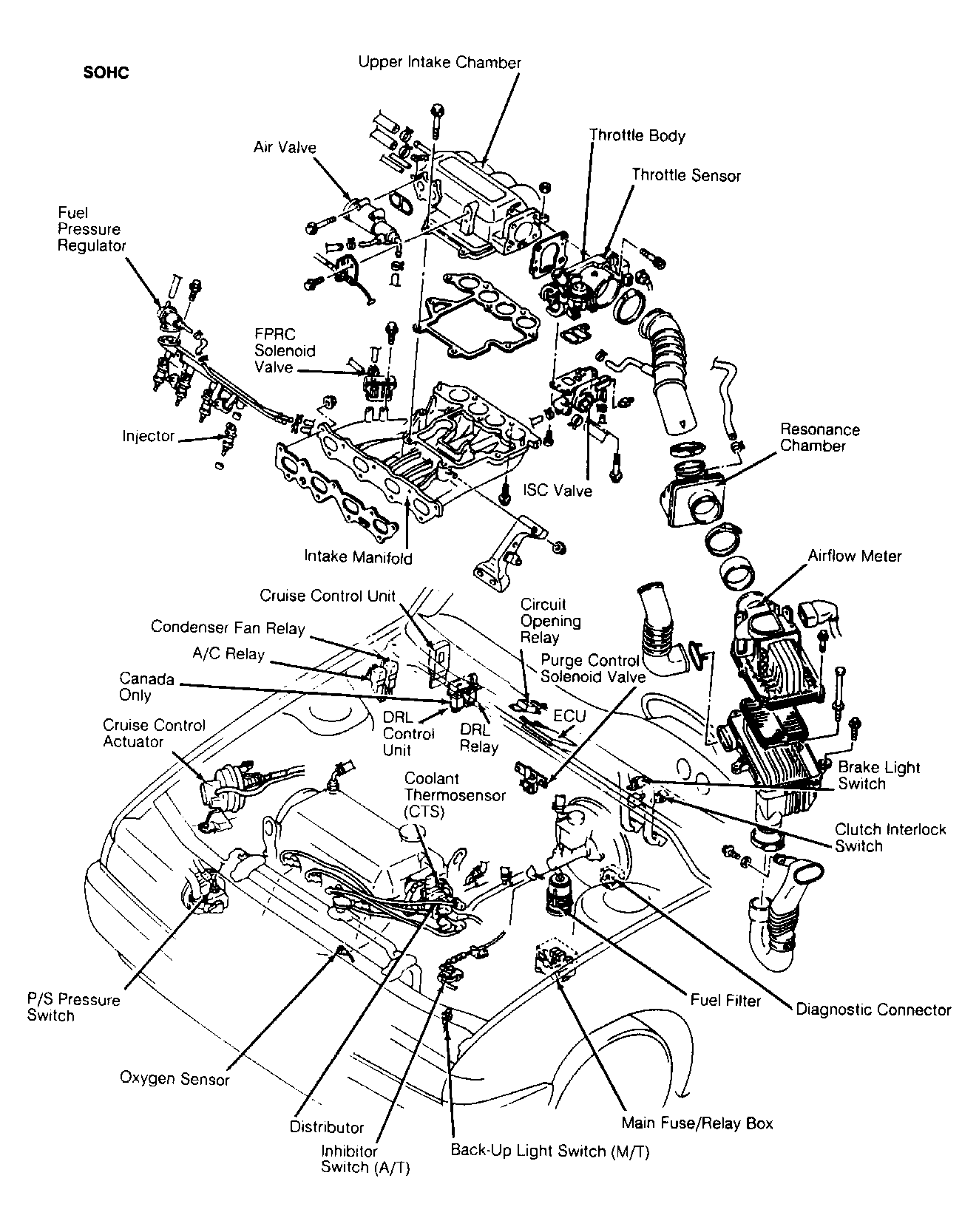

| Engine Compartment | On left front fender apron. See Figure - Figure . | |
| Passenger Compartment/Joint Box | Behind left kick panel. See Figure . | |
| Relay Bracket | Bracket under left side of dash, by steering column. See Figure . | |
