Code 10: Intake Air THERMOSENSOR

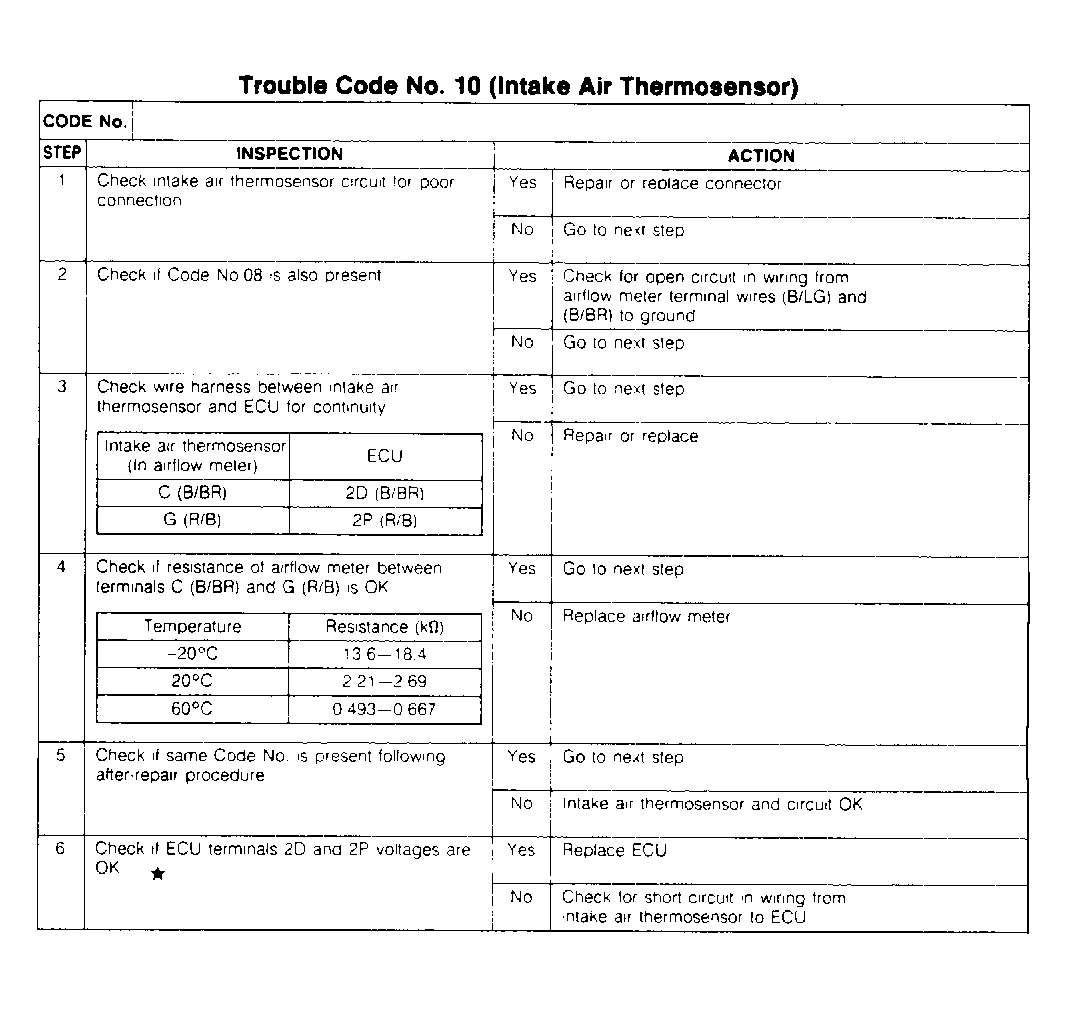

Fig 1: Code 10: Intake Air Thermosensor Chart
G90C21511Courtesy of MAZDA MOTORS CORP.

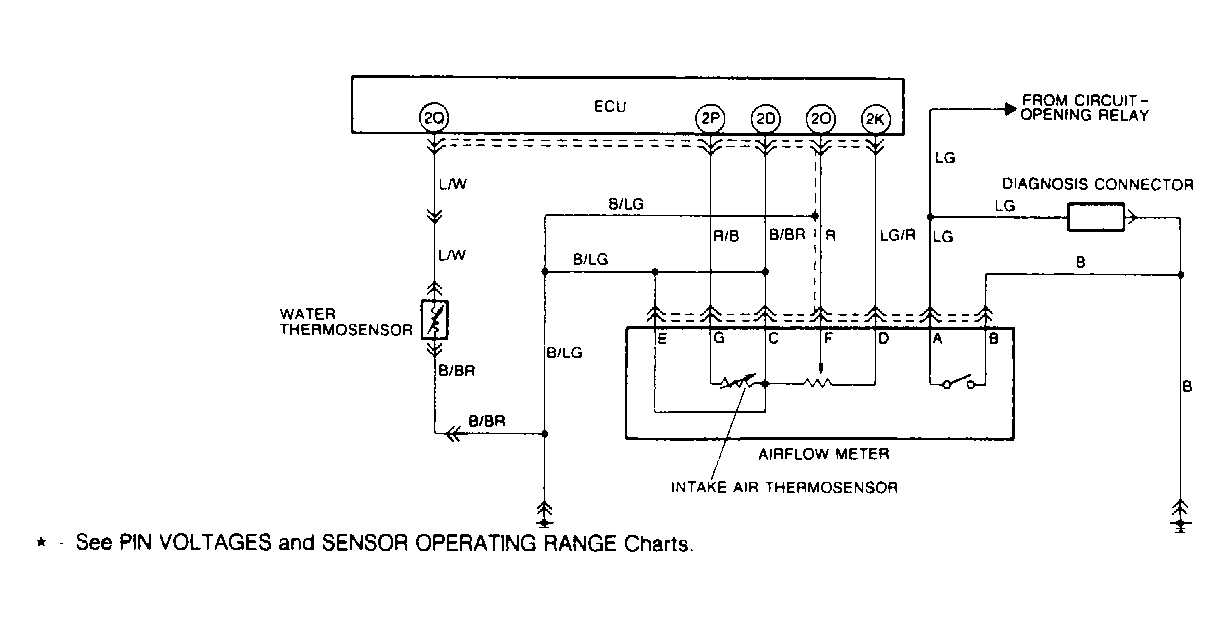

Fig 2: Code 10: Intake Air Thermosensor Circuit Diagram
G90D21645Courtesy of MAZDA MOTORS CORP.
