Code 15: Oxygen Sensor

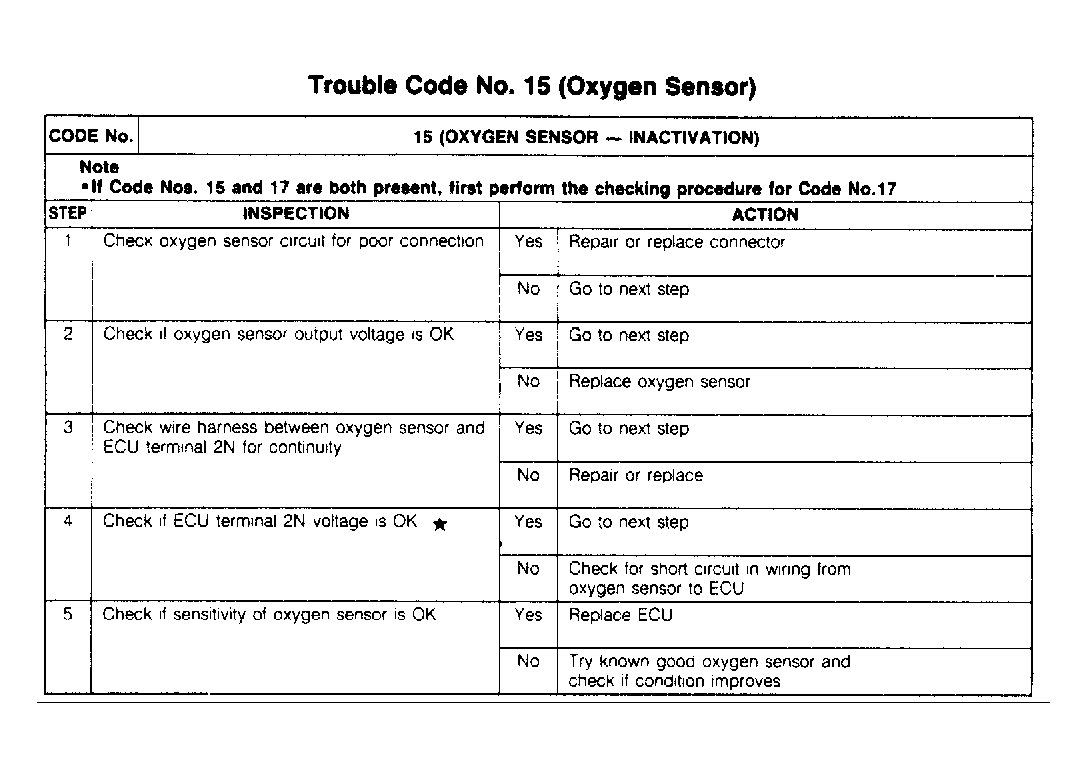

Fig 1: Code 15: Oxygen Sensor Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
