Code 17: Feedback System

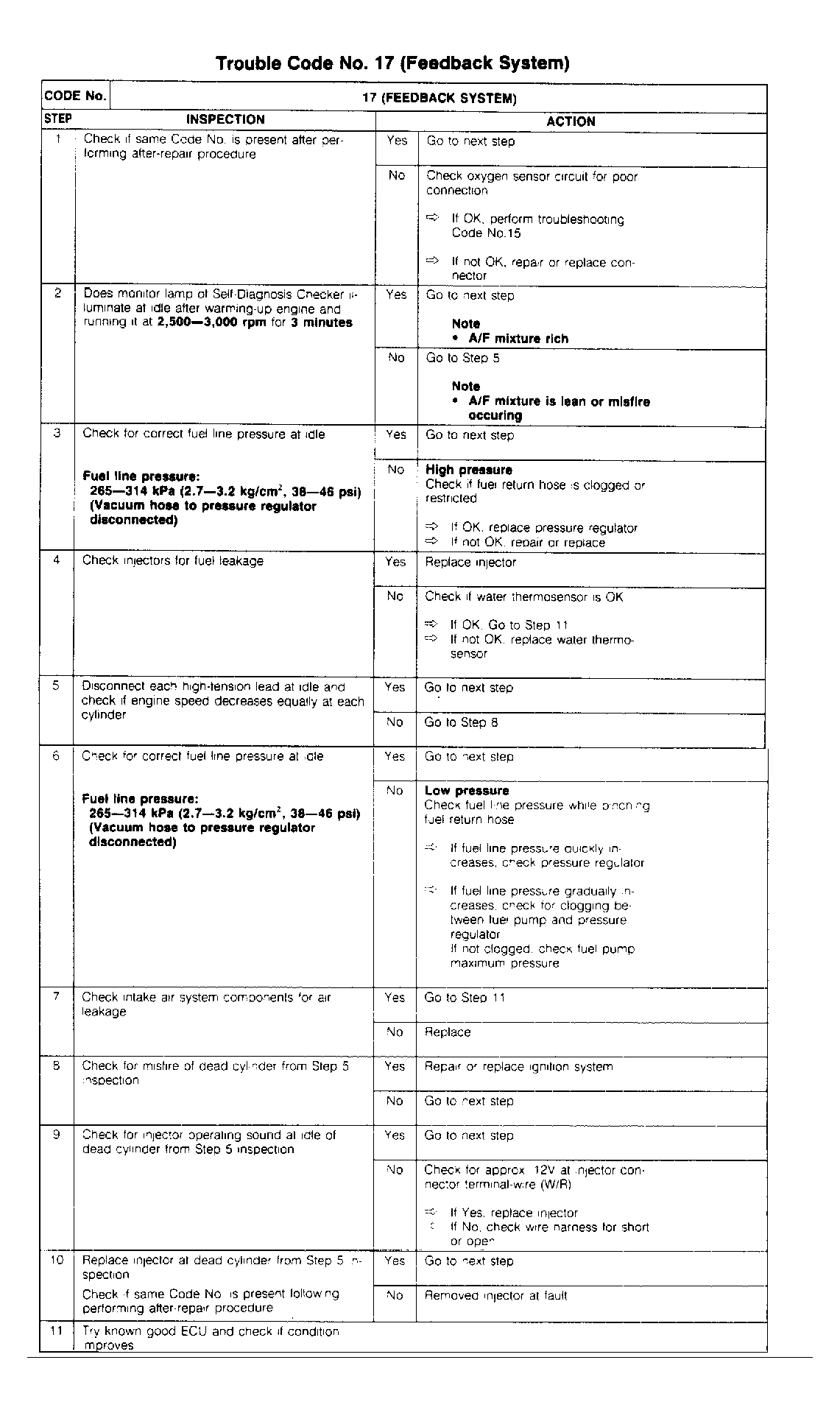

Fig 1: Code 17: Feedback System Chart
G90G21515Courtesy of MAZDA MOTORS CORP.

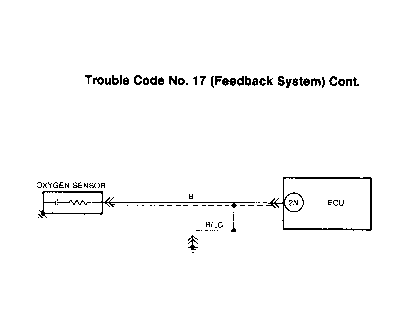

Fig 2: Code 17: Feedback System Circuit Diagram
G90G21648Courtesy of MAZDA MOTORS CORP.
