Code 25: Pressure Regulator Solenoid Valve

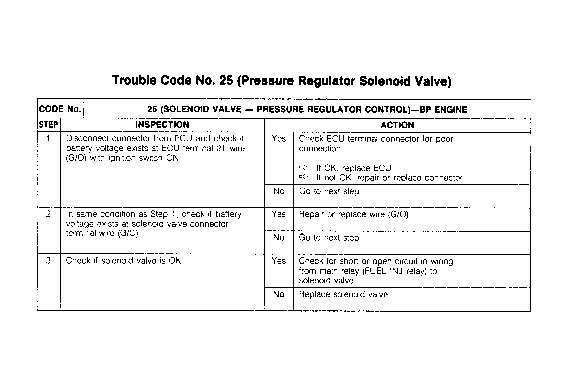

Fig 1: Code 25: Pressure Regulator Solenoid Valve Chart
G90H21516Courtesy of MAZDA MOTORS CORP.

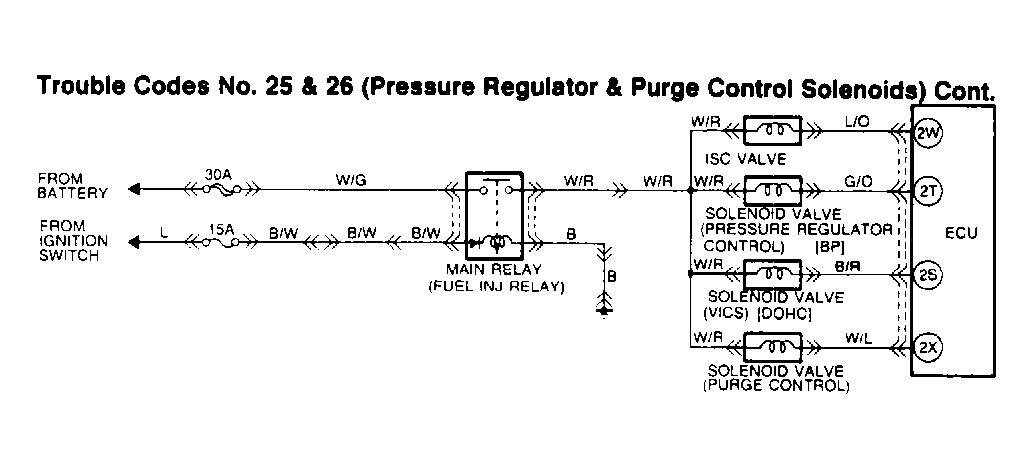

Fig 2: Code 25: Pressure Regulator Solenoid Valve Chart
G90H21649Courtesy of MAZDA MOTORS CORP.
