Code 26: Purge Solenoid Valve

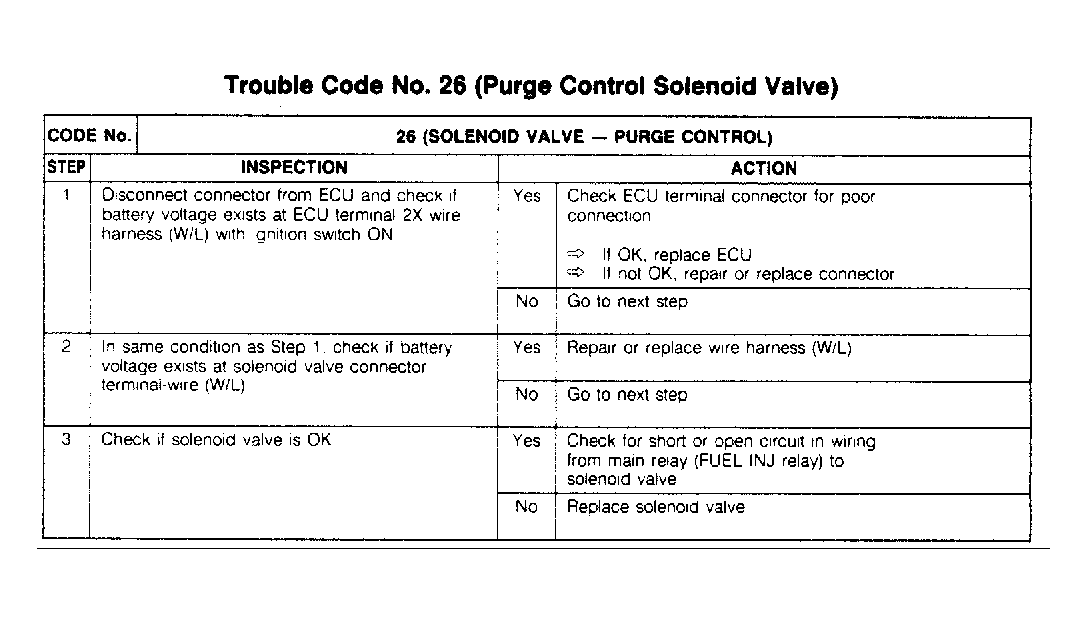

Fig 1: Code 26: Purge Solenoid Valve Chart
G90I21517Courtesy of MAZDA MOTORS CORP.
Fig 2: Code 26: Purge Solenoid Valve Circuit Diagram
G90H21649Courtesy of MAZDA MOTORS CORP.
